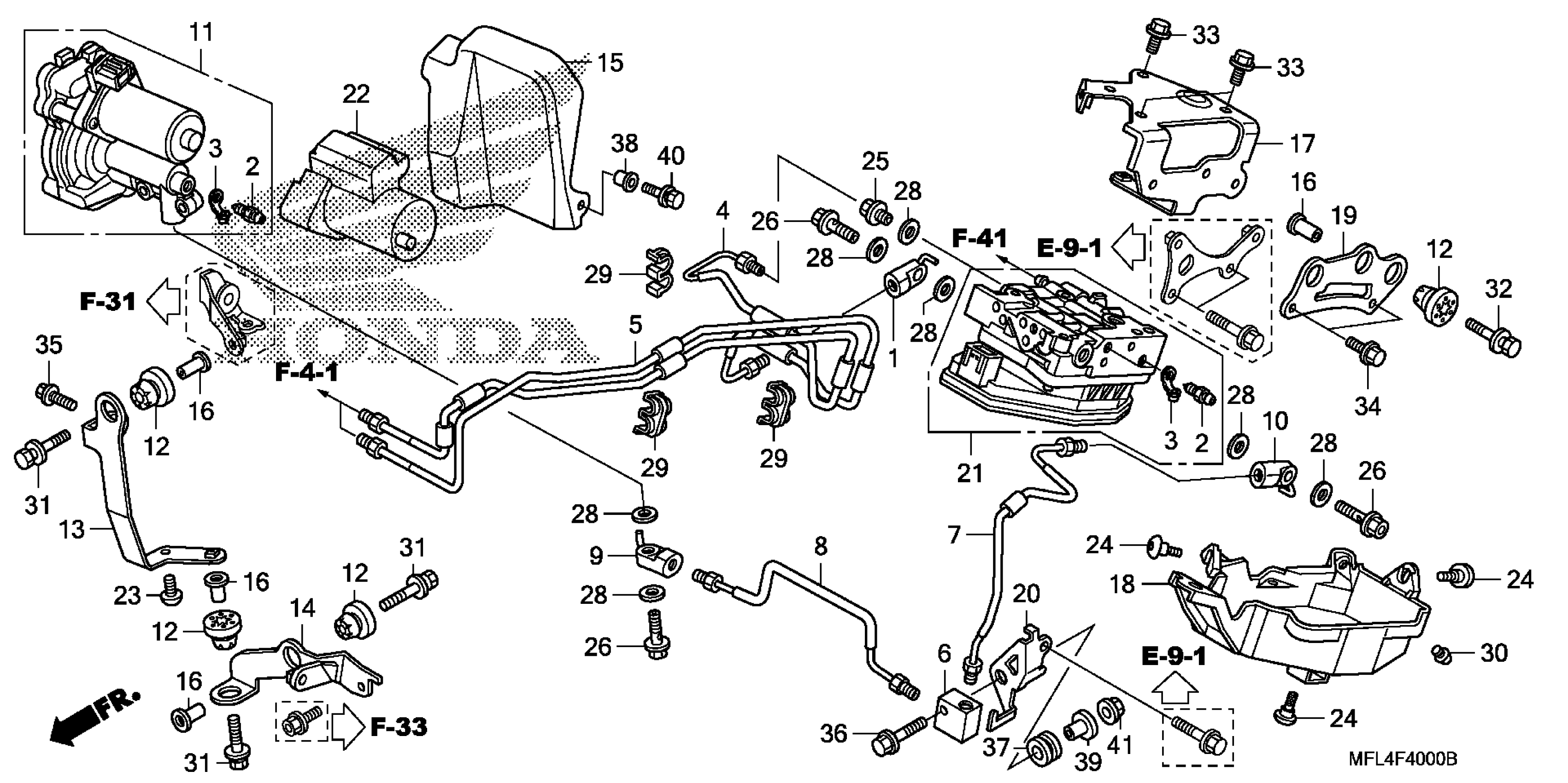

Honda CBR1000RAAC (11) MOTORCYCLE, JPN, VIN# JH2SC598-BK200001 FRONT POWER UNIT@FRONT VALVE UNIT Diagram

#

Description
Price

1

JOINT, BRAKE PIPE

43322-MFL-D01

$28.00

2

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

3

CAP, BLEEDER

43353-461-771

Unavailable

4

PIPE A, FR. BRAKE

45125-MFL-D00

$28.99

5

PIPE B, FR. BRAKE

45126-MFL-D00

$25.97

6

JOINT, PIPE (TWO-WAY)

45128-MEJ-D01

$11.53

7

PIPE C, FR. BRAKE

45128-MFL-D00

$16.99

8

PIPE D, FR. BRAKE

45129-MFL-D00

$14.06

9

JOINT A, FR. BRAKE PIPE

45321-MFJ-A51

$19.76

10

JOINT B, FR. BRAKE PIPE

45322-MFJ-A51

$19.76

11

MODULATOR ASSY., POWER UNIT

57100-MFJ-A51

$1,465.03

12

RUBBER, MOUNT

57101-SJA-003

$10.12

13

STAY, FR. POWER UNIT MIDDLE

57402-MFL-D00

$17.04

14

STAY, FR. POWER UNIT (LOWER)

57403-MFL-D00

$10.49

15

PROTECTOR, POWER UNIT

57405-MFL-D00

$57.60

16

COLLAR, FR. POWER UNIT MOUNTING

57409-MFJ-A50

$3.10

17

STAY A, VALVE UNIT

57414-MFL-D00

$17.53

18

COVER, VALVE UNIT

57415-MFL-D00

$13.96

19

STAY B, VALVE UNIT

57416-MFL-D00

$5.59

20

STAY, FR. BRAKE PIPE JOINT

57419-MFL-D00

$4.62

21

MODULATOR ASSY., FR. VALVE UNIT

57500-MFJ-A51

$1,168.74

22

COVER, MODULATOR MOTOR ASSY.

57801-MFL-D00

$24.50

23

SCREW, PAN (6X10)

90105-MM4-000

$2.04

24

SCREW, PAN (6X14)

90106-KBV-000

$3.73

25

BOLT, OIL (10X10.6)

90145-MCA-971

$5.94

26

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

28

WASHER, OIL BOLT

90545-300-000

$5.79

29

CLAMP, BRAKE PIPE

90661-MCA-003

$1.99

30

PLUG, CONE

90899-385-000

$3.57

31

BOLT-WASHER (6X30)

93404-06030-00

$1.21

32

BOLT-WASHER (6X30)

93404-06030-07

$0.93

33

BOLT, FLANGE (6X10)

95701-06010-07

$1.63

34

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

35

BOLT, FLANGE (6X18)

96001-06018-00

$1.79

36

BOLT, FLANGE (6X32)

96001-06032-07

$1.43

37

RUBBER, SIDE COVER

83545-KCJ-690

$1.29

38

NUT, WELL (5MM)

90111-MFL-D01

$3.24

39

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.96

40

BOLT-WASHER (5X14)

93404-05014-00

$0.79

41

NUT, FLANGE (6MM)

94050-06070

$1.44
