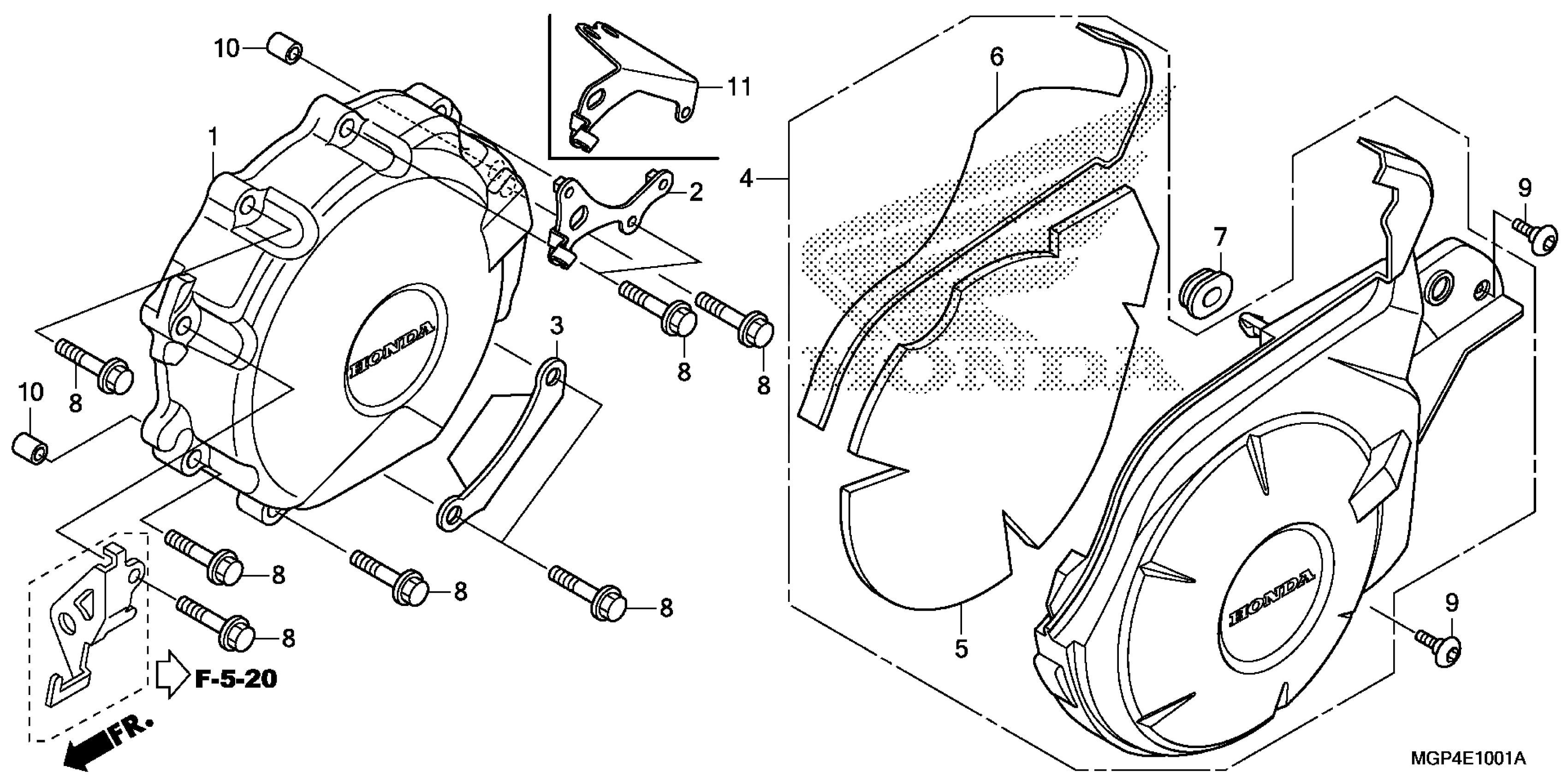

Honda CBR1000RA5AC (14) CBR1000RA, JPN, VIN# JH2SC598-EK500001 ALTERNATOR COVER (2) Diagram

COVER, ALTERNATOR

11321-MGP-000

$238.92

STAY A, L. RR. COVER (LOWER)

57411-MGP-J10

$6.87

STAY B, L. RR. COVER (LOWER)

57412-MFL-700

$6.14

COVER, L. RR. (LOWER)

64600-MFL-700

$45.08

MAT, L. RR. COVER (LOWER)

64602-MFL-700

$12.46

RUBBER, L. RR. COVER (LOWER)

64603-MFL-700

$10.72

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

SCREW, PAN (6X14)

90117-MFL-D20

$2.05

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
