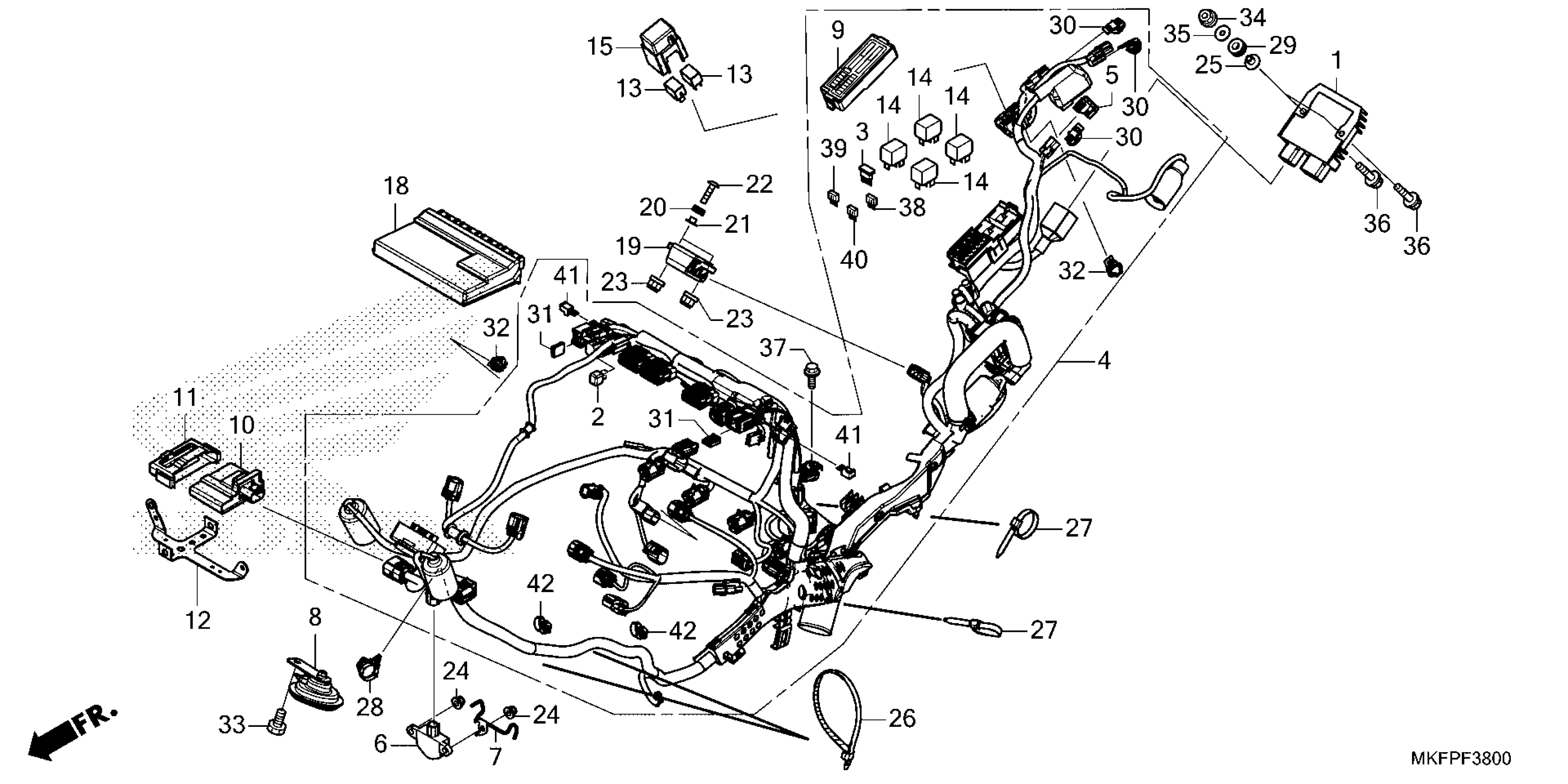

Honda CBR1000RA2AC (24) MOTORCYCLE, JPN, VIN# JH2SC775-RK700001 TO JH2SC775-RK799999 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MJJ-D31

$404.47

RESISTOR

31700-GFZ-J01

$9.26

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS

32100-MKF-L12

$1,668.72

CAP, DUMMY (WPC 4P 090 M) (RED)

32606-K44-V01

$6.56

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

GUIDE, BANK ANGLE SENSOR

35165-MKF-D40

$17.74

HORN (HIGH)

38110-MFL-003

$55.60

COVER (UPPER)

38255-MKF-DK0

$11.84

RELAY, TURN SIGNAL (LED)

38301-MKF-D41

$200.31

CUSHION, TURN SIGNAL RELAY

38306-MKF-D41

$5.56

STAY, TURN SIGNAL RELAY

38310-MKF-D40

$12.53

RELAY, POWER (MICRO ISO 4P) (OMRON)

38501-KWN-901

$5.84

RELAY (MICRO ISO 4P)

38501-MKP-DN1

Unavailable

COVER, RELAY (2P)

38506-KZZ-900

$3.34

PGM-FI UNIT

38770-MKF-LK2

$1,846.78

SENSOR SET (2GYRO & 3G)

39900-MKF-D40

$538.46

RUBBER, SENSOR MOUNTING

39963-MKF-D41

$3.81

COLLAR, LOCK SETTING

83119-MG9-000

$5.64

BOLT, SPECIAL (6X25)

90085-MBW-000

$3.52

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.31

COLLAR, RR. FENDER

90502-GG2-000

$5.49

BAND, HARNESS

90650-MBY-000

$2.24

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

CLAMP, HARNESS

90652-HC4-003

$5.68

RUBBER, CONTROL BOX

90852-898-000

Unavailable

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.35

BOLT, HEX. (8X14)

92101-08014-0G

$0.62

NUT, FLANGE (6MM)

94050-06070

$1.34

WASHER, PLAIN (6MM)

94103-06700

$0.66

BOLT, FLANGE (6X35)

96001-06035-07

$2.59

BOLT, FLANGE (6X14)

96300-06014-00

$0.87

FUSE, MINI (10A)

98200-41000

$1.22

FUSE, MINI (20A)

98200-42000

$1.12

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.70

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.15
