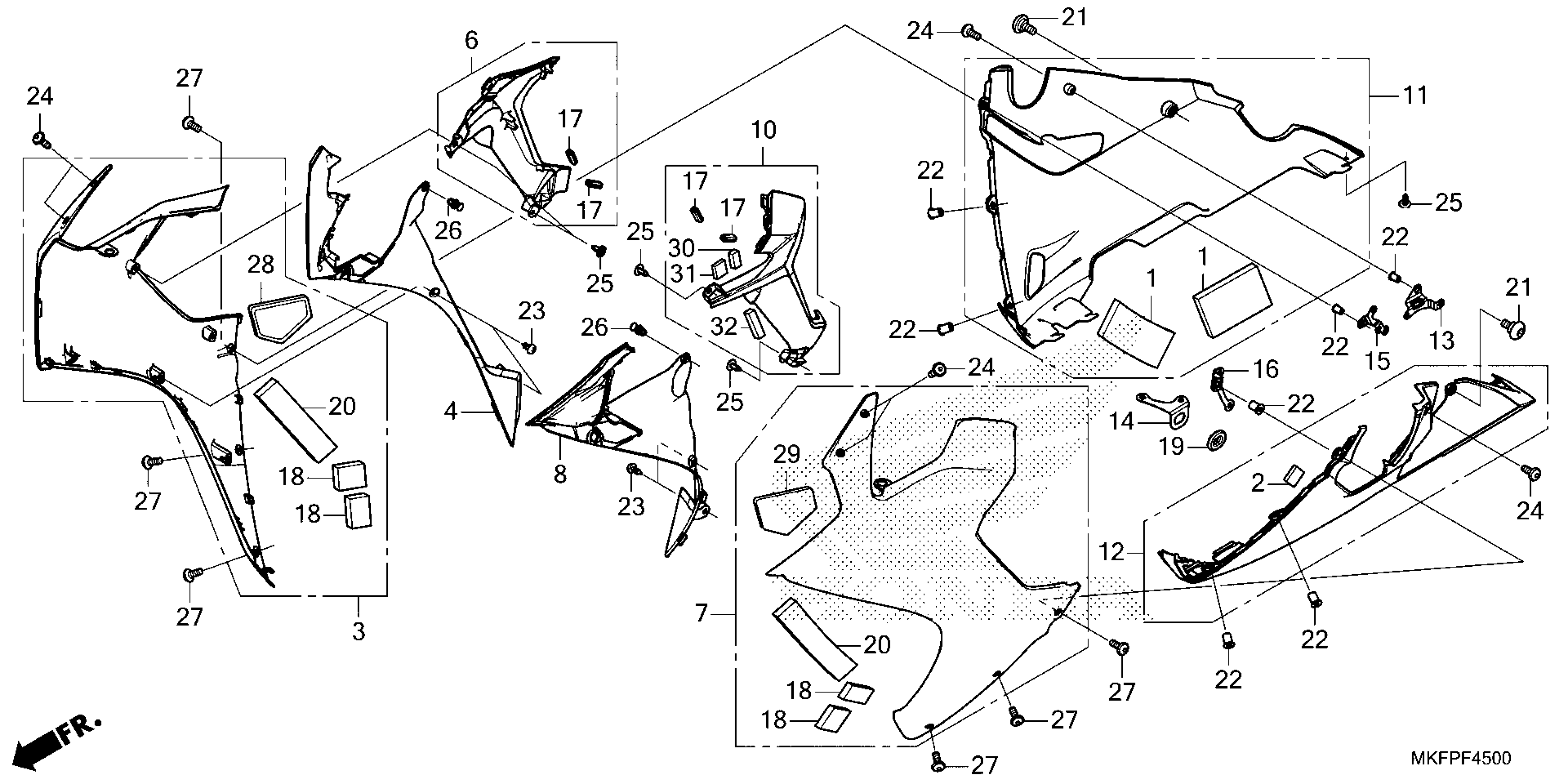

Honda CBR1000RA2AC (24) MOTORCYCLE, JPN, VIN# JH2SC775-RK700001 TO JH2SC775-RK799999 MIDDLE COWL Diagram

#

Description
Price

1

MAT, CARBURETOR COVER

17269-MZ5-920

$3.65

2

RUBBER, CUSHION

17508-MN5-000

$3.74

3

COWL ASSY. *R380*

64305-MKF-LX0ZA

$360.78

4

COWL, R. MIDDLE (INNER)

64310-MKF-D40

$23.78

6

SHROUD, R.

64320-MKF-D40

$27.86

7

COWL ASSY. *R380*

64355-MKF-LX0ZA

$383.96

8

COWL, L. MIDDLE (INNER)

64360-MKF-D40

$23.78

10

SHROUD SET, L.

64370-MKF-A20

$33.60

11

COWL ASSY., R *R380*

64405-MKF-LX0ZA

$307.92

12

COWL ASSY., L *R380*

64455-MKF-LX0ZA

$319.72

13

STAY, R. COWL (LOWER)

64541-MKF-D40

$4.66

14

STAY, L. COWL (LOWER)

64542-MKF-D40

$4.66

15

STAY, R. MIDDLE COWL

64543-MKF-D40

$2.87

16

STAY, L. MIDDLE COWL

64544-MKF-D40

$4.38

17

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60

18

MAT, COWL (65X50X10)

83432-MJM-D60

$1.76

19

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

20

MAT, SIDE COVER (NOT AVAILABLE)

83613-MR8-900

Unavailable

21

SCREW, PAN (6X14)

90106-MCW-D00

$1.96

22

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

23

SCREW, TAPPING (4X10)

90114-MJK-N20

$2.09

24

BOLT, SPECIAL (5X14)

90117-MKF-D40

$2.35

25

CLIP, BODY COVER

90683-GR1-003

$2.75

26

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.04

27

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.35

28

MAT C, R. MIDDLE COWL

64395-MGP-A00

$16.15

29

MAT C, L. MIDDLE COWL

64396-MGP-A00

$16.15

30

MAT, SIDE AIR GUIDE

64333-MJM-D60

$2.25

31

MAT, DUCT COVER

64352-MFL-000

$1.90

32

MAT, TAILLIGHT

64470-GEY-300

$4.37
