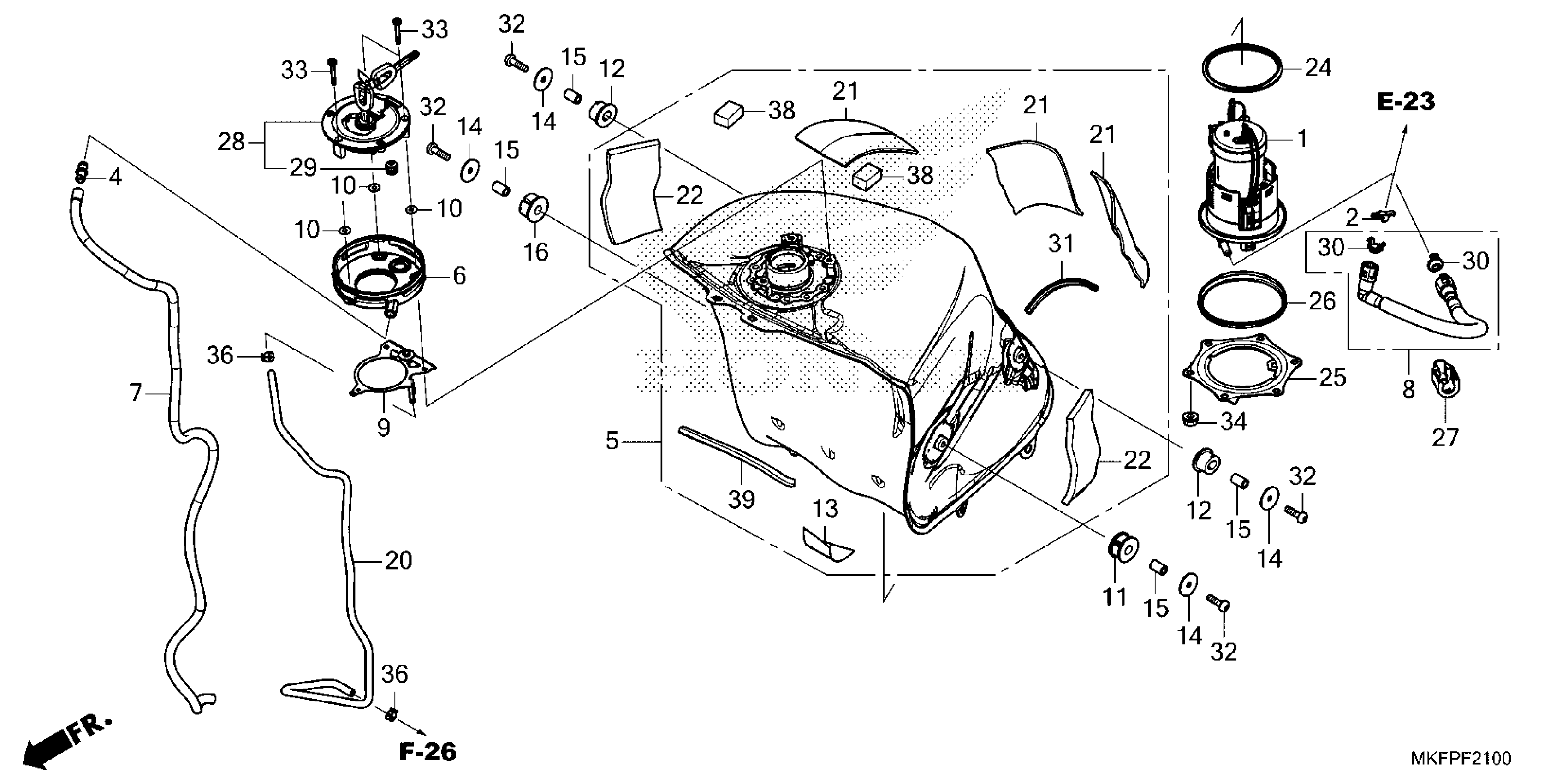

Honda CBR1000RA2AC (24) MOTORCYCLE, JPN, VIN# JH2SC775-RK700001 TO JH2SC775-RK799999 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

1

UNIT, FUEL PUMP

16700-MKF-D42

$616.01

2

DAMPER, CONNECTOR

16719-MFJ-D00

$2.80

4

JOINT, BREATHER TUBE

17359-419-670

$1.90

5

TANK ASSY., FUEL

17500-MKF-D41

$895.32

6

TRAY, FUEL TANK

17507-MKF-D40

$9.79

7

TUBE, DRAIN

17508-MKF-D40

$23.10

8

HOSE B, FUEL FEED

17526-MFL-003

$47.61

9

PIPE, BREATHER

17530-MKF-D40

$49.85

10

COLLAR, SETTING

17532-MKF-D40

$4.21

11

RUBBER, L. FR. TANK MOUNTING

17533-MFL-000

$4.92

12

RUBBER, RR. TANK MOUNTING

17534-MFL-000

$4.52

13

FILM, SIDE COVER GUARD

17535-KBH-300

$5.24

14

WASHER, TANK SETTING

17535-MKF-D40

$5.91

15

COLLAR, FUEL TANK SETTING

17536-MKF-D40

$4.21

16

RUBBER, R. FR. TANK MOUNTING

17545-MFL-000

$2.97

20

TUBE A, BREATHER

17557-MKF-L20

$13.57

21

CUSHION, FUEL TANK

17558-MEE-940

$15.94

22

CUSHION, FUEL TANK

17558-MGP-D00

$18.31

24

GASKET, FUEL PUMP

17574-MFJ-D00

$23.48

25

PLATE, FUEL PUMP SETTING

17575-MKF-D40

$15.46

26

SEAL (OUTER)

17576-MFJ-D00

$5.62

27

COVER, FUEL CONNECTOR

17580-MFJ-D00

$4.76

28

CAP COMP

17620-MKF-D63

$225.38

29

SEAL, BREATHER

17621-MGP-D62

$4.90

30

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.15

31

RUBBER, PROTECTOR

64122-MBB-300

$4.76

32

BOLT, SOCKET (6X25)

90107-MKF-D40

$3.83

33

BOLT, SOCKET (4X29)

90111-MKF-D40

$3.87

34

NUT, FLANGE (6MM)

94050-06080

$0.60

36

CLAMP, TUBE (D7.3)

95002-40730-08

$2.34

38

RUBBER

61313-GJ1-000

$4.79

39

RUBBER, PROTECTION

15605-MCF-D30

$5.69
