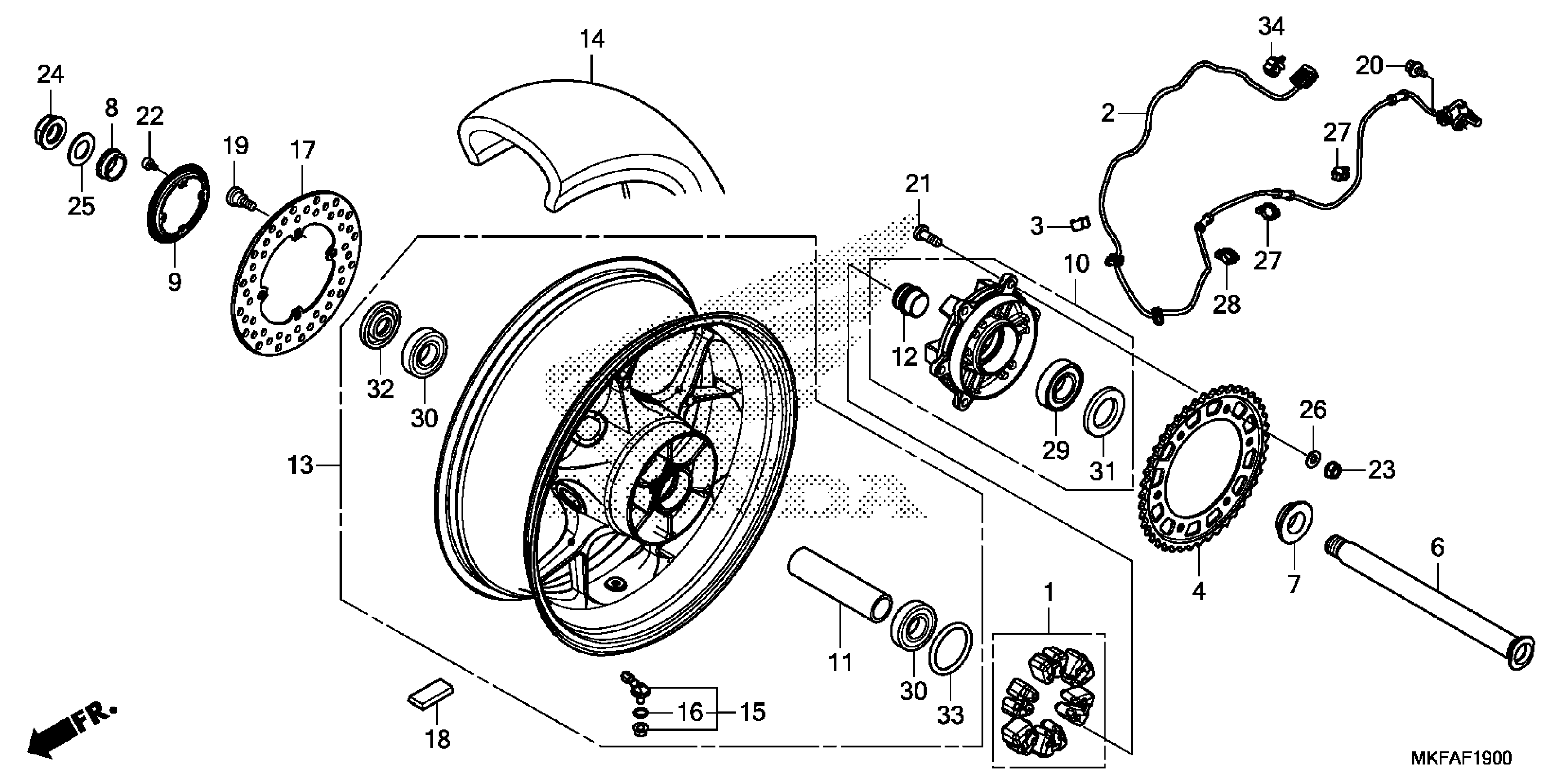

Honda CBR1000RA2AC (19) MOTORCYCLE, JPN, VIN# JH2SC775-KK200001 TO JH2SC775-KK299999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MEL-D20

$49.53

2

SENSOR, RR. WHEEL SPEED

38510-MKF-D41

$171.61

3

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.83

4

SPROCKET, FINAL DRIVEN (43T)

41201-MKF-D40

$76.43

6

AXLE, RR. WHEEL

42301-MKF-D40

$71.39

7

COLLAR, RR. WHEEL SIDE

42311-MKF-D40

$29.65

8

COLLAR, RR. BRAKE SIDE

42312-MKF-D40

$23.48

9

RING, RR. PULSER

42515-MKF-D40

$30.68

10

FLANGE SUB-ASSY., RR. DRIVEN

42615-MKF-D40

$191.38

11

COLLAR, RR. AXLE DISTANCE

42620-MKF-D40

$38.61

12

COLLAR B, RR. WHEEL DISTANCE

42625-MKF-D40

$22.45

13

WHEEL SUB-ASSY., RR. (TYPE2)

42650-MKF-D40ZC

$1,002.51

14

TIRE (190/50ZR17) This part replaces 42711-MKF-D41.

42711-MKF-D45

Unavailable

14

TIRE (190/50ZR17) This part replaces 42711-MKF-D42.

42711-MKF-D44

$103.71

15

VALVE ASSY., CLAMP IN

42755-MKA-D81

$14.89

16

O-RING

42758-MKA-D81

$1.39

17

DISK, RR. BRAKE

43251-MKF-D41

$238.96

18

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.00

18

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.59

18

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.70

19

BOLT, BRAKE DISK (8X24)

90105-MFL-D20

$3.73

20

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.01

21

BOLT (10X28.5)

90121-MKF-D40

$3.51

22

BOLT, TORX (5X10)

90131-KFK-630

$2.77

23

NUT, U (10MM)

90304-KAE-871

$4.03

24

NUT, U FLANGE (24MM)

90305-MKF-D41

$19.39

25

WASHER (24.1X43X2.5)

90501-MKF-D40

$5.17

26

WASHER (10MM)

90502-MCF-000

$2.55

27

CLIP, CABLE (14MM)

90690-MCA-003

$1.61

28

CLIP, CABLE (14MM)

90690-MCA-003

$1.61

29

BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI)

91051-MKF-D41

$51.41

30

BEARING, RADIAL BALL (60/28)

91053-MFR-671

$16.80

31

DUST SEAL (40X63X7) (NOK)

91251-MKF-D41

$13.40

32

DUST SEAL (36X52X7) (NOK)

91252-MKF-D41

$8.97

33

O-RING (57X2) (ARAI)

91352-MKF-D41

$4.48
