Description

Price

1

MAT, CARBURETOR COVER

17269-MZ5-920

$3.81

2

RUBBER, CUSHION

17508-MN5-000

$3.92

3

COWL ASSY., R. MIDDLE (TYPE1) (WL)

64305-MKF-LK0ZA

$422.20

4

COWL, R. MIDDLE (INNER)

64310-MKF-D40

$25.90

6

SHROUD, R.

64320-MKF-D40

$30.35

7

COWL ASSY., L. MIDDLE (TYPE1) (WL)

64355-MKF-LK0ZA

$422.20

8

COWL, L. MIDDLE (INNER)

64360-MKF-D40

$25.90

10

SHROUD SET, L.

64370-MKF-A20

$36.59

11

COWL ASSY., R. (LOWER) (TYPE1) (WL)

64405-MKF-DK0ZA

$443.18

12

COWL ASSY., L. (LOWER) (TYPE1) (WL)

64455-MKF-DK0ZA

$438.44

13

STAY, R. COWL (LOWER)

64541-MKF-D40

$5.05

14

STAY, L. COWL (LOWER)

64542-MKF-D40

$5.05

15

STAY, R. MIDDLE COWL

64543-MKF-D40

$3.01

16

STAY, L. MIDDLE COWL

64544-MKF-D40

$4.58

17

PROTECTOR, RUBBER

77212-MFJ-D00

$1.74

18

MAT, COWL (65X50X10)

83432-MJM-D60

$1.92

19

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

20

MAT, SIDE COVER (NOT AVAILABLE)

83613-MR8-900

Unavailable

21

SCREW, PAN (6X14)

90106-MCW-D00

$2.11

22

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

23

SCREW, TAPPING (4X10)

90114-MJK-N20

$2.26

24

BOLT, SPECIAL (5X14)

90117-MKF-D40

$2.54

25

CLIP, BODY COVER

90683-GR1-003

$2.92

26

CLIP, PANEL FIXING NH1 (BLACK)

91549-MW0-790ZA

$4.24

27

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.54

28

MAT C, R. MIDDLE COWL

64395-MGP-A00

$17.48

29

MAT C, L. MIDDLE COWL

64396-MGP-A00

$16.47

30

MAT, SIDE AIR GUIDE

64333-MJM-D60

$2.44

31

MAT, DUCT COVER

64352-MFL-000

$2.05

32

MAT, TAILLIGHT

64470-GEY-300

$4.72

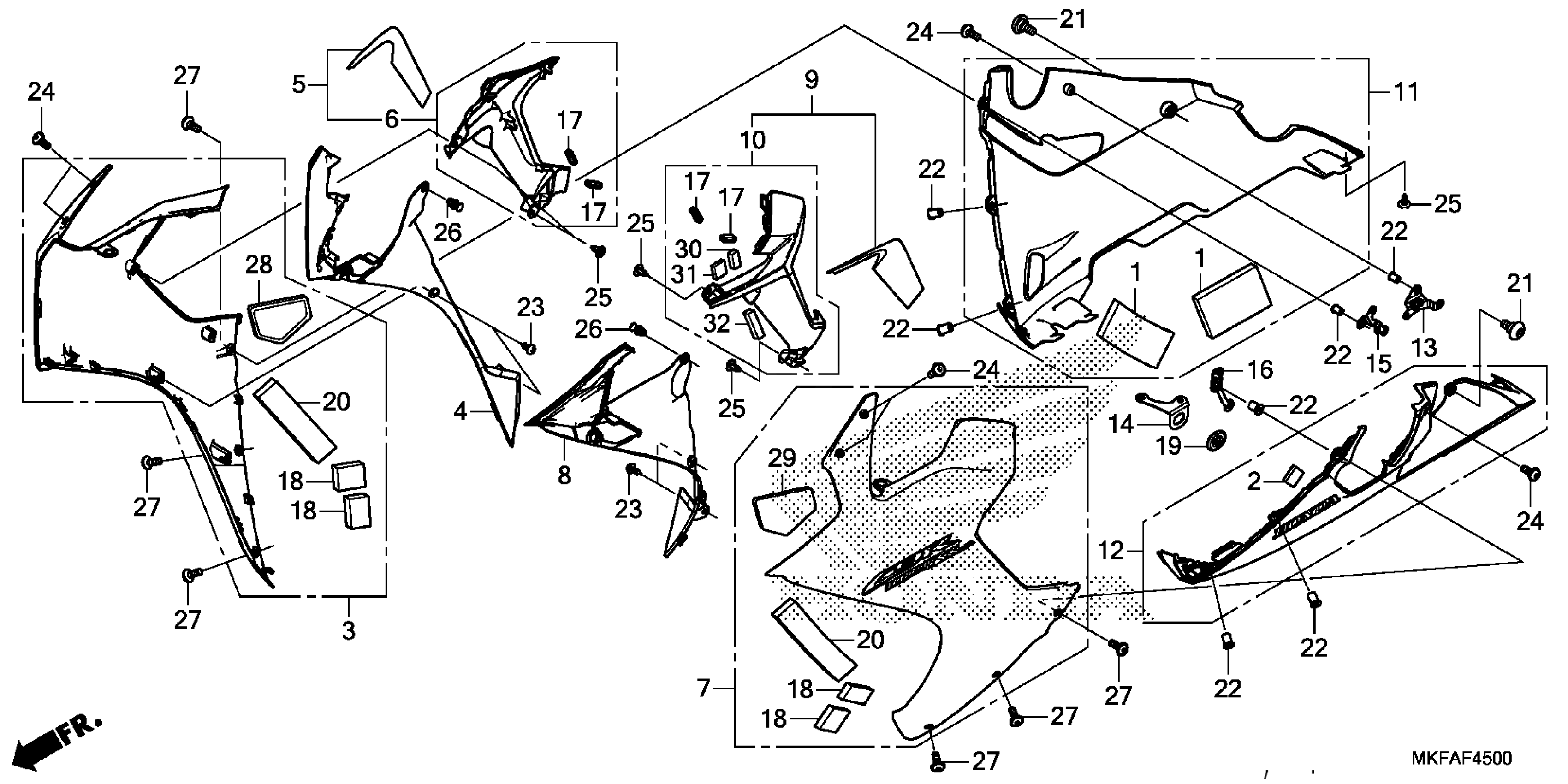

Honda CBR1000RA2AC (19) MOTORCYCLE, JPN, VIN# JH2SC775-KK200001 TO JH2SC775-KK299999 MIDDLE COWL Diagram
