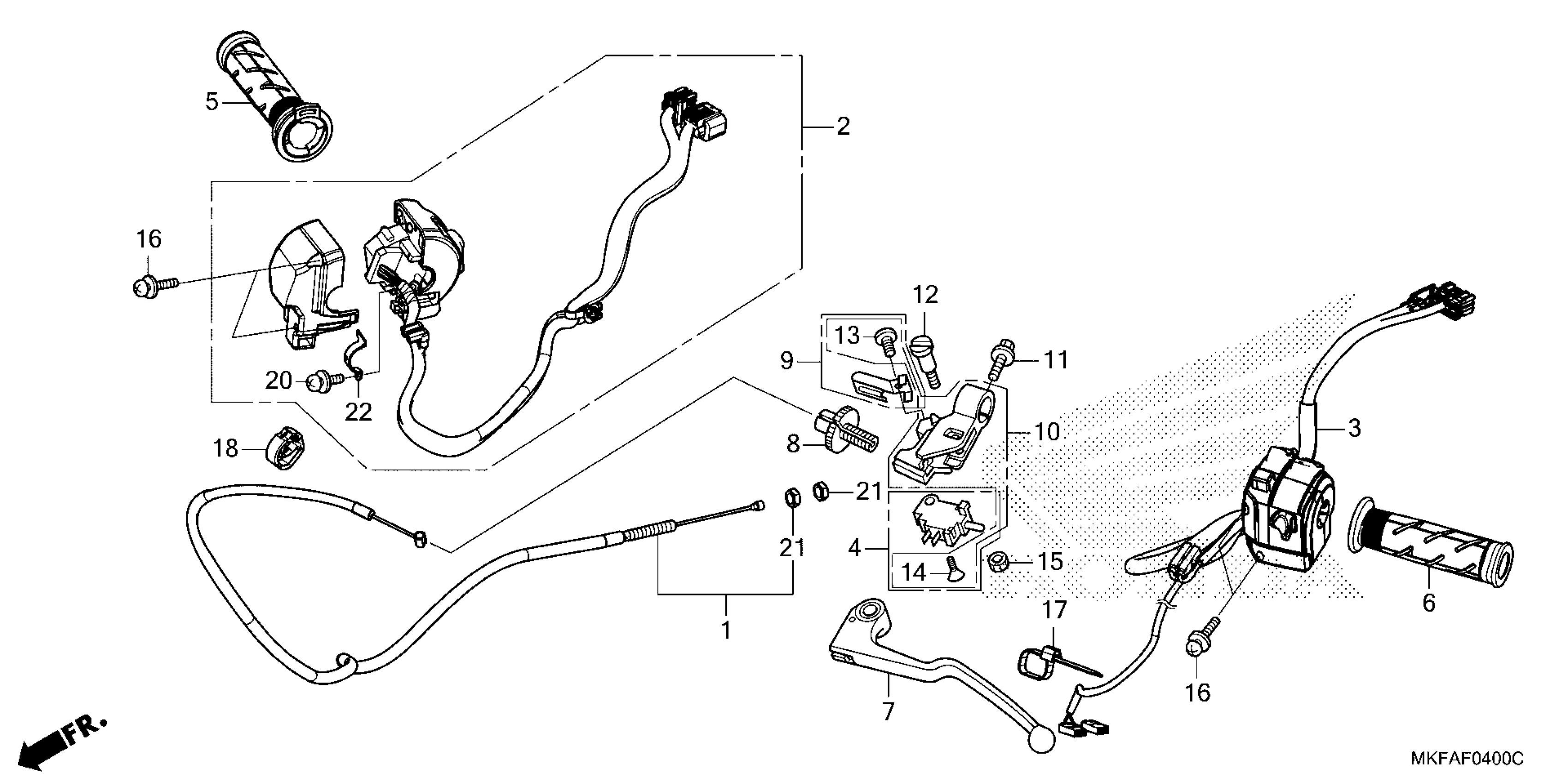

Honda CBR1000RA2AC (19) MOTORCYCLE, JPN, VIN# JH2SC775-KK200001 TO JH2SC775-KK299999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE, CLUTCH

22870-MKF-D40

$23.94

SW UNIT, ST ENG STOP This part replaces 35135-MKF-D41.

35135-MKF-D43

$220.49

SW, TURN SIGNAL This part replaces 35200-MKF-D43.

35200-MKF-D44

$217.95

SWITCH SET, CLUTCH

35335-MCJ-751

$14.26

GRIP ASSY., THROTTLE

53140-MKF-D41

$34.95

GRIP, L. HANDLE

53166-MY9-890

$18.20

LEVER, L. HANDLE

53182-MCJ-750

$23.95

BOLT, CABLE ADJUSTING

53183-MCJ-750

$7.72

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$4.15

BRACKET SET, CLUTCH LEVER

53195-MCJ-751

$25.50

BOLT, FLANGE (6X20)

90021-GHB-660

$2.26

BOLT, LEVER PIVOT

90122-MCJ-750

$4.80

SCREW, PAN (4X10)

90123-MCJ-751

$1.49

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

NUT, U (6MM)

90301-MCJ-750

$2.26

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

BAND, WIRE

90650-KW3-000

$4.48

CLAMP, HARNESS

90690-MEF-800

$1.49

SCREW-WASHER (5X16)

93892-05016-08

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PLATE A, SETTING

37971-MKR-D31

$4.52
