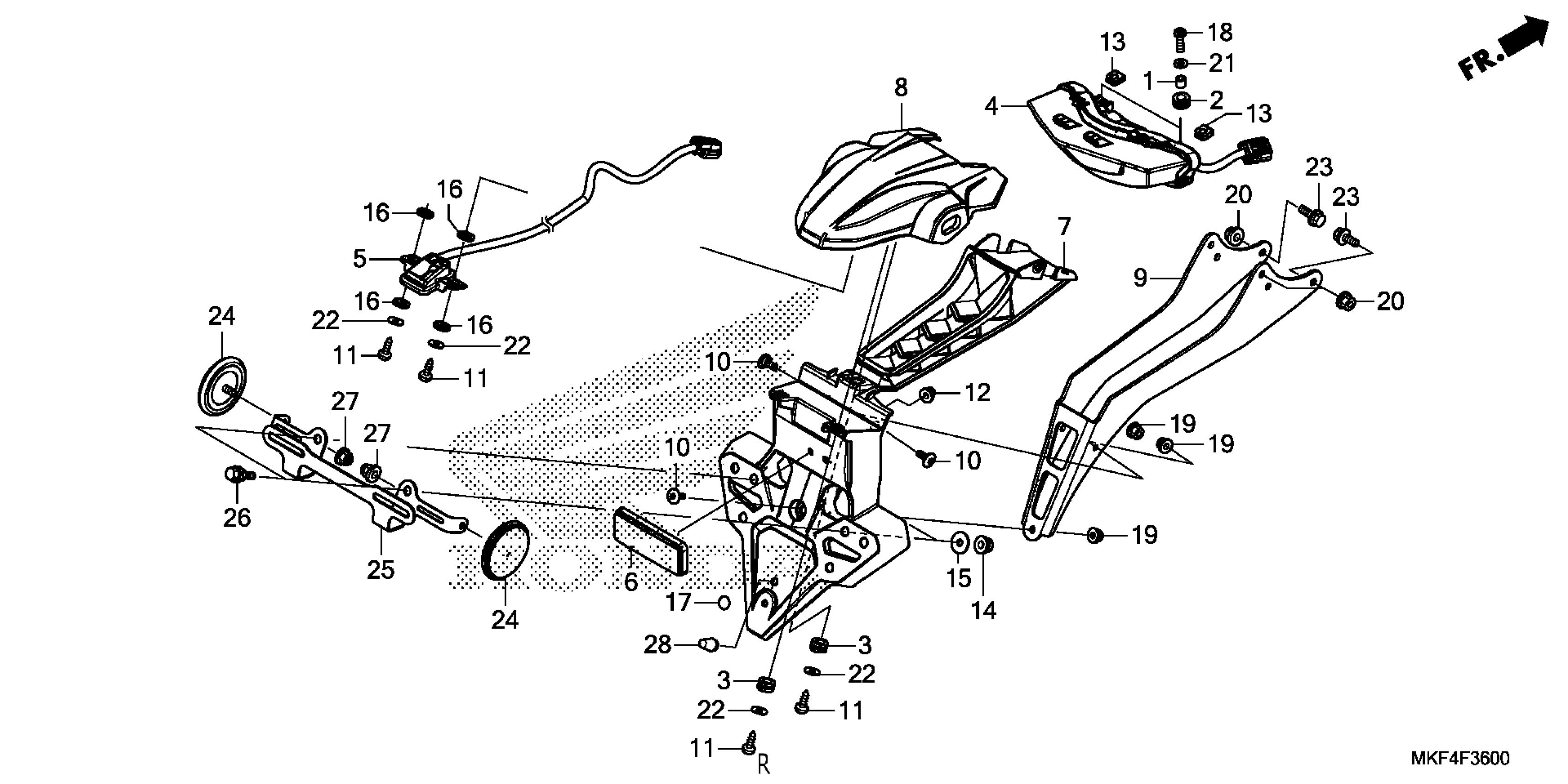

Honda CBR1000RA2AC (18) MOTORCYCLE, JPM, VIN# JH2SC775-JK100001 TAILLIGHT Diagram

#

Description
Price

1

COLLAR (5MM)

18295-GW0-920

$2.84

2

RUBBER, MOUNTING

19639-GBC-000

$1.49

3

RUBBER, MOUNTING

19639-GBL-000

$1.49

4

TAILLIGHT UNIT

33701-MKF-A01

$418.41

5

LIGHT ASSY., LICENSE

33720-MKF-D41

$88.36

6

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

7

FENDER A, RR.

80100-MKF-A20

$61.39

8

COVER, LICENSE LIGHT

80107-MKF-D40

$13.23

9

STAY, RR. FENDER A

80115-MKF-D40

$186.80

10

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.90

11

SCREW, TAPPING (4X16)

90112-MKA-D80

$2.33

12

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

13

NUT, CLIP (5MM)

90312-MT3-000

$4.57

14

NUT, FLANGE (6MM)

94050-06070

$1.49

15

WASHER, PLAIN (6MM)

94103-06700

$1.49

16

WASHER, RUBBER (6MM)

90514-K33-D00

$1.49

17

PLUG, HOLE

90852-446-630

$2.56

18

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

19

NUT, FLANGE (5MM)

94050-05070

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

WASHER, PLAIN (5MM)

94101-05000

$1.49

22

WASHER, PLAIN (4MM)

94103-04700

$1.49

23

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

24

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

25

BRACKET, NUMBER PLATE

84700-MGE-672

$17.31

26

BOLT, FLANGE (6MM)

90111-187-000

$5.59

27

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

28

PLUG, CONE

90899-KL8-000

$3.26
