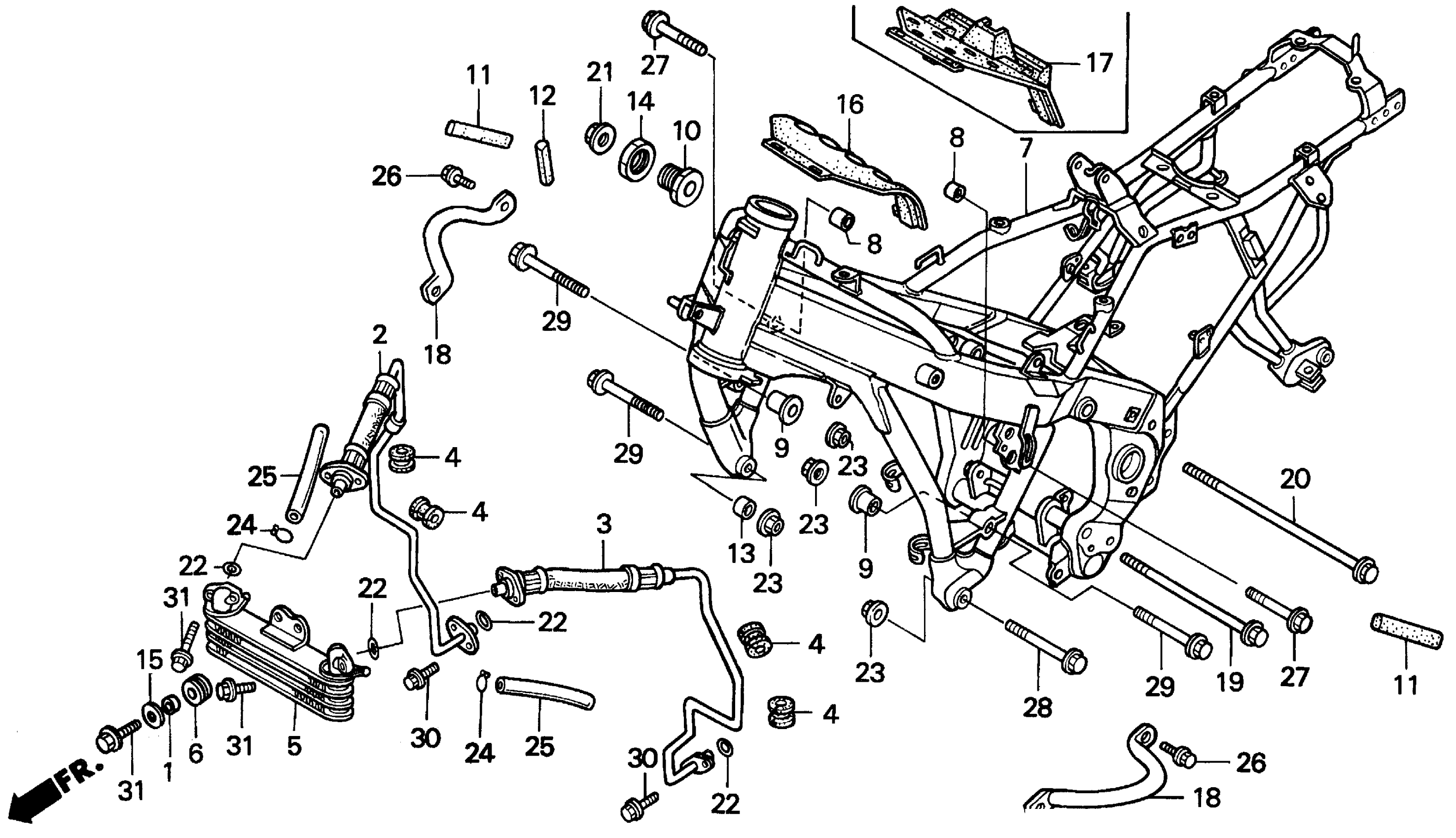

Honda CBR1000FAC (96) MOTORCYCLE, JPN, VIN# JH2SC241-TM500001 FRAME Diagram

#

Description
Price

1

COLLAR (12MM)

11513-MN5-300

$2.67

2

PIPE, R. OIL HOSE

15510-MZ2-000

Unavailable

3

PIPE, L. OIL HOSE

15515-MZ2-000

Unavailable

4

RUBBER, OIL PIPE CUSHION

15521-MA6-000

$3.70

5

COOLER, OIL This part replaces 15600-MS2-003.

15600-MZ2-G01

Unavailable

5

COOLER, OIL

15600-MZ2-G01

Unavailable

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

7

FRAME

50100-MZ2-600

Unavailable

8

COLLAR, PIVOT PLATE

50121-KV3-830

Unavailable

9

COLLAR A, ENGINE HANGER

50209-MM5-000

Unavailable

10

COLLAR, ADJUSTING

50217-MM5-000

Unavailable

11

RUBBER A, SEAL

50261-MS2-300

Unavailable

12

RUBBER B, SEAL

50262-MS2-300

Unavailable

13

COLLAR, FR. ENGINE HANGER (LOWER)

50356-KT8-000

Unavailable

14

NUT, ACCUMULATOR

57071-SB0-800

Unavailable

15

WASHER, FR. FENDER

61102-KF9-900

Unavailable

17

RUBBER, HEAT GUARD

64110-MS2-720

Unavailable

18

STAY, BUMPER

64327-MS2-000

Unavailable

19

BOLT, FLANGE (12X239)

90102-MS2-670

Unavailable

20

BOLT, FLANGE (12X365)

90103-MM5-000

Unavailable

21

NUT, FLANGE (12MM)

90304-GJ3-600

Unavailable

22

O-RING (10X2.6) (ARAI)

91314-ME5-003

$3.54

23

NUT, FLANGE (10MM)

94050-10000

$1.59

24

CLIP, TUBE (C11)

95002-70000

$1.56

25

BULK HOSE, VINYL (7X11X8000) (7X11X130)

95003-19008-60M

Unavailable

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

27

BOLT, FLANGE (10X45)

95701-10045-00

$2.98

28

BOLT, FLANGE (10X70)

95701-10070-00

$2.09

29

BOLT, FLANGE (10X85)

95701-10085-00

$2.67

30

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

31

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
