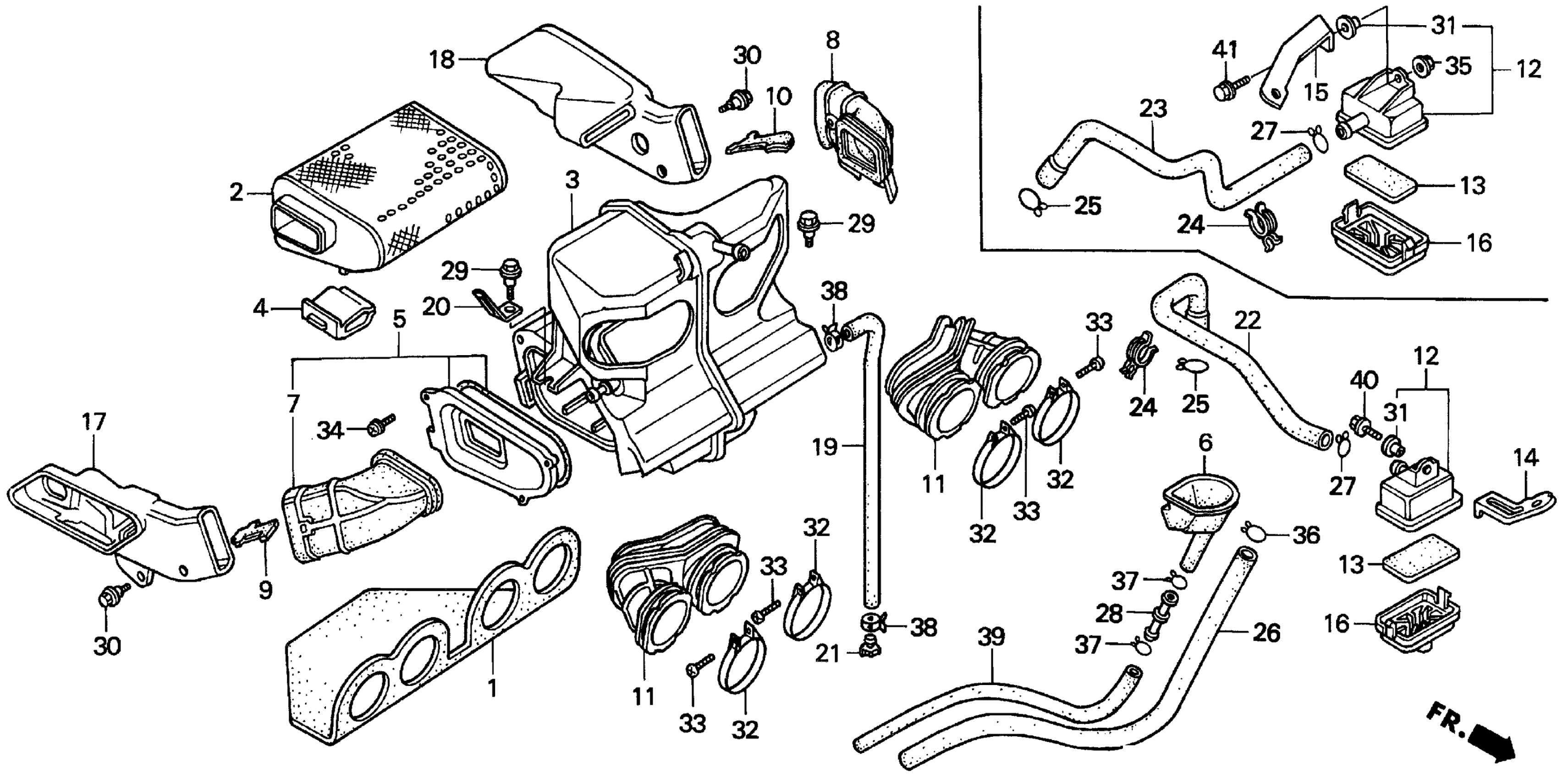

Honda CBR1000FAC (94) MOTORCYCLE, JPN, VIN# JH2SC241-RM300002 AIR CLEANER Diagram

PROTECTOR, CARBURETOR HEAT

16148-MS2-720

Unavailable

STORAGE ELEMENT, EVAPORATIVE EMISSION

17211-MZ2-000

Unavailable

HOUSING, AIR CLEANER

17215-MZ2-650

Unavailable

HOLDER, AIR CLEANER ELEMENT

17217-MM5-000

Unavailable

COVER, AIR CLEANER

17220-MS2-000

Unavailable

CUP, TANK OVERFLOW

17235-MS2-000

Unavailable

DUCT, R. AIR CLEANER IN.

17240-MS2-300

Unavailable

DUCT, L. AIR CLEANER IN.

17241-MS2-300

Unavailable

SEPARATOR, R. DUCT

17243-MS2-000

Unavailable

SEPARATOR, L. DUCT

17244-MS2-000

Unavailable

TUBE, AIR CLEANER CONNECTING

17250-MZ2-300

Unavailable

CASE, SUB-AIR CLEANER

17251-KT8-000

$26.11

FILTER, SUB-AIR CLEANER

17254-KAZ-000

$2.20

STAY, SUB-AIR CLEANER HOUSING

17255-MZ2-750

Unavailable

COVER, SUB-AIR CLEANER

17256-MM4-000

$19.85

DUCT, R. RR. IN.

17258-MS2-000

Unavailable

DUCT, L. RR. IN.

17259-MS2-000

Unavailable

TUBE, AIR CLEANER DRAIN

17265-MS2-000

Unavailable

CLIP, CANISTER TUBE

17309-MM5-740

Unavailable

PLUG, BREATHER TUBE

17370-419-700

$3.74

TUBE, SUB-AIR CLEANER

17371-MZ2-750

Unavailable

HOLDER, TUBE (PB)

17372-MZ2-000

Unavailable

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

TUBE, BREATHER TANK

17651-MM5-000

Unavailable

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

JOINT, TUBE

19102-KT8-000

$6.61

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

BOLT, FLANGE (6MM)

90111-187-000

$5.59

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 90652-GHB-750.

95018-64250

$14.56

BAND, AIR CLEANER CONNECTING TUBE (64)

95018-64250

$14.56

SCREW, PAN (4X25)

93500-04025-0G

$1.49

SCREW-WASHER (5X20)

93891-05020-08

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B12.5)

95002-02130

$1.49

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
