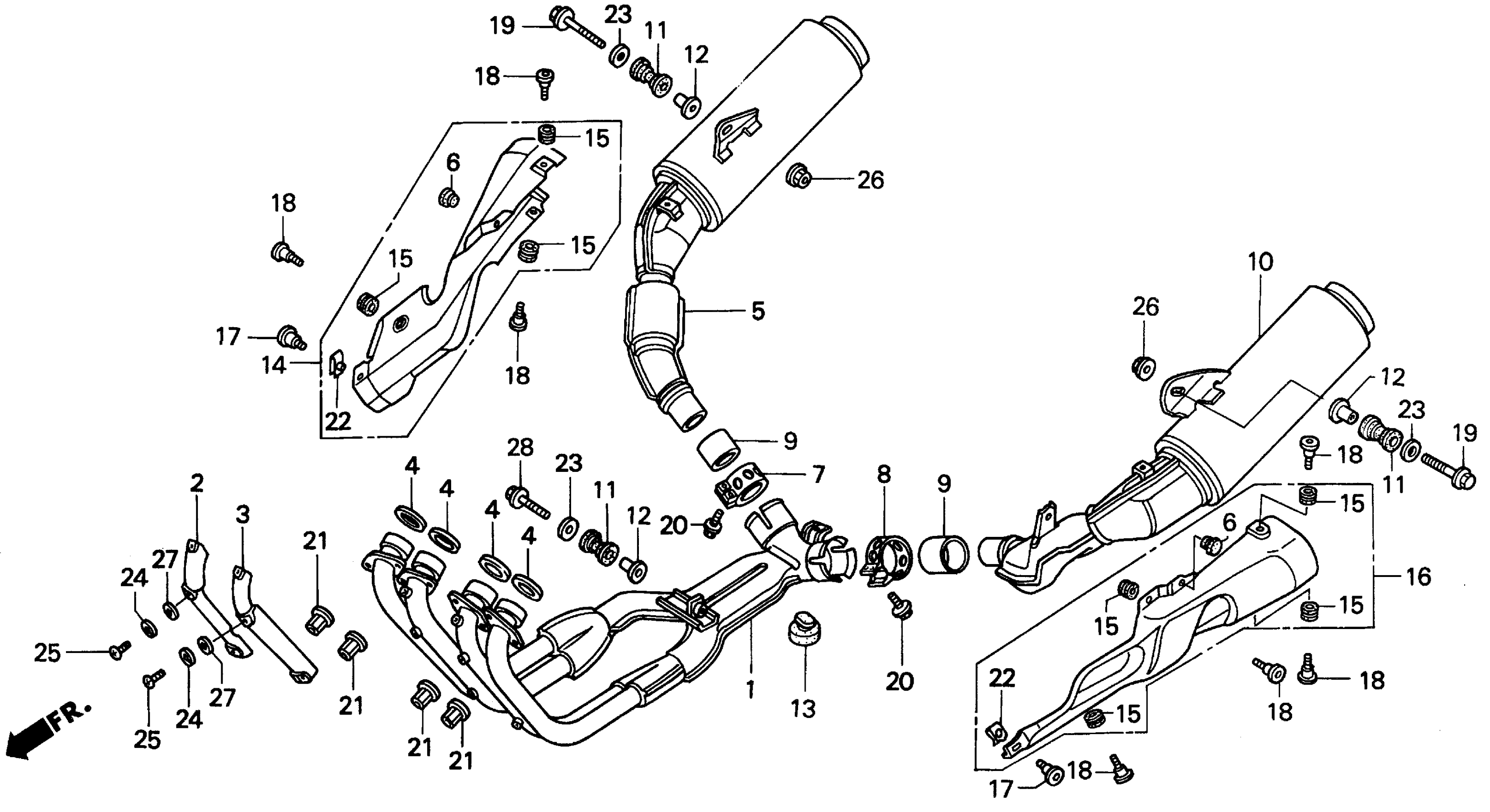

Honda CBR1000FAC (93) MOTORCYCLE, JPN, VIN# JH2SC241-PM200006 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MS2-721

Unavailable

2

COVER, R. EX. PIPE

18156-MS2-721

Unavailable

3

COVER, L. EX. PIPE

18256-MS2-721

Unavailable

4

GASKET, EX. PIPE

18291-MM5-860

$5.17

5

MUFFLER, R. EX. This part replaces 18310-MZ2-670.

18310-MZ2-405

Unavailable

6

GROMMET A, MUFFLER PROTECTOR

18366-GW8-670

$4.23

7

BAND, R. MUFFLER

18371-MM5-640

Unavailable

8

BAND, L. MUFFLER

18372-MM5-640

$33.43

9

GASKET, MUFFLER

18391-ML0-003

$29.28

10

MUFFLER, L. EX.

18410-MZ2-405

Unavailable

10

MUFFLER, L. EX. This part replaces 18410-MZ2-670.

18410-MZ2-405

Unavailable

11

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$7.04

12

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.91

13

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

14

COVER, R. PIVOT (LOWER) *NH206M* (MEDIUM GRAY)

64385-MS2-670ZA

Unavailable

15

RUBBER, PIVOT COVER (LOWER)

64386-MS2-000

$5.31

16

COVER, L. PIVOT (LOWER) *NH206M* (MEDIUM GRAY)

64395-MS2-670ZA

Unavailable

17

SCREW, PAN (6X11)

90106-KY2-701

$4.24

18

SCREW, PAN (6X14)

90113-MM5-000

$3.10

19

BOLT, SPECIAL FLANGE (8X45)

90158-MS9-000

Unavailable

20

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

21

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

22

NUT, CLIP (6MM)

90344-MS2-000

Unavailable

23

WASHER (8.5X26)

90504-MM5-000

Unavailable

24

WASHER, SPRING (6MM) This part replaces 90567-ZV4-000.

94111-06400

Unavailable

24

WASHER, SPRING (6MM)

94111-06400

Unavailable

25

SCREW, PAN (6X10)

93500-06010-4J

Unavailable

26

NUT, FLANGE (8MM)

94050-08000

$1.49

27

WASHER, PLAIN (6MM)

94101-06200

$1.49

28

BOLT, FLANGE (8X45)

95701-08045-07

$2.17
