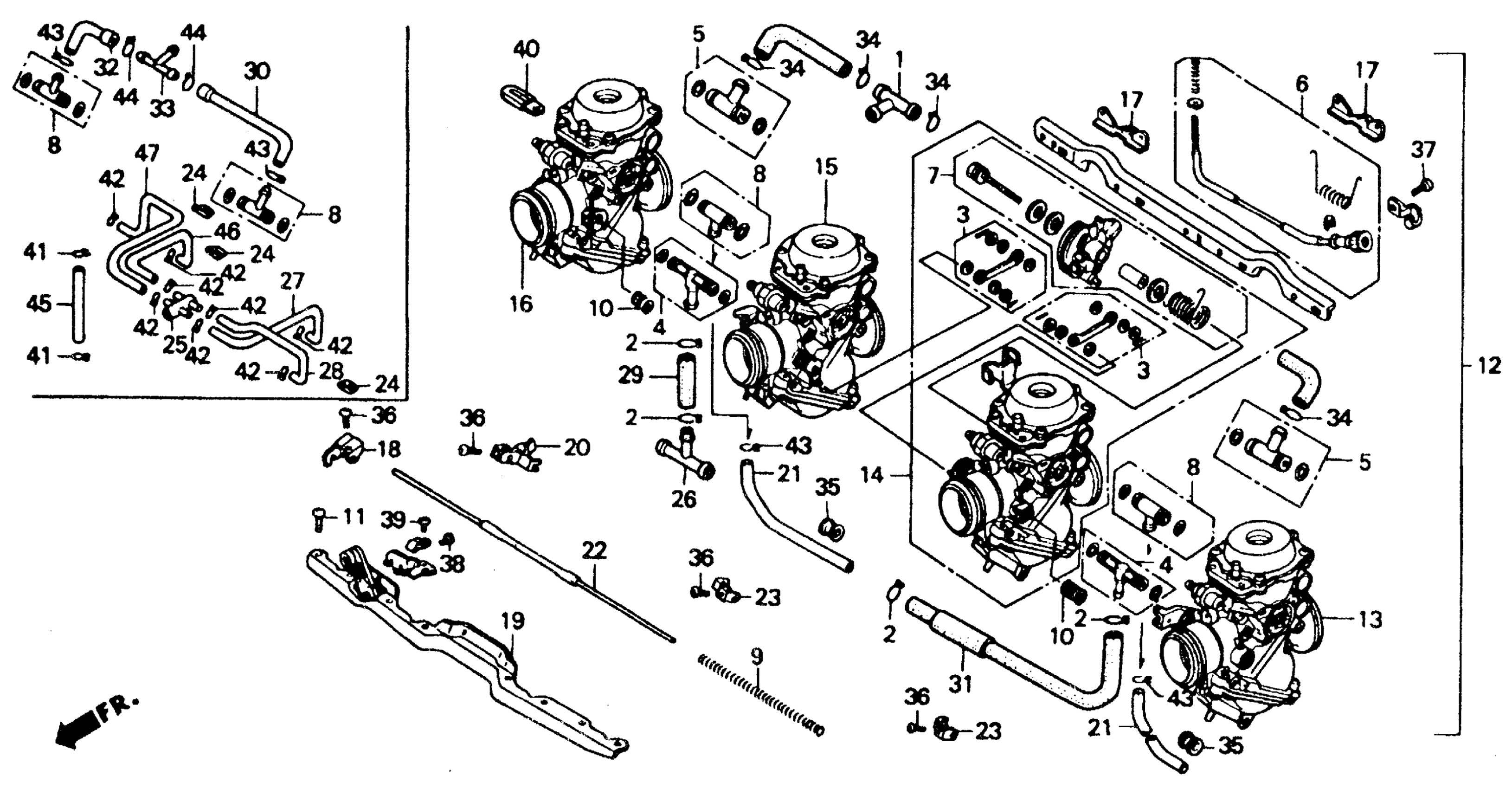

Honda CBR1000FAC (91) MOTORCYCLE, JPN, VIN# JH2SC241-MM100001 CARBURETOR (ASSY.) Diagram

#

Description
Price

2

CLIP, BREATHER TUBE

15772-292-010

$2.92

3

ARM SET, LINK (NOT AVAILABLE)

16018-MM5-601

Unavailable

4

T-JOINT SET (A)

16026-MM4-004

Unavailable

6

SCREW SET B

16028-MS2-670

Unavailable

7

DRUM SET, THROTTLE

16032-MM5-602

Unavailable

8

JOINT SET This part replaces 16047-MA6-003.

16048-KR3-980

$52.03

9

SPRING, COMPRESSION COIL

16050-MM5-601

$6.59

10

SPRING, COMPRESSION COIL

16053-MM5-601

Unavailable

11

SCREW, PAN (6X12)

16080-ML4-611

$3.24

12

CARBURETOR ASSY. (VG91B A)

16100-MS2-723

Unavailable

13

CARBURETOR ASSY. 1

16101-MS2-720

Unavailable

14

CARBURETOR ASSY. 2

16102-MS2-720

Unavailable

15

CARBURETOR ASSY. 3

16103-MS2-720

Unavailable

16

CARBURETOR ASSY. 4

16104-MS2-720

Unavailable

17

STAY, PLATE

16119-MM5-671

Unavailable

18

LEVER, STARTER (NOT AVAILABLE)

16120-MM5-601

Unavailable

19

LEVER, STARTER

16121-MM5-601

Unavailable

20

LEVER, STARTER

16122-MM5-601

Unavailable

22

SHAFT, STARTER LINK

16145-MM5-601

Unavailable

23

LEVER, STARTER

16146-MM5-601

Unavailable

24

CLIP, PLATE This part replaces 16179-ML4-651.

17191-MN5-740

Unavailable

24

CLIP, PLATE

17191-MN5-740

Unavailable

25

T-JOINT

16180-ME5-761

$31.64

26

T-JOINT

16180-MM5-601

$21.95

27

TUBE

16195-MS2-720

Unavailable

28

TUBE

16196-MS2-721

Unavailable

29

TUBE

16198-MS2-601

Unavailable

30

TUBE

16198-MS2-720

Unavailable

31

TUBE (NOT AVAILABLE)

16199-MS2-601

Unavailable

32

TUBE

16199-MS2-720

Unavailable

33

JOINT (THREE-WAY)

17303-MJ1-790

Unavailable

35

RUBBER, BUSH

45159-MG9-003

Unavailable

36

SCREW, PAN (4X8)

93500-04008-0A

$1.49

36

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

37

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

37

SCREW, PAN (5X12)

93500-05012-0A

$1.49

37

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$1.49

37

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$1.49

38

SCREW-WASHER (4X8)

93892-04008-00

$1.49

38

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

39

SCREW-WASHER (4X10)

93892-04010-00

$1.49

39

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$1.49

40

CLIP, WIRE (4X50)

94591-45000

$2.92

41

CLIP, TUBE (B7)

95002-02070

$1.80

42

CLIP, TUBE (B8)

95002-02080

$1.80

43

CLIP, TUBE (B12)

95002-02120

$2.00

44

CLIP, TUBE (B12.5)

95002-02130

$1.49

45

BULK HOSE, VACUUM (3.5X1000) (3.5X820)

95005-35001-20M

$9.67

46

BULK HOSE, VACUUM (4.5X1000) (4.5X260)

95005-45001-20M

$34.14

47

BULK HOSE, VACUUM (4.5X1000) (4.5X440)

95005-45001-20M

$34.14
