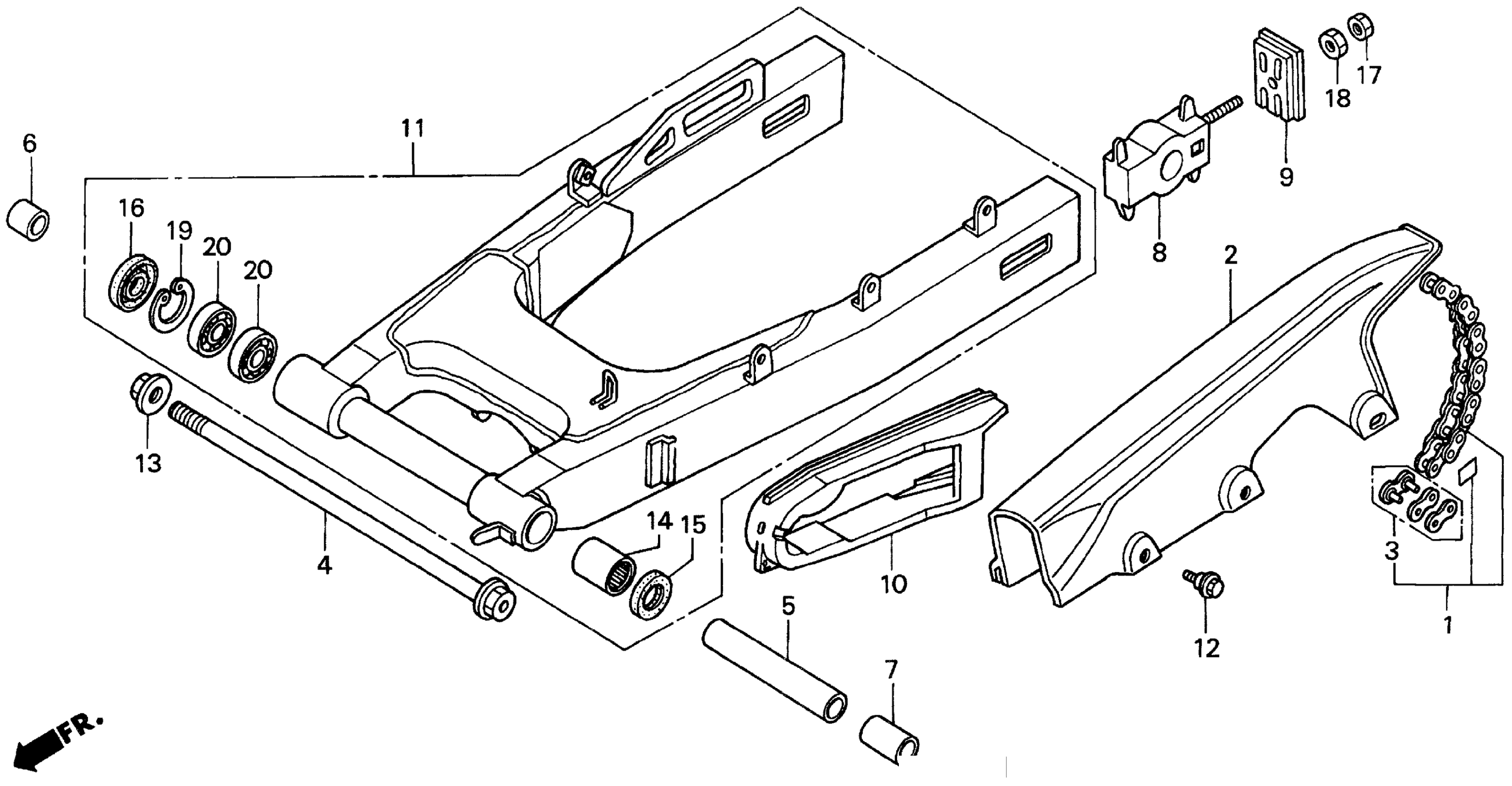

Honda CBR1000FA (96) MOTORCYCLE, JPN, VIN# JH2SC240-TM500001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (102-120L) (RK EXCEL)

06405-MZ2-405

Unavailable

1

CHAIN SET, DRIVE (102-120L) (DAIDO)

06405-MZ2-406

Unavailable

2

CASE, CHAIN

40510-MS2-000

Unavailable

3

MASTER LINK (RK EXCEL)

40545-MBB-005

Unavailable

3

MASTER LINK (DAIDO)

40545-MZ2-305

$9.98

3

MASTER LINK (RK EXCEL) This part replaces 40545-MZ2-306.

40545-MBB-005

Unavailable

4

BOLT, RR. SWINGARM PIVOT

52101-MM5-000

Unavailable

5

COLLAR, PIVOT DISTANCE

52102-MM5-000

Unavailable

6

COLLAR B, SWINGARM PIVOT

52105-MM2-670

Unavailable

7

COLLAR B, PIVOT

52106-ML4-000

Unavailable

8

COLLAR, CHAIN TENSIONER

52120-MJ0-010

Unavailable

9

PLATE, CHAIN TENSIONER

52121-MJ0-000

$22.28

10

SLIDER, CHAIN

52170-MM5-000

Unavailable

11

SWINGARM SET *NH1* This part replaces 52200-MZ2-305ZA.

52200-MZ2-305ZB

Unavailable

12

BOLT, FLANGE (6MM)

90111-187-000

$5.59

13

NUT, U (14MM)

90305-GE8-003

$3.86

13

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

14

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

14

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

15

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

16

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

NUT, HEX. (8MM)

94030-08000

$1.49

19

CIRCLIP, INNER (35MM)

94520-35000

$1.84

20

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
