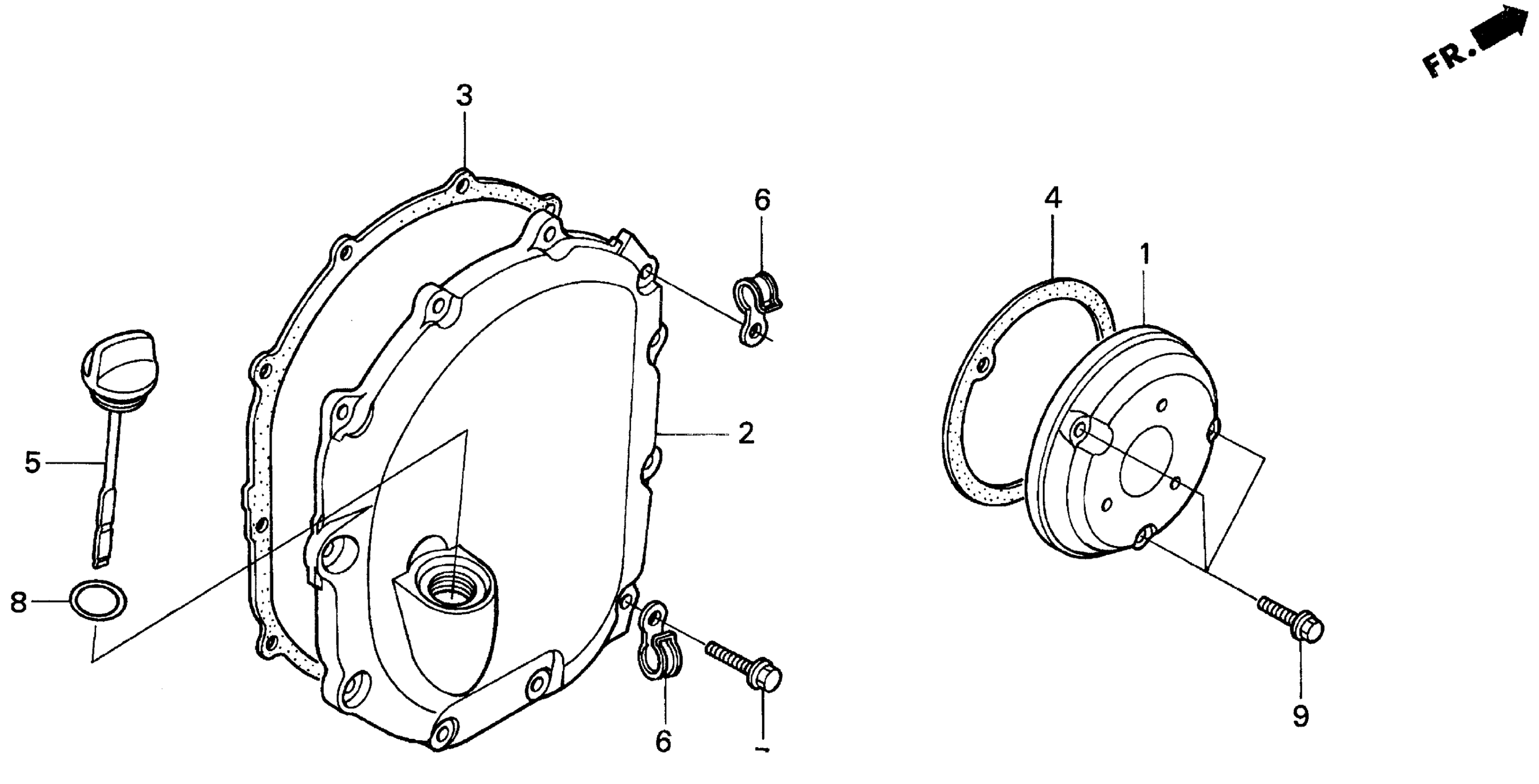

Honda CBR1000FA (96) MOTORCYCLE, JPN, VIN# JH2SC240-TM500001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11311-MZ2-610

Unavailable

2

COVER, CLUTCH

11331-MZ2-610

Unavailable

3

GASKET, CLUTCH COVER

11395-MW7-790

Unavailable

4

GASKET, R. CRANKCASE COVER

11396-MZ1-000

$5.57

5

DIPSTICK, OIL

15650-MS2-610

Unavailable

6

CLAMP, WIRE

32922-MB2-000

Unavailable

7

BOLT, FLANGE (6X22)

90001-GHB-660

$3.30

8

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

8

O-RING (21.5X3.2)

91307-425-003

$2.59

9

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
