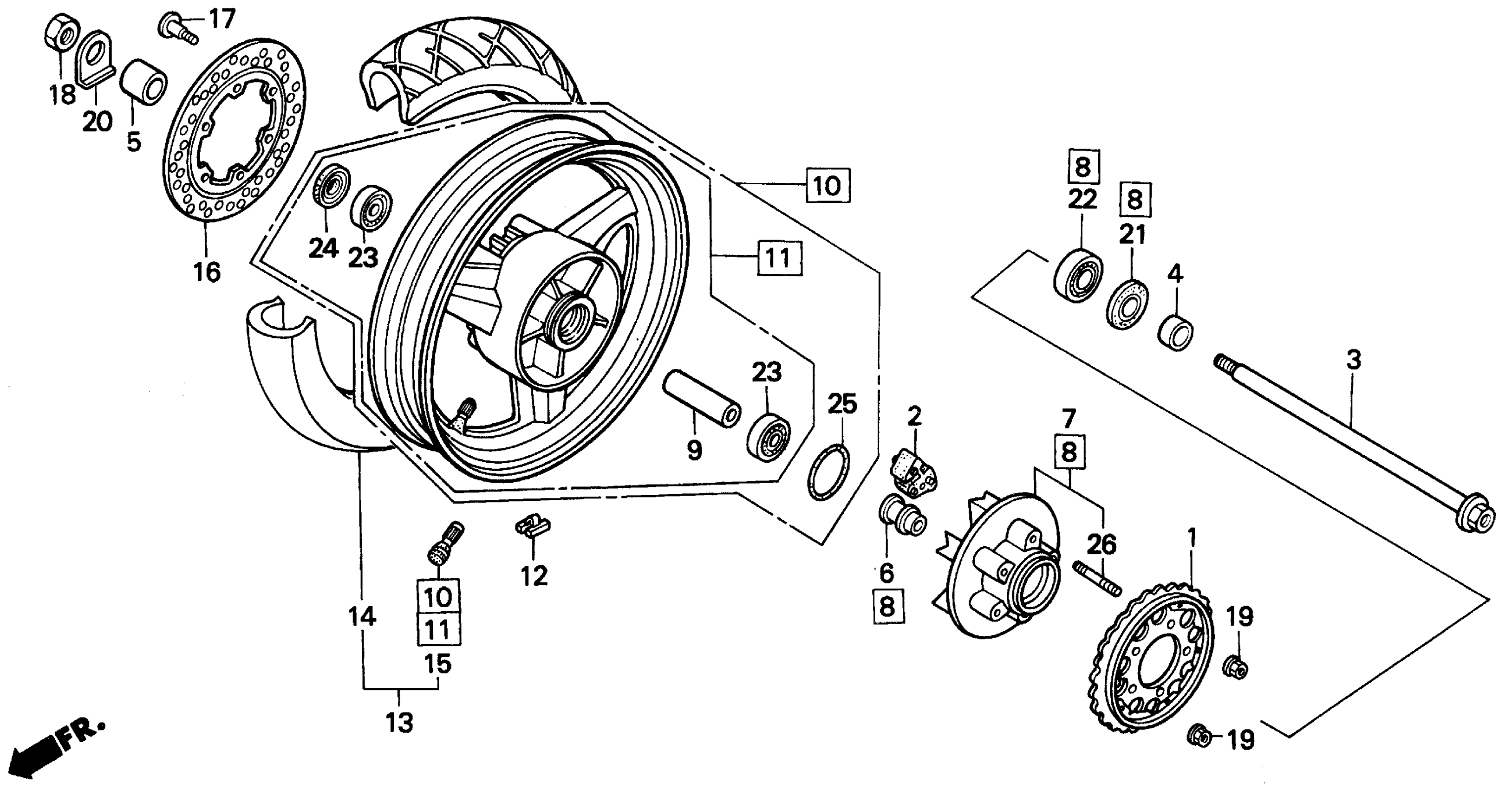

Honda CBR1000FA (96) MOTORCYCLE, JPN, VIN# JH2SC240-TM500001 REAR WHEEL Diagram

SPROCKET, FINAL DRIVEN (42T)

41200-MZ2-890

Unavailable

DAMPER, RR. WHEEL

41241-MM5-000

$13.84

AXLE, RR. WHEEL

42301-MM5-000

$100.43

COLLAR, RR. WHEEL SIDE

42311-MG5-670

$16.43

COLLAR, RR. BRAKE SIDE (SOURCE: VINTAGE PARTS INC.) This part replaces 42313-MS2-670.

42313-MZ1-610

Unavailable

COLLAR, RR. BRAKE SIDE

42313-MZ1-610

Unavailable

SLEEVE, RR. AXLE

42606-MS2-000

Unavailable

FLANGE SUB-ASSY., RR. DRIVEN

42615-MZ2-A20

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-MZ1-000

Unavailable

WHEEL SUB-ASSY., RR.

42650-MZ2-A20

Unavailable

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

TIRE, RR. (170/60VR17) (V270 CY16) (BS) (NOT AVAILABLE)

42711-MS2-871

Unavailable

VALVE, RIM (BS)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

DISK, RR. BRAKE

43251-MAT-000

$420.93

DISK, RR. BRAKE This part replaces 43251-MZ2-000.

43251-MAT-000

$420.93

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

NUT, AXLE (18MM)

90305-KA4-003

Unavailable

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

WASHER, RR. AXLE

90559-MJ0-630

Unavailable

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

BEARING, RADIAL BALL (6305) (UU) This part replaces 91051-MAT-003.

91051-MBT-611

$34.28

BEARING, RADIAL BALL (6305) (UU)

91051-MBT-611

$34.28

BEARING, RADIAL BALL (6305) (UU) This part replaces 91051-MM5-003.

91051-MBT-611

$34.28

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96

O-RING (69X2)

91302-MS2-003

$4.13

BOLT, STUD (12X28)

92918-12028-0E

Unavailable
