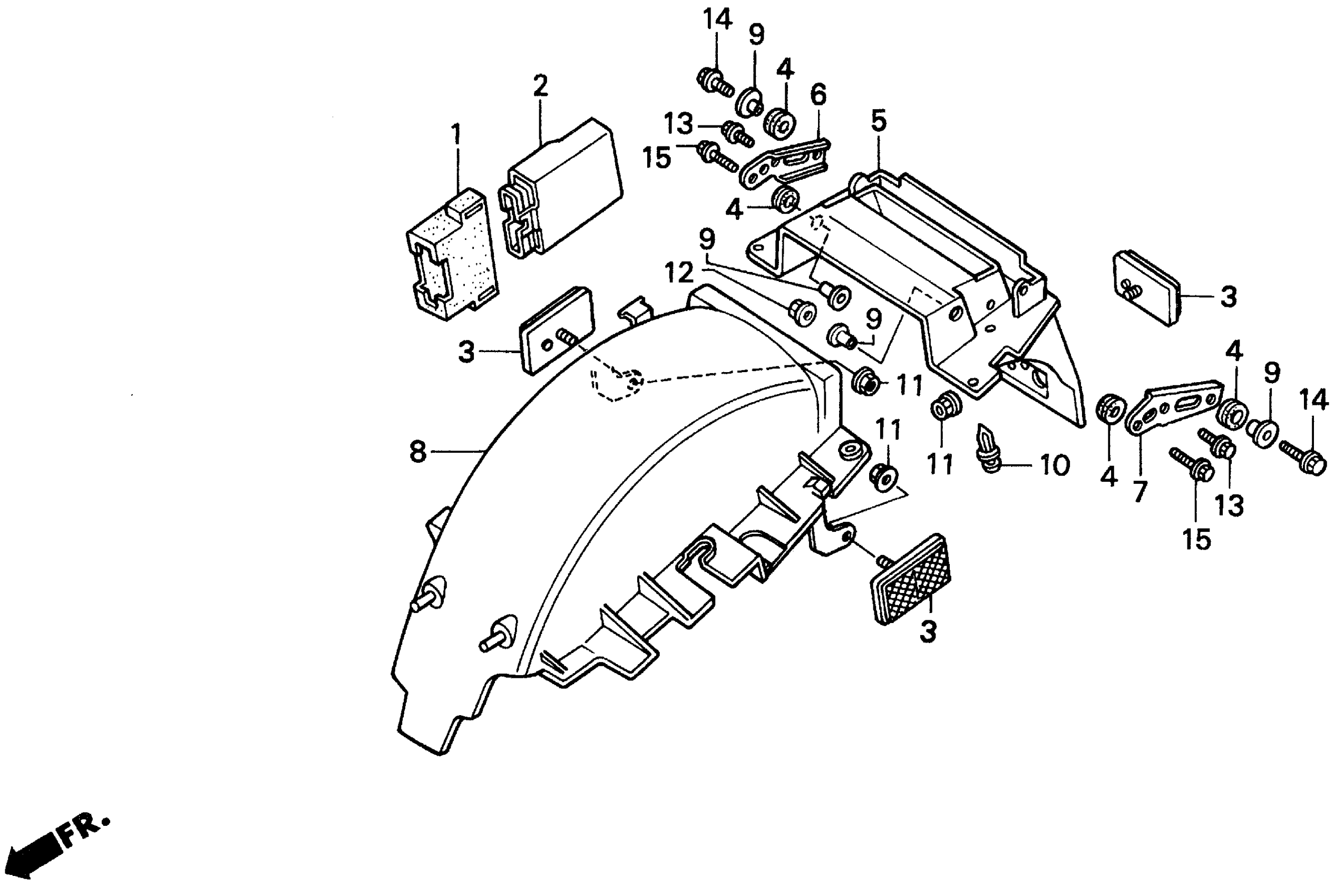

Honda CBR1000FA (96) MOTORCYCLE, JPN, VIN# JH2SC240-TM500001 REAR FENDER Diagram

CUSHION, SPARK UNIT

30405-MT6-000

Unavailable

MODULE, IGNITION CONTROL (CDI)(SPARK UNIT)

30410-MZ2-601

Unavailable

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

FENDER A, RR.

80100-MZ2-670

Unavailable

STAY, R. RR. FENDER

80101-MS2-000

Unavailable

STAY, L. RR. FENDER

80102-MS2-000

Unavailable

FENDER B, RR.

80200-MS2-660

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

CLIP, BODY COVER

90683-GR1-003

$2.92

NUT, FLANGE (5MM)

94050-05080

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
