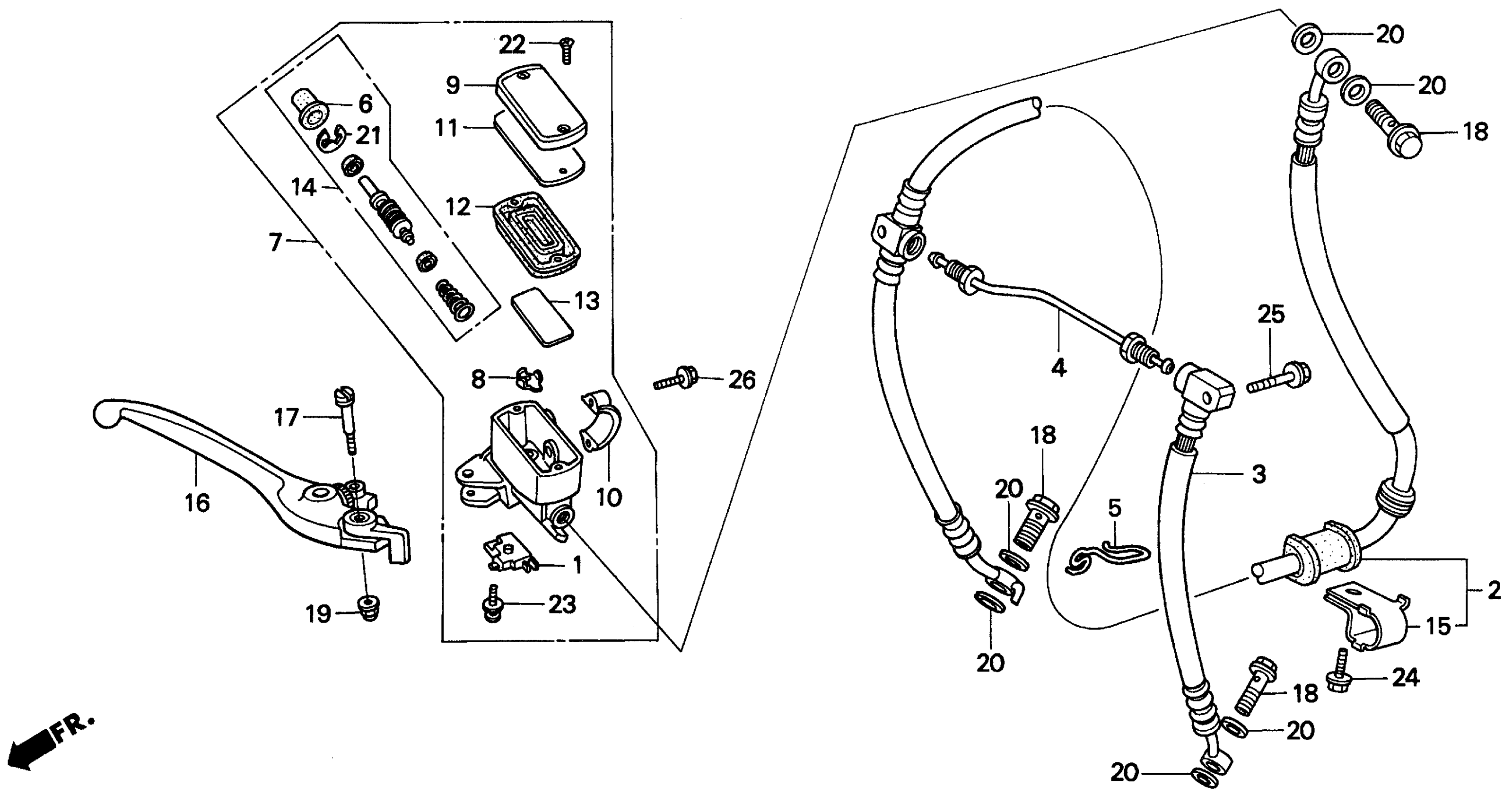

Honda CBR1000FA (96) MOTORCYCLE, JPN, VIN# JH2SC240-TM500001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, R. FR. BRAKE MAIN

45124-MZ2-003

Unavailable

3

HOSE, L. FR. BRAKE MAIN

45125-MZ2-003

Unavailable

4

PIPE, FR. BRAKE MAIN JOINT

45129-MZ2-000

Unavailable

5

CLAMP, L. FR. BRAKE HOSE

45159-MZ2-000

Unavailable

6

BOOT

45504-410-003

$12.16

7

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MZ2-305

Unavailable

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$22.41

9

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

10

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

11

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

12

DIAPHRAGM

45520-MM5-006

$15.12

13

FLOAT, FR. MASTER CYLINDER

45523-MV9-006

Unavailable

14

MASTER CYLINDER SET

45530-MG9-951

$62.90

15

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

16

LEVER ASSY., R. HANDLE

53170-MW0-006

$42.40

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

NUT, CAP

90201-428-900

$2.23

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

CIRCLIP

90651-MA5-671

$2.66

22

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

23

SCREW-WASHER (4X12)

93893-04012-08

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

24

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

25

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

26

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
