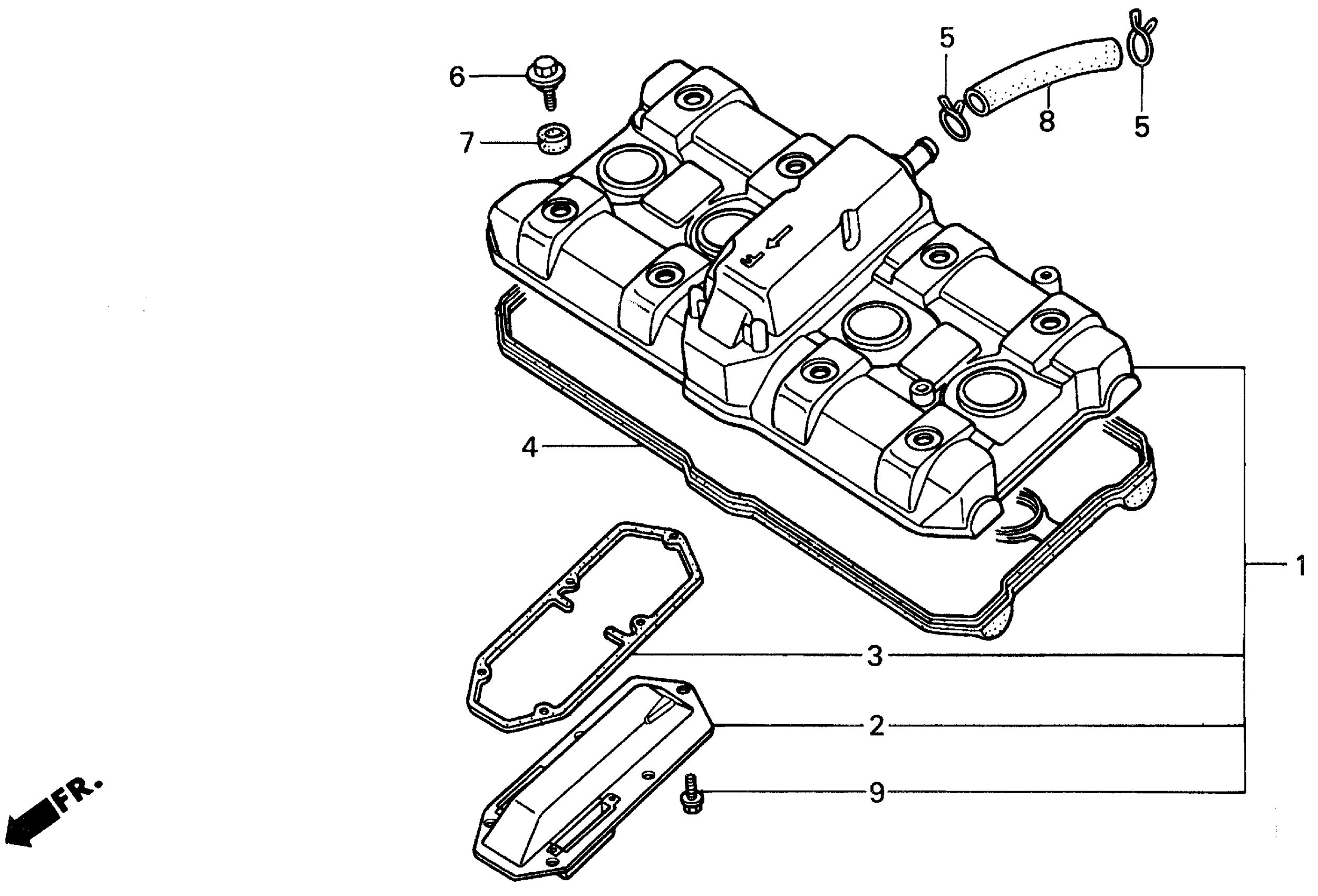

Honda CBR1000FA (96) MOTORCYCLE, JPN, VIN# JH2SC240-TM500001 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12300-MZ2-610

Unavailable

PLATE, BREATHER

12321-MM5-640

Unavailable

GASKET, BREATHER PLATE

12322-MW7-650

Unavailable

GASKET, CYLINDER HEAD COVER

12391-MM5-000

Unavailable

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

BOLT, HEAD COVER This part replaces 90017-KT7-010.

90017-MY9-790

$6.69

RUBBER, MOUNTING

90543-MV9-670

$4.94

BULK HOSE, VACUUM (14X1000) (14X155)

95005-14001-10M

$70.38

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
