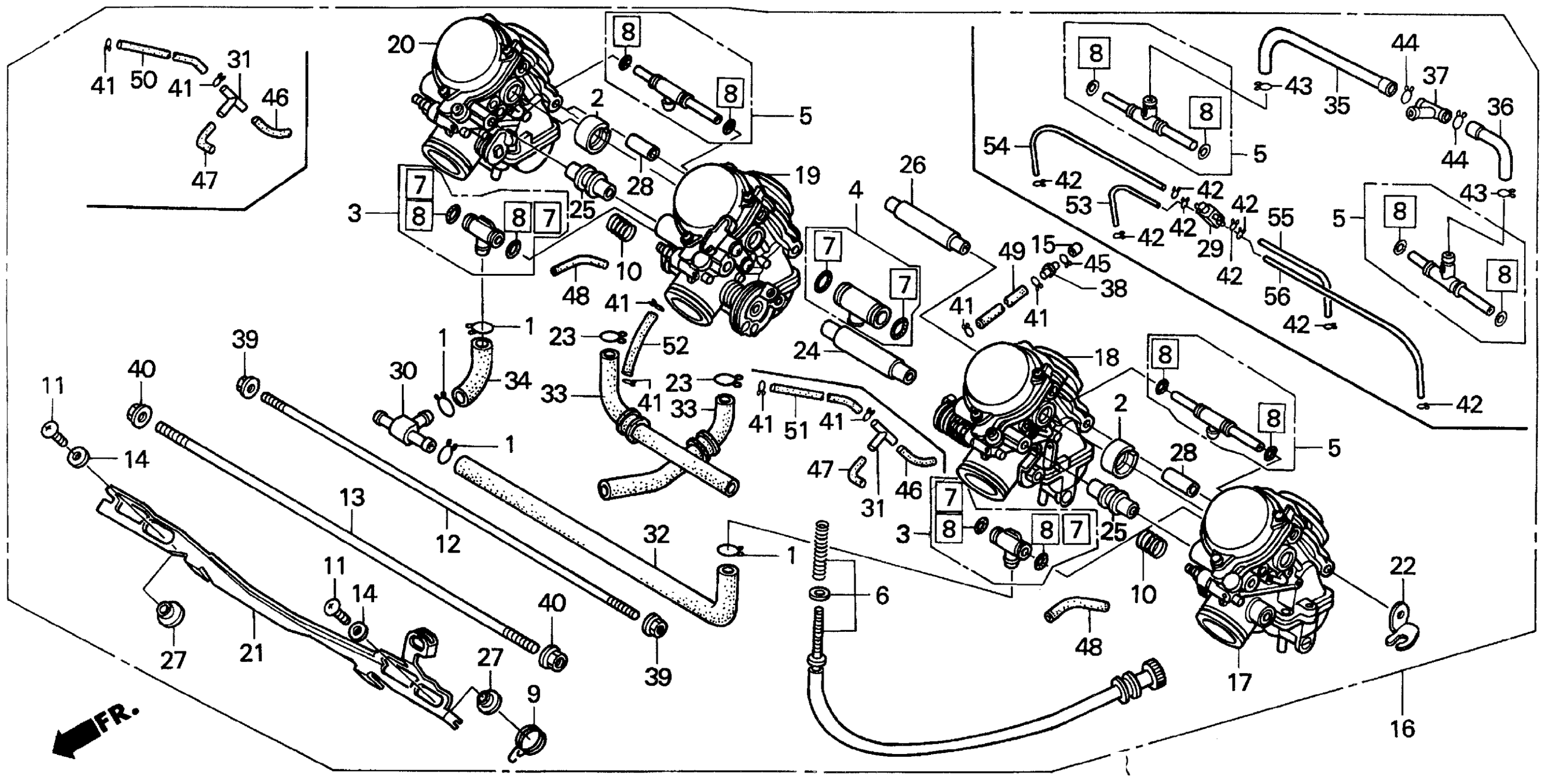

Honda CBR1000FA (96) MOTORCYCLE, JPN, VIN# JH2SC240-TM500001 CARBURETOR ASSY. Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.80

2

JOINT

16024-KAZ-000

$26.32

3

JOINT SET This part replaces 16024-MV9-670.

16024-MZ2-E00

$27.98

3

JOINT SET

16024-MZ2-E00

$27.98

4

JOINT SET This part replaces 16024-MZ1-000.

16027-MZ2-E00

Unavailable

4

JOINT SET

16027-MZ2-E00

Unavailable

5

JOINT SET This part replaces 16026-MW0-600.

16026-MZ2-E00

$34.30

5

JOINT SET

16026-MZ2-E00

$34.30

6

SCREW SET

16029-MZ2-E00

Unavailable

6

SCREW SET This part replaces 16029-MZ2-600.

16029-MZ2-E00

Unavailable

7

GASKET SET B This part replaces 16039-MV9-670.

16040-MZ1-790

$11.53

7

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$11.53

7

GASKET SET B

16040-MZ1-790

$11.53

8

GASKET SET B This part replaces 16040-MV4-000.

16040-MZ1-790

$11.53

8

GASKET SET B

16040-MZ1-790

$11.53

9

SPRING, TORSION COIL

16051-MZ2-610

Unavailable

10

SPRING, COMPRESSION COIL

16053-MA6-003

$8.26

11

SCREW, TRUSS (4X8)

16081-KAZ-000

$2.88

12

BOLT

16083-MZ2-610

Unavailable

13

BOLT

16084-MZ2-610

Unavailable

14

WASHER, PLAIN

16085-MV4-000

$2.67

15

CAP

16097-ME9-671

Unavailable

16

CARBURETOR ASSY. (VP83D A)

16100-MZ2-670

Unavailable

17

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-MZ2-670

Unavailable

18

CARBURETOR ASSY. 2

16102-MZ2-670

Unavailable

19

CARBURETOR ASSY. 3

16103-MZ2-670

Unavailable

20

CARBURETOR ASSY. 4 (NOT AVAILABLE)

16104-MZ2-670

Unavailable

21

LEVER, STARTER

16120-MZ2-610

Unavailable

22

PLATE, STAY

16129-MZ2-610

Unavailable

23

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.65

24

COLLAR

16172-MZ1-000

Unavailable

25

COLLAR

16172-MZ2-610

Unavailable

26

COLLAR

16173-MZ1-000

Unavailable

27

COLLAR

16175-MZ1-000

$12.27

28

PIN, DOWEL (7.9X20) This part replaces 16178-MV4-000.

16178-MAS-600

$7.10

30

T-JOINT

16180-MM5-601

$19.71

32

TUBE

16195-MZ2-610

Unavailable

33

TUBE

16197-MZ2-650

Unavailable

34

TUBE

16197-MZ2-610

Unavailable

38

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$7.04

39

NUT, FLANGE (5MM)

94050-05000

$1.19

40

NUT, FLANGE (6MM)

94050-06000

$0.59

41

CLIP, TUBE (B7)

95002-02079

$1.09

45

CLIP, TUBE (B6.5)

95002-02659

$1.00

49

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$8.69
