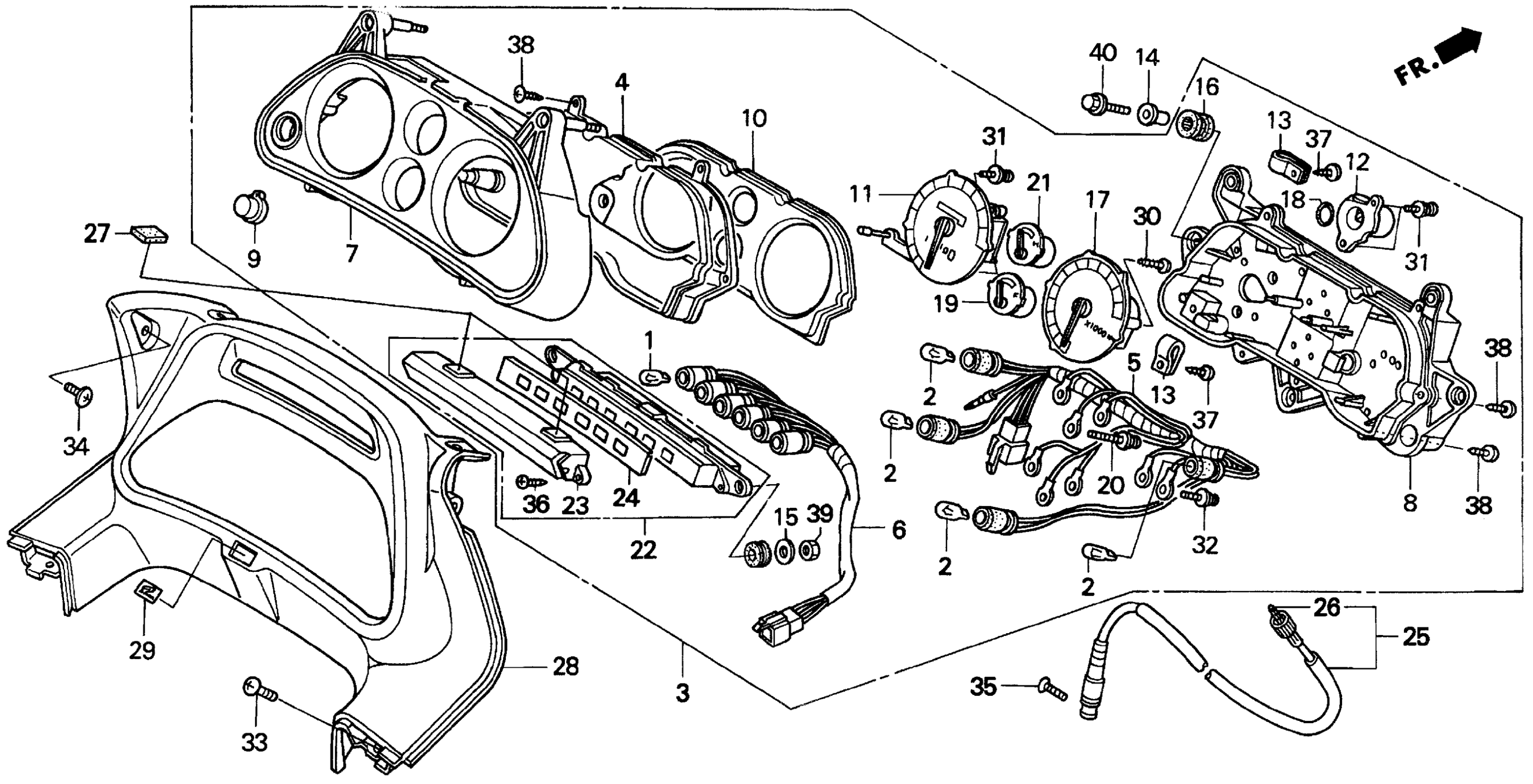

Honda CBR1000FA (95) MOTORCYCLE, JPN, VIN# JH2SC240-SM400001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

3

METER ASSY., COMBINATION (MPH/KMH)

37100-MZ2-671

Unavailable

4

LENS ASSY., METER

37102-MS2-601

Unavailable

5

SOCKET

37105-MT3-003

$61.00

6

SOCKET, PILOT BOX

37106-MZ2-003

Unavailable

7

VISOR ASSY.

37110-MZ2-003

Unavailable

8

CASE ASSY.

37111-MT3-003

$95.07

9

KNOB

37112-MT3-003

Unavailable

10

PLATE, REFLECTING

37130-MM5-008

Unavailable

11

SPEEDOMETER ASSY.

37200-MZ2-671

Unavailable

12

BOSS, ELBOW

37211-MR7-008

Unavailable

13

CLAMP

37215-MB6-831

$2.65

14

COLLAR, SPEEDOMETER MOUNTING

37243-MBB-000

Unavailable

14

COLLAR, SPEEDOMETER MOUNTING This part replaces 37243-MM4-000.

37243-MBB-000

Unavailable

15

WASHER, PLAIN

37244-MA6-008

$2.15

16

RUBBER, METER MOUNTING

37244-MB2-008

$6.87

17

TACHOMETER ASSY.

37250-MZ2-671

Unavailable

18

SEAL

37264-MR7-008

$3.49

19

METER ASSY., FUEL

37300-MS2-601

Unavailable

20

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

21

METER ASSY., TEMPERATURE

37400-MS2-601

Unavailable

22

BOX ASSY., PILOT

37600-MZ2-671

Unavailable

23

LENS, SMOKE

37601-MY3-781

Unavailable

24

PANEL

37602-MS2-601

Unavailable

25

CABLE, SPEEDOMETER

44830-GC8-000

Unavailable

26

CABLE (INNER)

44831-GC8-000

Unavailable

27

RUBBER, OIL TANK

55101-GZ9-000

Unavailable

28

PANEL, METER *NH154R* (TASMAN GRAY)

64570-MZ2-000ZA

Unavailable

29

EMBLEM, WING MARK

86150-MN8-300

$16.90

30

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

30

SCREW, TAPPING (4X3)

90133-SG0-A01

Unavailable

31

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

32

SCREW-WASHER (3X10)

90108-GN2-008

$2.41

33

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

34

SCREW, TRUSS (METER VISOR)

90133-SD4-000

$1.97

35

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

36

SCREW, TAPPING (4X16)

93901-24410

$1.49

37

SCREW, TAPPING (4X12)

93903-24320

$1.49

38

SCREW, TAPPING (4X20)

93903-24520

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM)

94001-06200-0S

$1.49

40

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
