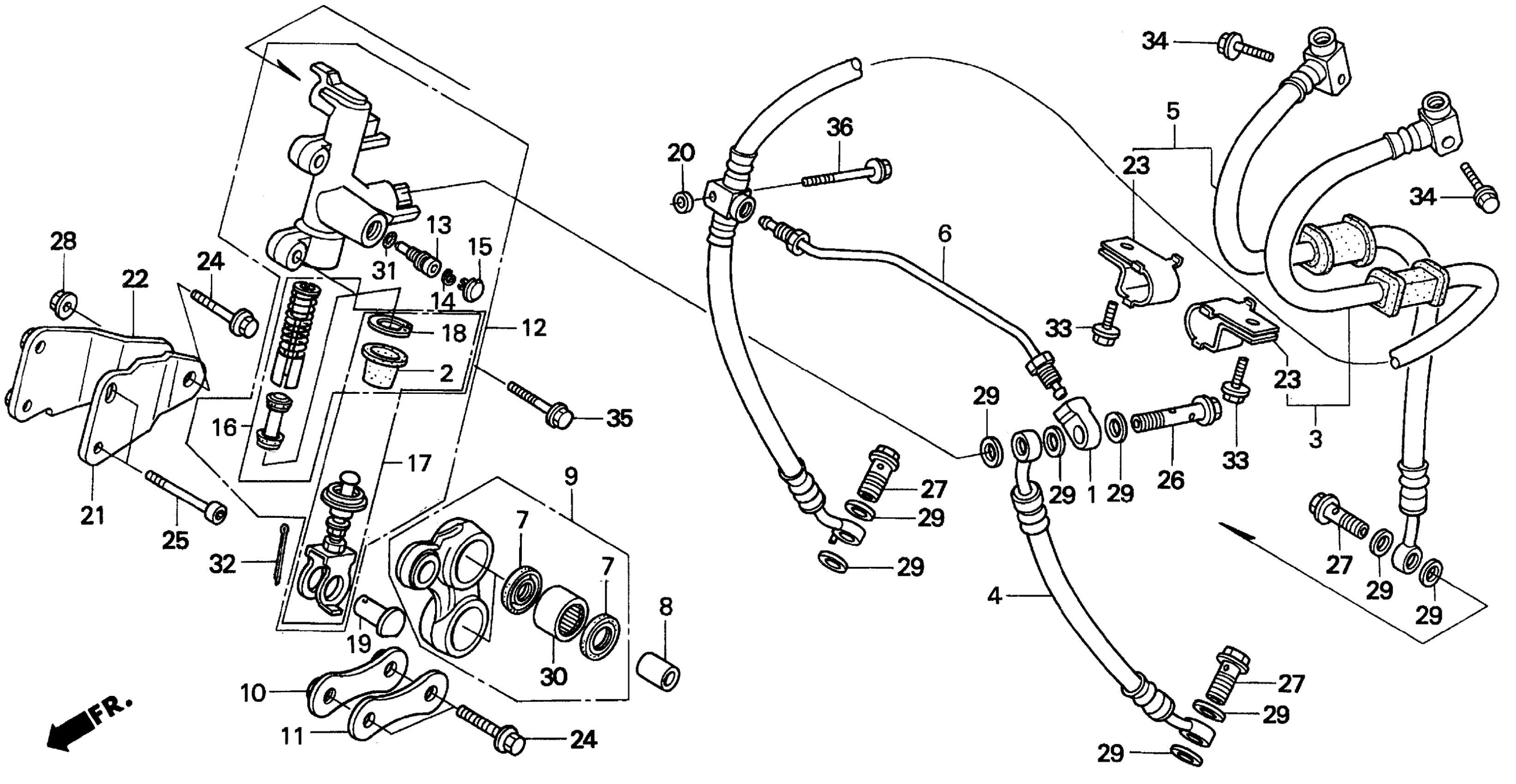

Honda CBR1000FA (94) MOTORCYCLE, JPN, VIN# JH2SC240-RM300002 SECOND MASTER CYLINDER Diagram

#

Description
Price

1

JOINT A, MASTER CYLINDER PIPE

43321-MY4-003

$39.13

2

BOOT

43504-MB2-006

$10.04

3

SUB-HOSE, R. FR. BRAKE

45126-MZ2-003

Unavailable

4

SUB-HOSE, L. FR. BRAKE

45127-MZ2-003

Unavailable

5

HOSE, SECOND MASTER CYLINDER

45128-MZ2-003

Unavailable

6

SUB-PIPE, FR. BRAKE JOINT

45130-MZ2-000

Unavailable

7

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

8

COLLAR, CONNECTING ROD

45442-MZ2-000

Unavailable

9

ARM SET, SECOND MASTER CYLINDER

45459-MZ2-305

Unavailable

10

PLATE A, CONNECTING ROD

45461-MZ2-000

Unavailable

11

PLATE B, CONNECTING ROD

45462-MZ2-000

Unavailable

12

MASTER CYLINDER ASSY., SECOND (NISSIN)

45600-MZ2-891

Unavailable

13

SCREW, PLUG

45603-MZ2-006

Unavailable

14

CLIP, SPRING

45612-MZ2-006

Unavailable

15

PLUG, SECOND MASTER CYLINDER

45613-MZ2-006

Unavailable

16

PISTON SET, SECOND MASTER CYLINDER

45620-MZ2-306

Unavailable

17

JOINT SET, BRAKE ROD

45630-MZ2-305

Unavailable

18

CIRCLIP

46182-500-013

$4.90

19

PIN, BRAKE ROD

46503-MZ2-000

Unavailable

21

PLATE A, PIVOT

51481-MZ2-000

Unavailable

22

PLATE B, PIVOT

51482-MZ2-000

Unavailable

23

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

24

BOLT, FLANGE (8X35) This part replaces 90131-MZ2-000.

90135-MZ2-000

$9.18

24

BOLT, FLANGE (8X35)

90135-MZ2-000

$9.18

25

BOLT, SOCKET (8X55)

90134-MZ2-000

Unavailable

26

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

26

BOLT, OIL (10X34)

90145-MR8-014

$7.28

27

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

27

BOLT, OIL (10X22)

90145-MS9-612

$7.54

28

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

28

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

29

WASHER, OIL BOLT

90545-300-000

$3.99

30

BEARING, NEEDLE (14X20X12)

91101-KG8-003

$38.54

31

O-RING

91355-MG9-006

$3.15

32

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

32

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

32

PIN, SPLIT (2.0X22)

94201-20220

$1.49

32

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

32

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

32

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

32

PIN, SPLIT (2.0X35)

94201-20350

$1.49

32

PIN, COTTER (2.0X22)

94201-29220

$1.49

33

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

34

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

35

BOLT, FLANGE (6X30)

95801-06030-07

$1.89

36

BOLT, FLANGE (6X40)

95801-06040-07

$1.89
