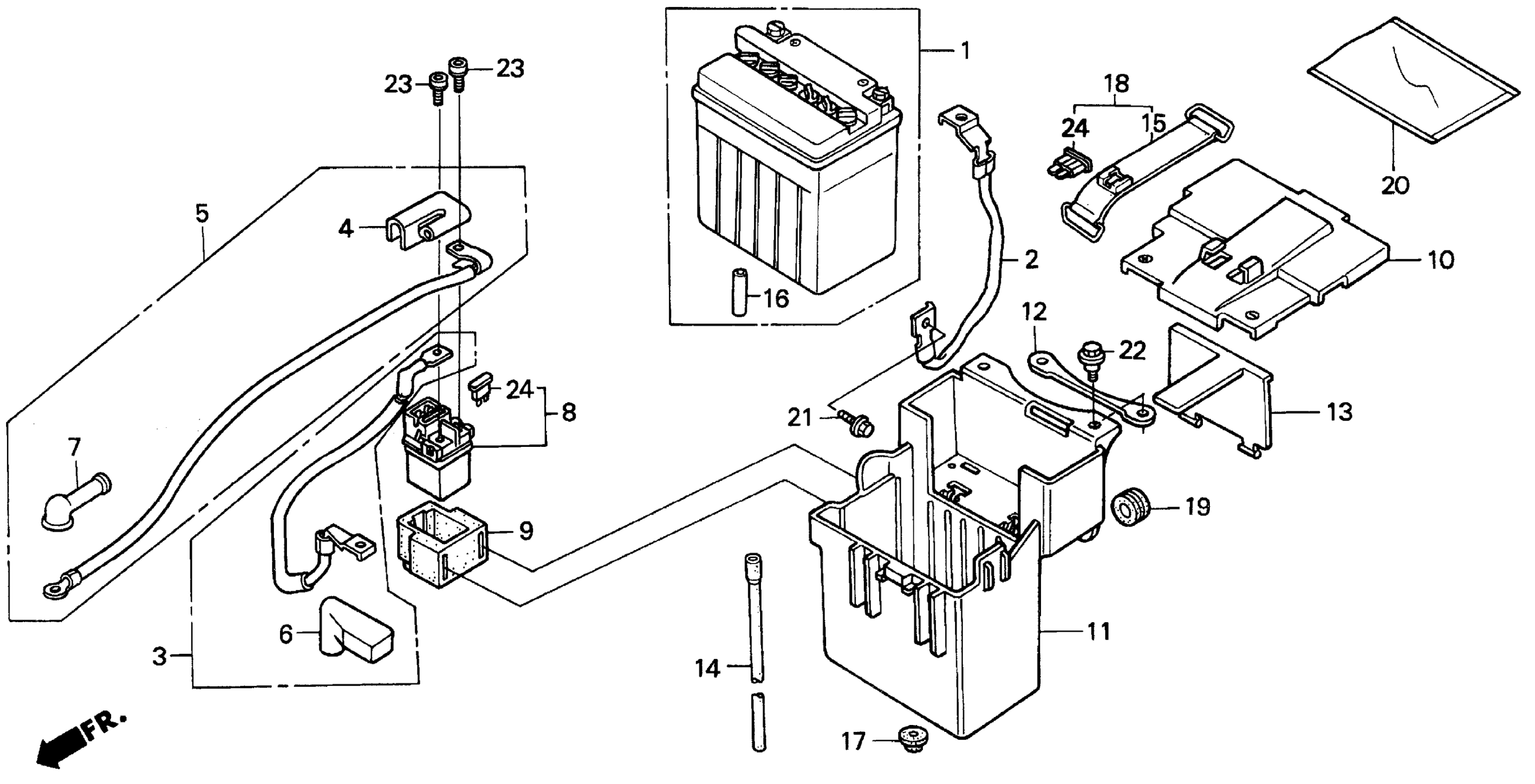

Honda CBR1000FA (94) MOTORCYCLE, JPN, VIN# JH2SC240-RM300002 BATTERY Diagram

#

Description
Price

1

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-674.

31500-MM5-675AH

Unavailable

1

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-675.

31500-MM5-675AH

Unavailable

1

BATTERY (YB14L-B2) (YUASA)

31500-MM5-675AH

Unavailable

2

CABLE, GROUND

32350-MZ2-000

Unavailable

3

CABLE, STARTER MAGNETIC SWITCH

32401-MZ2-000

Unavailable

4

COVER A, STARTER MAGNETIC TERMINAL

32406-MR5-000

Unavailable

5

CABLE, STARTER MOTOR

32410-MZ2-000

Unavailable

6

COVER, BATTERY

32411-MM5-000

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

8

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$120.16

9

RUBBER, SHOCK ABSORBER

35856-MW6-610

$10.46

10

LID A, BATTERY BOX

50324-MS2-000

Unavailable

11

BOX, BATTERY

50325-MS2-000

Unavailable

12

PLATE, BATTERY BOX SETTING

50327-MS2-000

Unavailable

13

LID B, BATTERY BOX

50328-MS2-000

Unavailable

14

TUBE, BATTERY

50329-MM5-000

Unavailable

15

BAND, BATTERY

50330-MM5-000

Unavailable

16

TUBE A, BATTERY

50331-MW7-000

Unavailable

17

GROMMET, BATTERY BOX

50332-MM5-000

Unavailable

18

BAND ASSY., BATTERY

50335-MM5-000

Unavailable

19

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

20

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

21

BOLT, FLANGE (6X8) (NOT AVAILABLE)

90014-460-000

Unavailable

22

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

23

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

24

FUSE, BLADE (30A)

98200-33000

$1.49
