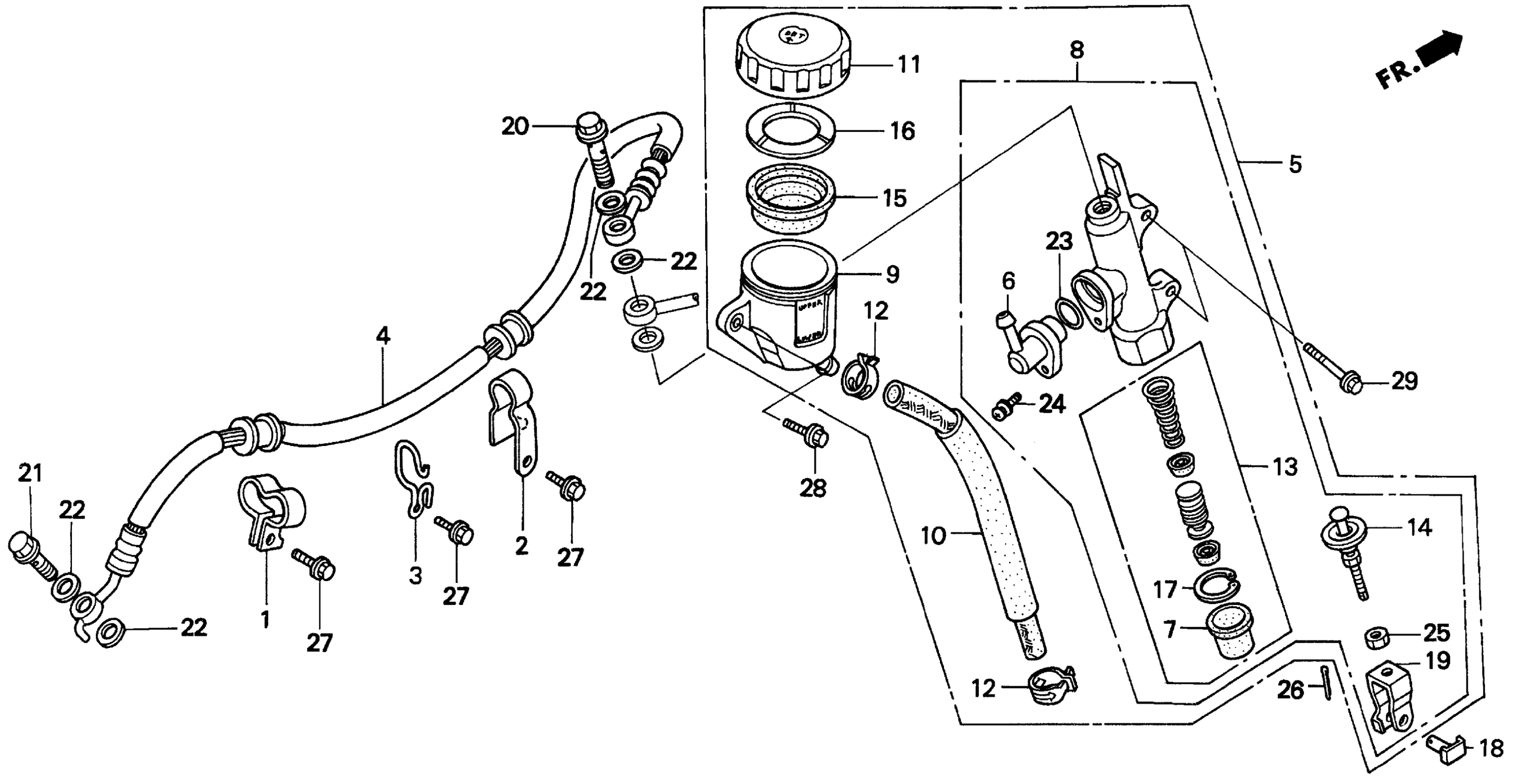

Honda CBR1000FA (93) MOTORCYCLE, JPN, VIN# JH2SC240-PM200002 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP A, RR. BRAKE HOSE

43156-MZ2-000

Unavailable

2

CLAMP B, RR. BRAKE HOSE

43157-MZ2-000

Unavailable

3

CLIP, RR. BRAKE HOSE

43159-MZ2-000

Unavailable

4

HOSE, RR. BRAKE MAIN

43310-MZ2-003

Unavailable

5

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN) (NA USE ALT:43510-MZ2-305)

43500-MZ2-006

Unavailable

6

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

7

BOOT

43504-MB2-006

$10.04

9

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

10

HOSE, MASTER CYLINDER

43512-MS2-006

Unavailable

11

CAP, OIL CUP

43513-MY1-006

$29.39

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

13

PISTON SET, MASTER CYLINDER

43520-MZ2-305

$89.75

14

ROD, PUSH

43530-MM5-006

$27.69

15

DIAPHRAGM

45520-300-000

$9.05

16

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

17

CIRCLIP

46182-500-013

$4.90

18

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$4.24

18

PIN D, JOINT

95015-54000

$4.24

19

JOINT, BRAKE ROD

46504-MT4-006

$9.92

20

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

20

BOLT, OIL (10X34)

90145-MR8-014

$7.28

21

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

21

BOLT, OIL (10X22)

90145-MS9-612

$7.54

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

O-RING (14.8X2.4)

91212-422-006

$2.56

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

NUT, HEX. (8MM)

94002-08000-0S

$1.49

26

PIN, SPLIT (2.0X12)

94201-20120

$1.49

27

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

29

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
