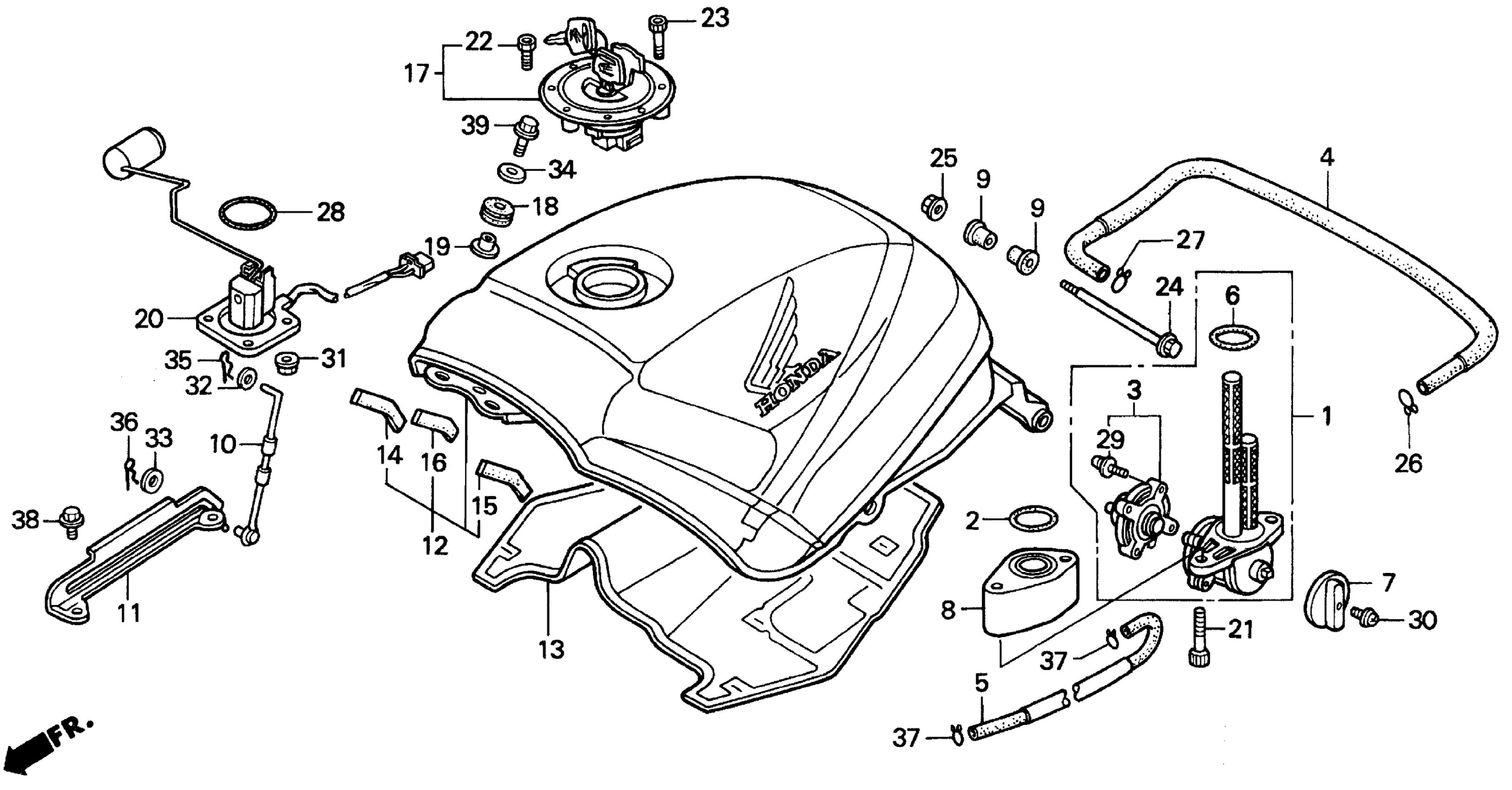

Honda CBR1000FA (93) MOTORCYCLE, JPN, VIN# JH2SC240-PM200002 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-MZ2-000.

16950-MZ2-790

Unavailable

1

PETCOCK ASSY. This part replaces 16950-MZ2-010.

16950-MZ2-790

Unavailable

1

PETCOCK ASSY.

16950-MZ2-790

Unavailable

2

O-RING

16952-MS2-000

Unavailable

3

COVER SET, PETCOCK

16953-MBZ-B51

$47.29

3

COVER SET, PETCOCK This part replaces 16953-MV9-000.

16953-MBZ-B51

$47.29

4

TUBE, FUEL

16955-MS2-000

Unavailable

5

TUBE, VACUUM

16956-MS2-000

Unavailable

6

O-RING

16958-KY6-003

$3.80

7

LEVER, PETCOCK

16965-MS2-010

Unavailable

8

SPACER, FUEL VALVE

17504-MS2-000

Unavailable

9

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.09

10

ROD, TANK OPEN

17515-MM4-000

Unavailable

11

SLIDER, TANK ROD

17516-MM5-000

Unavailable

12

TANK SET, FUEL (TYPE15) (WL)

17520-MZ2-670ZA

Unavailable

13

PROTECTOR, FUEL TANK HEAT

17525-MW7-000

Unavailable

14

TAPE, R. TANK GUARD

17553-MW7-300

Unavailable

15

TAPE, L. TANK GUARD

17554-MW7-300

Unavailable

16

TAPE B, TANK GUARD

17555-MS2-300

Unavailable

17

CAP COMP.,FUEL FILL This part replaces 17620-MT4-010.

17620-MT4-040

Unavailable

17

CAP COMP.,FUEL FILL This part replaces 17620-MT4-020.

17620-MT4-040

Unavailable

18

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

19

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

20

FUEL UNIT

37800-MZ2-000

Unavailable

21

BOLT, SOCKET (6X45)

90008-KN8-730

Unavailable

22

BOLT, SOCKET (4X6)

90073-MT4-000

$3.57

23

BOLT, SOCKET (4X21)

90074-MT4-000

$2.83

24

BOLT, TANK HINGE

90135-MS2-000

$5.80

25

NUT, U (6MM)

90301-473-003

$3.79

26

CLAMP, TUBE (12.0MM) (B)

90661-GHB-600

Unavailable

27

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.48

28

O-RING (39.5X5)

91305-MC7-000

Unavailable

29

SCREW-WASHER (4X16)

93892-04016-08

$0.67

29

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.67

30

SCREW-WASHER (5X10)

93893-05010-07

$1.19

31

NUT, FLANGE (6MM)

94050-06000

$0.59

32

WASHER, PLAIN (5MM)

94101-05000

$0.90

33

WASHER, PLAIN (5MM)

94103-05000

$0.57

34

WASHER, PLAIN (6MM)

94103-06700

$0.65

35

PIN, LOCK (5MM)

94251-05000

$0.94

36

PIN, LOCK (8MM)

94251-08000

$1.12

37

CLIP, TUBE (B7)

95002-02070

$1.59

38

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

39

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
