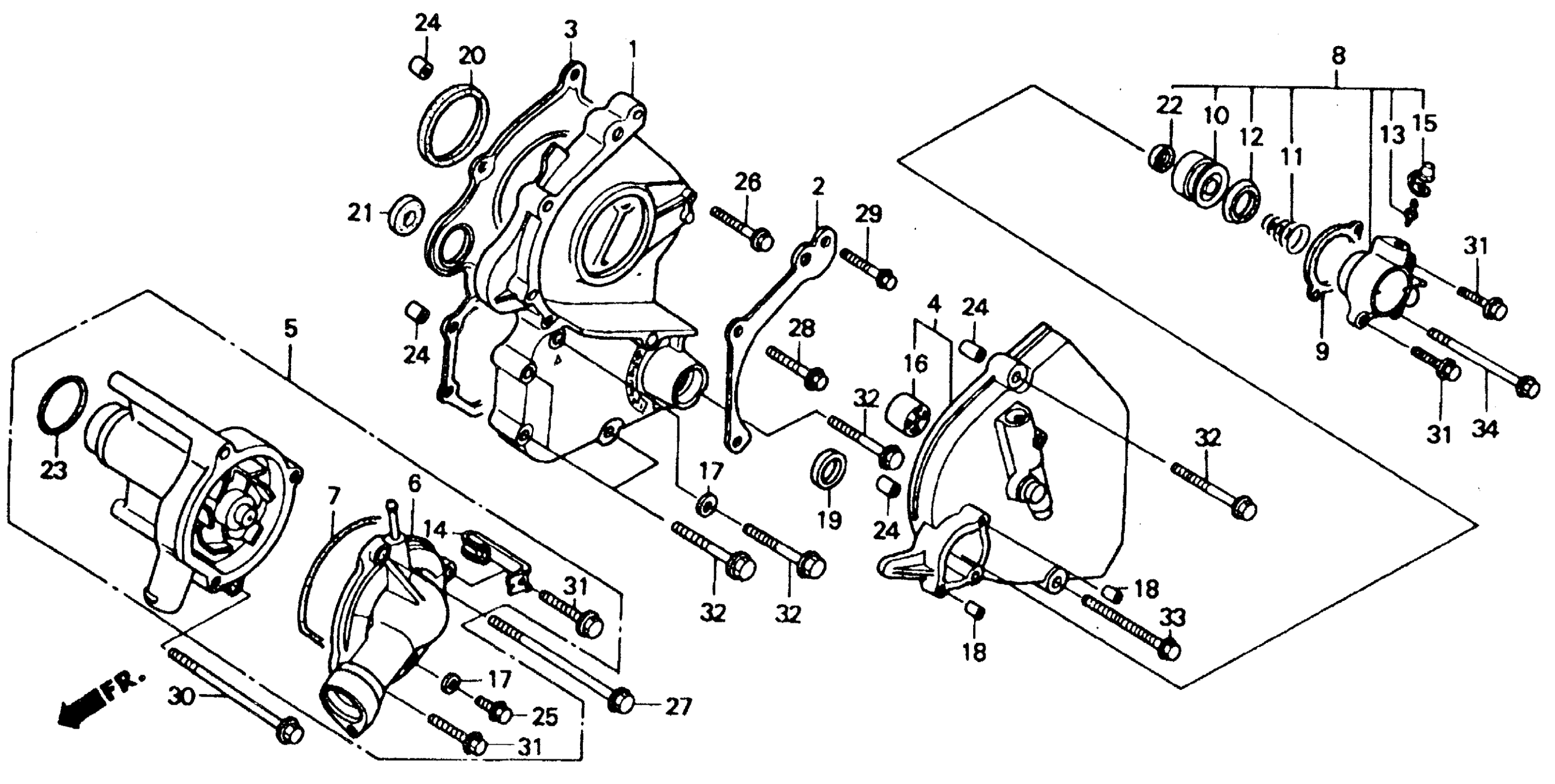

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 WATER PUMP Diagram

#

Description
Price

1

HOLDER, L. SIDE This part replaces 11360-MS2-870.

11360-MZ2-610

Unavailable

1

HOLDER, L. SIDE This part replaces 11360-MW7-790.

11360-MZ2-610

Unavailable

1

HOLDER, L. SIDE

11360-MZ2-610

Unavailable

2

PLATE, DRIVE CHAIN GUIDE

11365-MM5-000

Unavailable

3

GASKET, L. SIDE (NOT AVAILABLE) This part replaces 11394-MS2-611.

11394-MW7-790

Unavailable

3

GASKET, L. SIDE

11394-MW7-790

Unavailable

4

COVER ASSY., L. RR. CRANKCASE This part replaces 11650-MS2-610.

11650-MZ2-610

Unavailable

4

COVER ASSY., L. RR. CRANKCASE This part replaces 11650-MW7-790.

11650-MZ2-610

Unavailable

4

COVER ASSY., L. RR. CRANKCASE

11650-MZ2-610

Unavailable

5

WATER PUMP This part replaces 19200-MS2-610.

19200-MS2-611

Unavailable

5

WATER PUMP

19200-MS2-611

Unavailable

6

COVER, WATER PUMP

19221-MM5-010

Unavailable

7

GASKET, WATER PUMP COVER

19226-MM5-003

$5.44

8

CYLINDER ASSY., CLUTCH SLAVE

22860-MS2-870

Unavailable

9

GASKET, SLAVE CYLINDER This part replaces 22862-KE7-000.

22862-MGJ-D00

$4.98

9

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.98

10

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

11

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

12

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

13

SCREW, BLEEDER

22866-MF2-711

$5.12

14

CLIP, SIDE STAND WIRE

32171-MS2-000

Unavailable

15

CAP, BLEEDER

43353-461-771

$5.05

16

JOINT, SPEEDOMETER

44808-MR7-013

$9.98

17

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

18

PIN, DOWEL (8X10)

91103-429-000

$2.56

19

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$3.12

20

OIL SEAL (40X55X7) (ARAI)

91205-MM5-003

$14.36

21

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.92

21

OIL SEAL (8X16X6)

91254-792-003

$2.92

22

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

23

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

24

PIN, DOWEL (8X14)

94301-08140

$2.25

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

26

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

27

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

28

BOLT, FLANGE (6X35)

95801-06035-00

$1.49

29

BOLT, FLANGE (6X40)

95801-06040-00

$1.64

30

BOLT, FLANGE (6X85)

95801-06085-00

$2.19

31

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

32

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

33

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

34

BOLT, FLANGE (6X75)

96001-06075-00

$2.23
