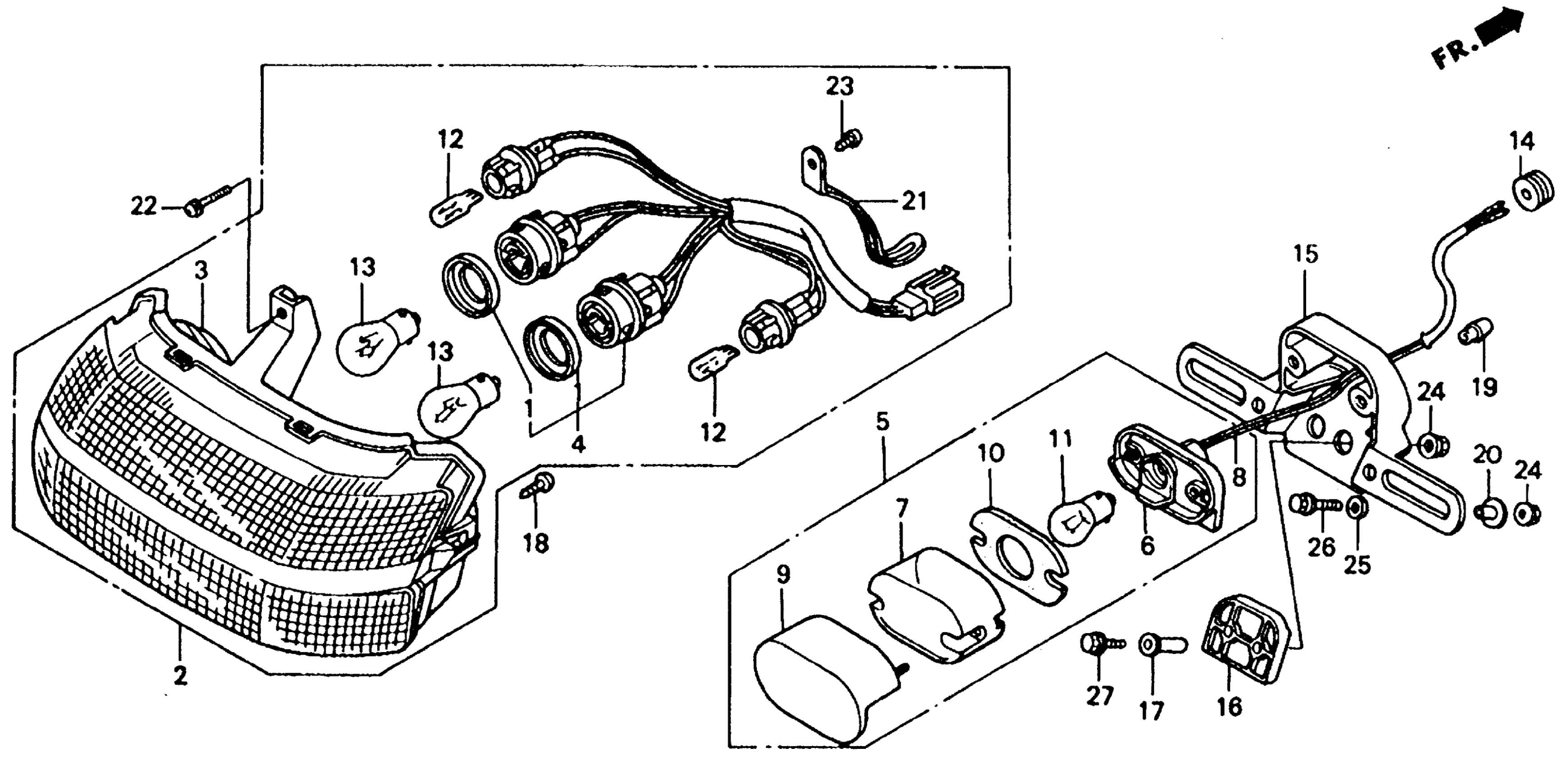

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 TAILLIGHT Diagram

GASKET, SEAL

33518-SA2-003

$4.38

TAILLIGHT UNIT *NH193P* (PEARL CRYSTAL WHITE) (NOT AVAILABLE)

33701-MS2-670ZB

Unavailable

TAILLIGHT UNIT *R109* (PASSION RED) (NOT AVAILABLE)

33701-MS2-670ZC

Unavailable

TAILLIGHT SUB-ASSY. *NH287M* (ZEUS SILVER) (NOT AVAILABLE)

33703-MS2-670ZA

Unavailable

TAILLIGHT SUB-ASSY. *R109* (PASSION RED) (NOT AVAILABLE)

33703-MS2-670ZB

Unavailable

SOCKET, TAILLIGHT

33705-MS2-670

Unavailable

LIGHT ASSY., LICENSE (12V 8W)

33720-ML7-670

Unavailable

BASE

33721-MB2-003

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

WIRE, LICENSE

33725-ML7-670

Unavailable

COVER, LICENSE (STANLEY)

33727-ME4-671

$27.26

GASKET, LENS

33729-MB1-003

$6.30

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB, WEDGE BASE (12V 5W)

34901-671-671

$3.11

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

GROMMET, CABLE

80102-323-000

Unavailable

BRACKET, NUMBER PLATE

84701-ML7-670

$41.31

SPACER, NUMBER PLATE BRACKET

84702-MS2-670

Unavailable

COLLAR, NUMBER PLATE BRACKET SETTING

84703-MS2-670

Unavailable

SCREW, TAPPING (4X16) (PO) This part replaces 90102-SA4-000.

93913-14480

$1.49

SCREW, TAPPING (4X16) (PO)

93913-14480

$1.49

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

WASHER (6X20)

90502-VA4-640

$3.23

CLIP, ENGINE SUB-WIRE

91417-PA1-010

$5.92

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW, TAPPING (5X8)

93901-35020

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
