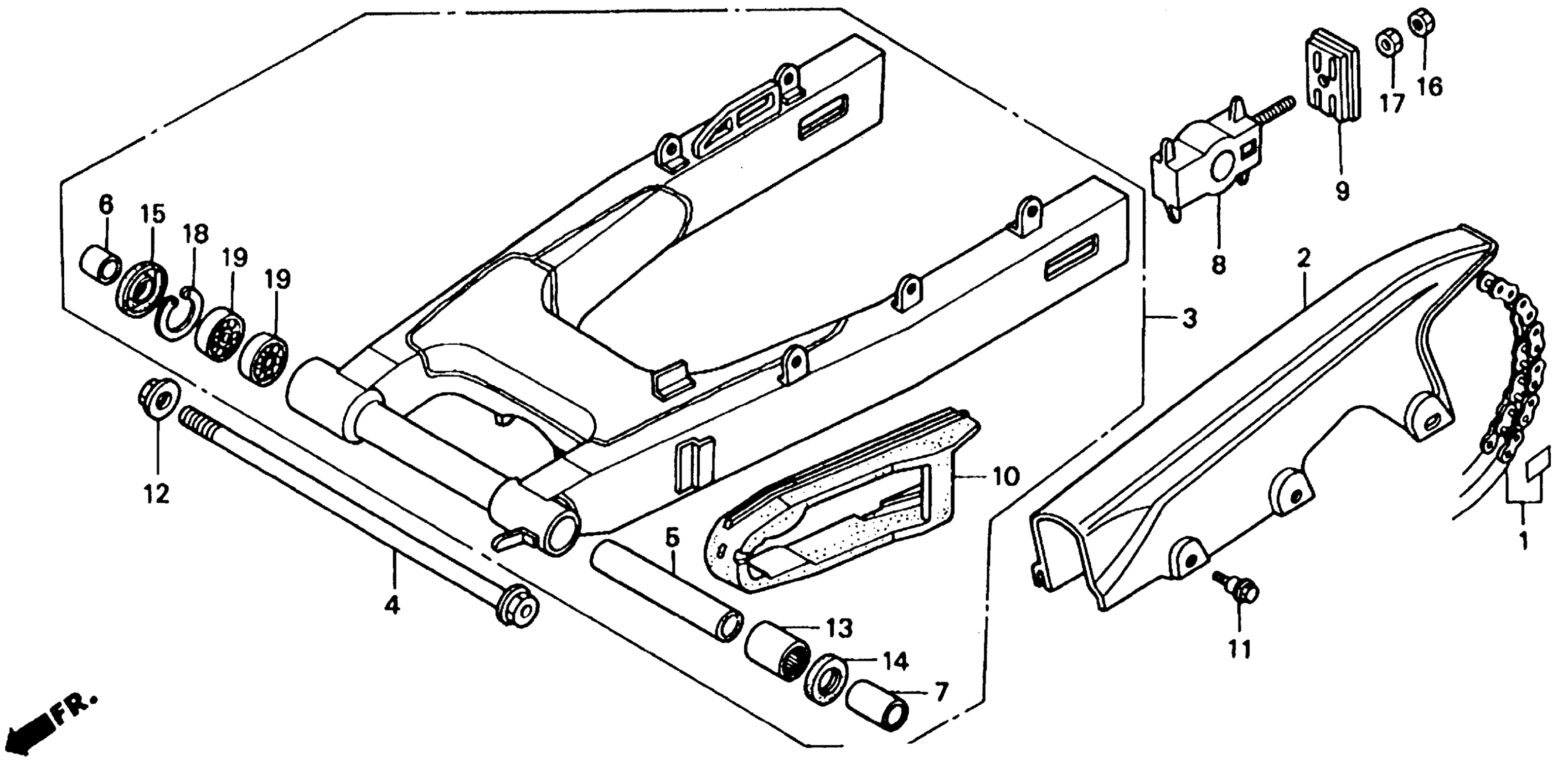

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (RK50LF0X114LE) (TAKASAGO) (NOT AVAILABLE)

405A3-MM5-670

Unavailable

1

CHAIN SET, DRIVE (DID50ZV-114LE) (DAIDO)

405A3-MS2-003

Unavailable

2

CASE, CHAIN

40510-MS2-000

Unavailable

3

SWINGARM ASSY., RR.

52100-MS2-000

Unavailable

4

BOLT, RR. SWINGARM PIVOT

52101-MM5-000

Unavailable

5

COLLAR, PIVOT DISTANCE

52102-MM5-000

Unavailable

6

COLLAR B, SWINGARM PIVOT

52105-MM2-670

Unavailable

7

COLLAR B, PIVOT

52106-ML4-000

Unavailable

8

COLLAR, CHAIN TENSIONER This part replaces 52120-MJ0-000.

52120-MJ0-010

Unavailable

8

COLLAR, CHAIN TENSIONER

52120-MJ0-010

Unavailable

9

PLATE, CHAIN TENSIONER

52121-MJ0-000

$22.28

10

SLIDER, CHAIN

52170-MM5-000

Unavailable

11

BOLT, FLANGE (6MM)

90111-187-000

$5.59

12

NUT, U (14MM)

90305-GE8-003

$3.86

12

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

13

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

13

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

14

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-003.

91205-965-003

$5.80

14

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

15

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

15

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

NUT, HEX. (8MM)

94030-08000

$1.49

18

CIRCLIP, INNER (35MM)

94520-35000

$1.84

19

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
