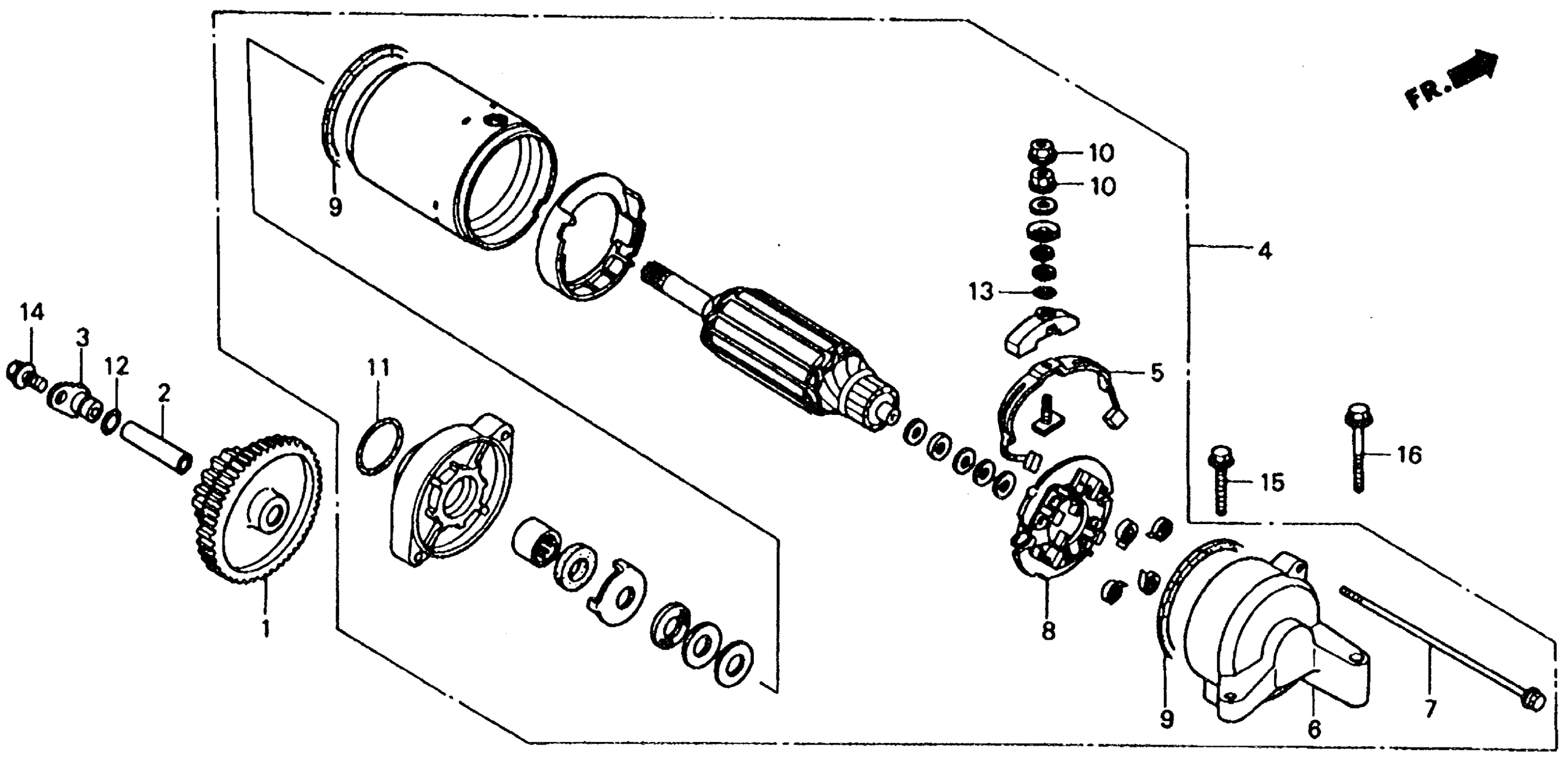

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 STARTING MOTOR Diagram

GEAR, STARTER REDUCTION (17T/68T)

28101-MM5-000

Unavailable

PIN (10X44)

28102-ME9-000

$10.35

PLATE, IDLE SHAFT SETTING

28117-MM5-000

Unavailable

STARTER MOTOR ASSY. This part replaces 31200-MS2-673.

31200-MW7-003

Unavailable

STARTER MOTOR ASSY.

31200-MW7-003

Unavailable

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

BRACKET, RR.

31203-MS2-671

Unavailable

BOLT, SETTING

31205-MR1-008

$5.26

HOLDER SET, BRUSH

31206-MR6-008

$24.58

RING

31207-KS5-901

$3.12

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING (7X1.7)

91312-107-000

$3.18

O-RING

91320-MB0-000

$2.43

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
