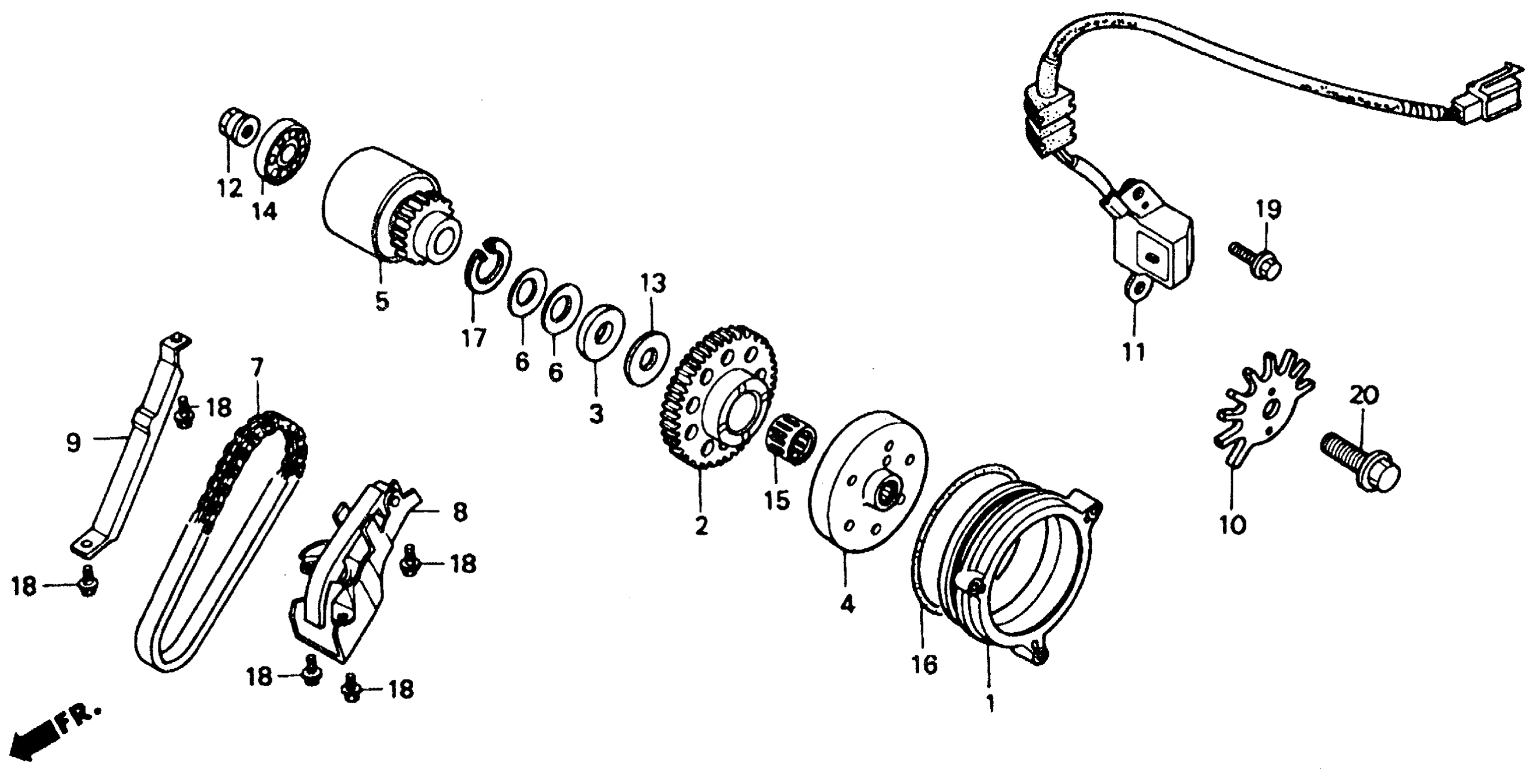

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 STARTING CLUTCH Diagram

#

Description
Price

1

BASE, ALTERNATOR

11102-MS2-610

Unavailable

2

GEAR, STARTING DRIVEN (46T)

28110-MM5-010

Unavailable

3

COLLAR, ALTERNATOR SHAFT

28115-MM5-020

Unavailable

4

CLUTCH, STARTER (OUTER) This part replaces 28120-MS2-611.

28125-MS2-613

Unavailable

4

CLUTCH, STARTER (OUTER) This part replaces 28125-MS2-612.

28125-MS2-613

Unavailable

4

CLUTCH, STARTER (OUTER)

28125-MS2-613

Unavailable

5

DAMPER ASSY., ALTERNATOR

28130-MS2-610

Unavailable

6

DISK, SPRING

28151-MM0-003

Unavailable

7

CHAIN, ALTERNATOR DRIVE (70L)

28161-MM5-013

Unavailable

8

TENSIONER ASSY., ALTERNATOR

28170-MM5-640

Unavailable

9

GUIDE, ALTERNATOR CHAIN

28191-MM5-000

Unavailable

10

ROTOR, PULSE GENERATOR (NOT AVAILABLE)

30291-MS2-610

Unavailable

11

GENERATOR ASSY., PULSE This part replaces 30300-MS2-600.

30300-MW7-003

Unavailable

11

GENERATOR ASSY., PULSE This part replaces 30300-MW7-000.

30300-MW7-003

Unavailable

11

GENERATOR ASSY., PULSE

30300-MW7-003

Unavailable

12

NUT, FLANGE (12MM)

90234-MM4-000

Unavailable

13

WASHER (20X37X2)

90404-KK0-000

$4.44

14

BEARING (17X40X12-U) This part replaces 91005-MM4-003.

91006-HA2-008

$28.76

14

BEARING (17X40X12-U)

91006-HA2-008

$28.76

15

BEARING, NEEDLE (25X30X20) (TOYO)

91106-ME5-008

$30.34

15

BEARING, NEEDLE (25X30X20) (TOYO) This part replaces 91108-634-961.

91106-ME5-008

$30.34

16

O-RING (100X2.2) (NOK) This part replaces 91303-PA9-003.

91303-PA9-004

$8.57

16

O-RING (100X2.2) (NOK)

91303-PA9-004

$8.57

17

CIRCLIP (INNER) (42MM)

94520-42000

$2.16

18

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

19

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

20

BOLT, FLANGE (10X20)

95701-10020-08

$2.25
