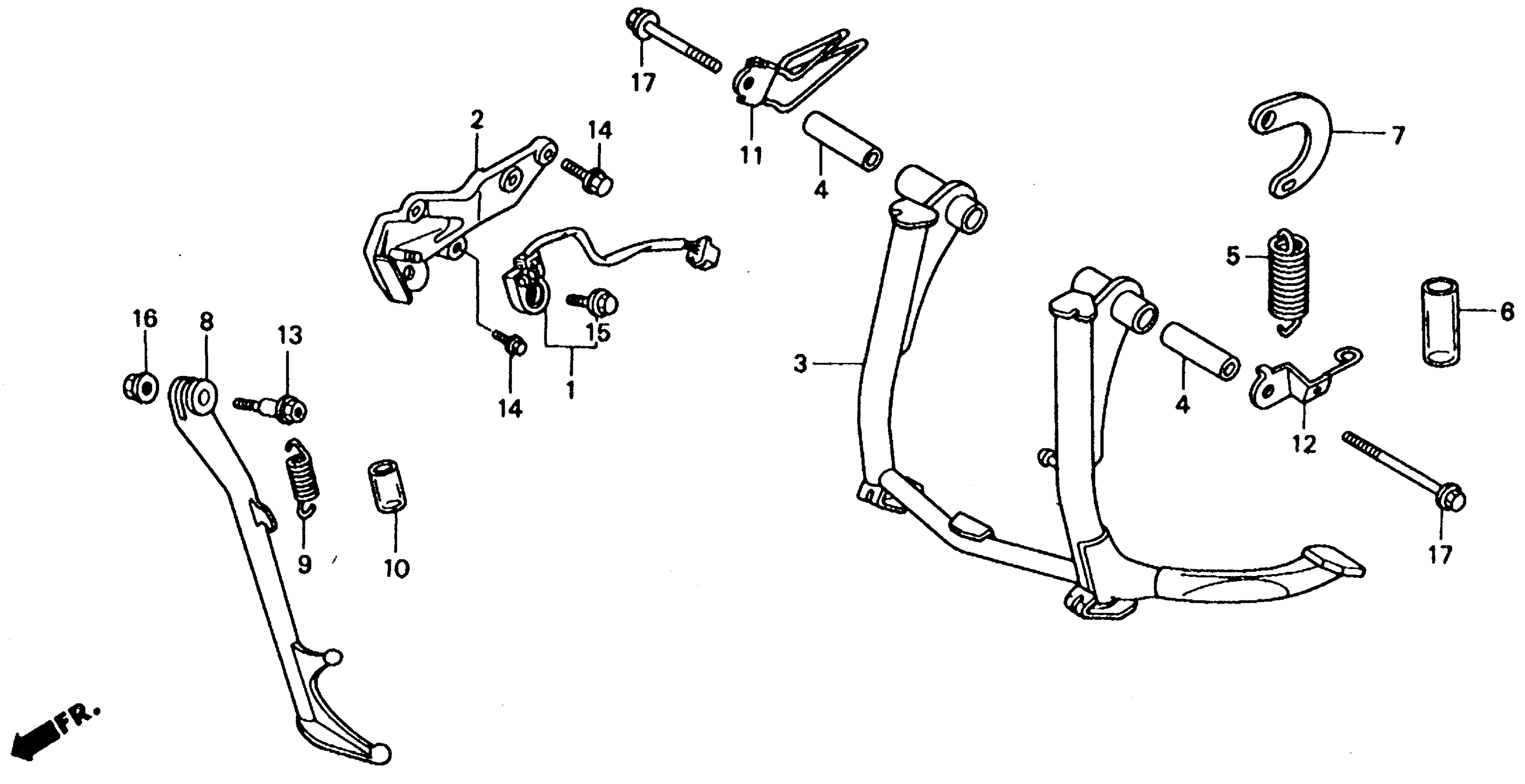

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 STAND Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND This part replaces 357A0-MS2-600.

35700-MS2-305

Unavailable

1

SWITCH SET, SIDE STAND

35700-MS2-305

Unavailable

2

BRACKET, SIDE STAND

50150-MS2-000

Unavailable

3

STAND, MAIN *NH1* (BLACK)

50500-MS2-670ZA

Unavailable

4

COLLAR, MAIN STAND

50503-MS2-000

Unavailable

5

SPRING ASSY., MAIN STAND This part replaces 50522-MM5-000.

50525-MM4-000

Unavailable

5

SPRING ASSY., MAIN STAND

50525-MM4-000

Unavailable

6

TUBE (19X23)

50523-MM4-000

$8.41

7

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

8

BAR, SIDE STAND *NH1* (BLACK)

50530-MS2-000ZA

Unavailable

8

BAR, SIDE STAND *NH1* (BLACK) This part replaces 50530-MS2-670ZA.

50530-MS2-000ZA

Unavailable

9

SPRING ASSY., SIDE STAND This part replaces 50541-MM4-000.

50542-MZ2-000

$16.18

9

SPRING ASSY., SIDE STAND

50542-MZ2-000

$16.18

10

TUBE, SIDE STAND SPRING

50543-MM4-000

Unavailable

11

GUIDE, DRAIN TUBE

64381-MS2-000

Unavailable

12

STAY, PIVOT COVER (LOWER)

64391-MS2-000

Unavailable

13

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

14

BOLT, SIDE STAND BRACKET

90145-MS2-000

Unavailable

15

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

15

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

16

NUT, SIDE STAND

90203-MF9-710

$3.67

17

BOLT, FLANGE (10X75)

95801-10075-08

$2.28
