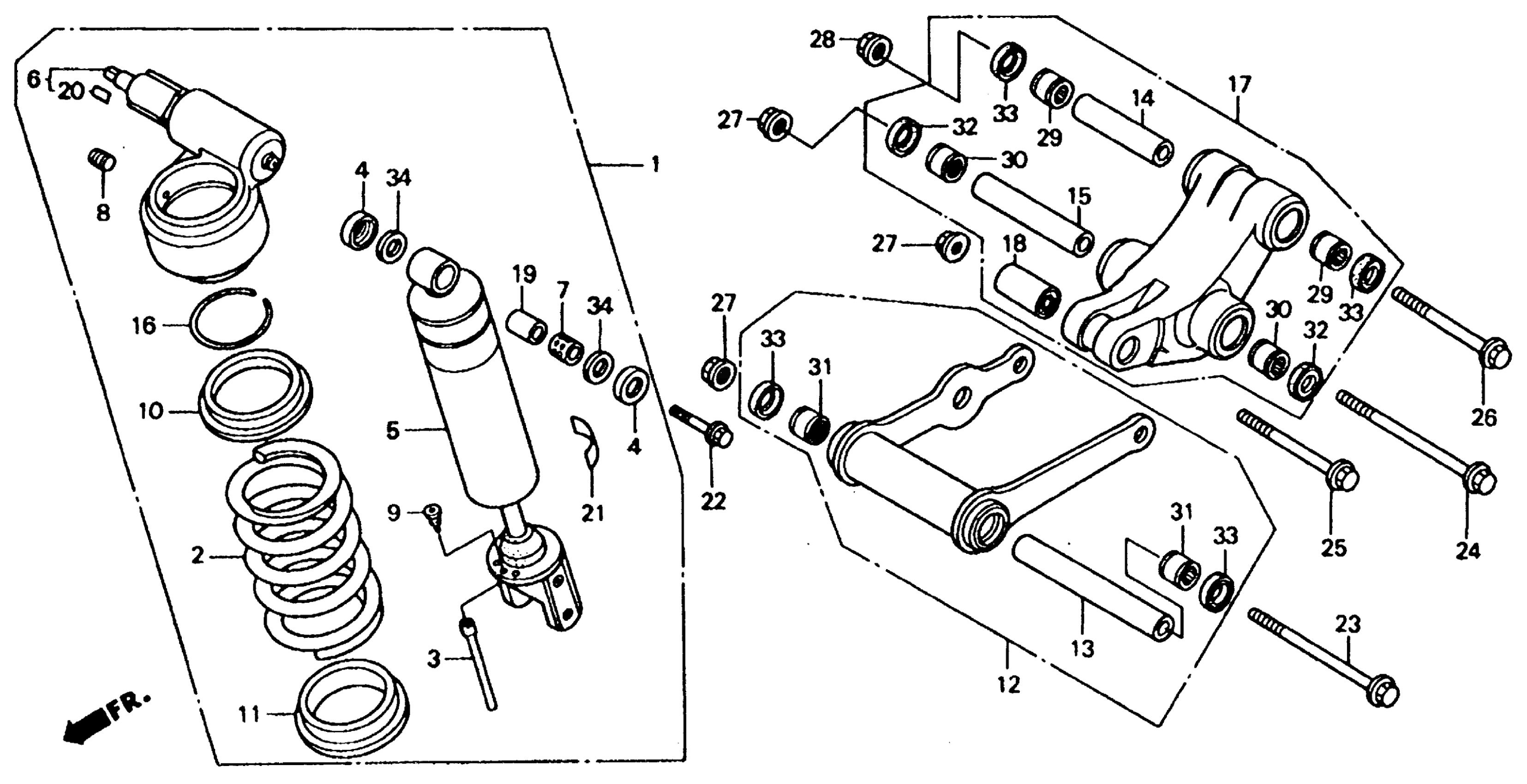

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-MS2-871

Unavailable

2

SPRING, RR. SHOCK ABSORBER (SHOWA)

52401-MS2-003

Unavailable

3

PIPE, DRAIN (NOT AVAILABLE)

52405-KB7-003

Unavailable

4

CAP, DUST SEAL

52406-KB7-003

$6.48

5

DAMPER, RR. (SHOWA)

52410-MS2-871

Unavailable

6

ADJUSTER, SPRING (SHOWA)

52420-MS2-003

Unavailable

7

BUSH, DAMPER (UPPER)

52452-KB7-003

$15.55

8

SCREW, SOCKET SETTING

52455-ML7-003

Unavailable

9

JOINT, PIPE

52456-KB7-003

Unavailable

10

SEAT, SPRING

52458-ML7-691

$21.08

11

SEAT C, SPRING (SHOWA)

52459-ML7-691

$16.10

12

ROD ASSY., SHOCK CONNECTING

52460-MS2-000

Unavailable

13

COLLAR, CONNECTING ROD PIVOT

52462-MM5-000

Unavailable

14

COLLAR, CUSHION ARM PIVOT

52463-KM3-000

Unavailable

15

COLLAR, CONNECTING ROD (LOWER)

52463-MB2-700

Unavailable

16

RING, STOPPER

52464-ML7-003

$4.72

17

ARM ASSY., SHOCK ABSORBER

52470-MM5-000

Unavailable

18

BUSH, SHOCK ABSORBER

52485-KE8-003

Unavailable

19

COLLAR, BUSH

52486-ML7-003

Unavailable

20

LABEL (SHOWA)

87503-MS2-003

Unavailable

21

LABEL, RR. DAMPER WARNING

87516-KW3-781

Unavailable

22

BOLT, FLANGE (10X47)

90153-KV0-000

Unavailable

23

BOLT, UBS (10X141)

90154-KE7-000

$5.43

24

BOLT, FLANGE (10X113)

90181-KE7-000

$13.77

25

BOLT, FLANGE (10X66)

90182-MB2-003

$9.21

26

BOLT, FLANGE (10X95)

90154-KW7-870

Unavailable

26

BOLT, FLANGE (10X95) This part replaces 90187-MG7-003.

90154-KW7-870

Unavailable

27

NUT, U (10MM)

90304-GE8-003

$3.67

28

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

29

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

30

BEARING, NEEDLE

91072-MB2-701

Unavailable

31

BEARING, NEEDLE (17X24X25)

91072-MJ0-003

$26.62

32

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

33

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

33

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56

34

DUST SEAL B

91351-KB7-003

$3.49
