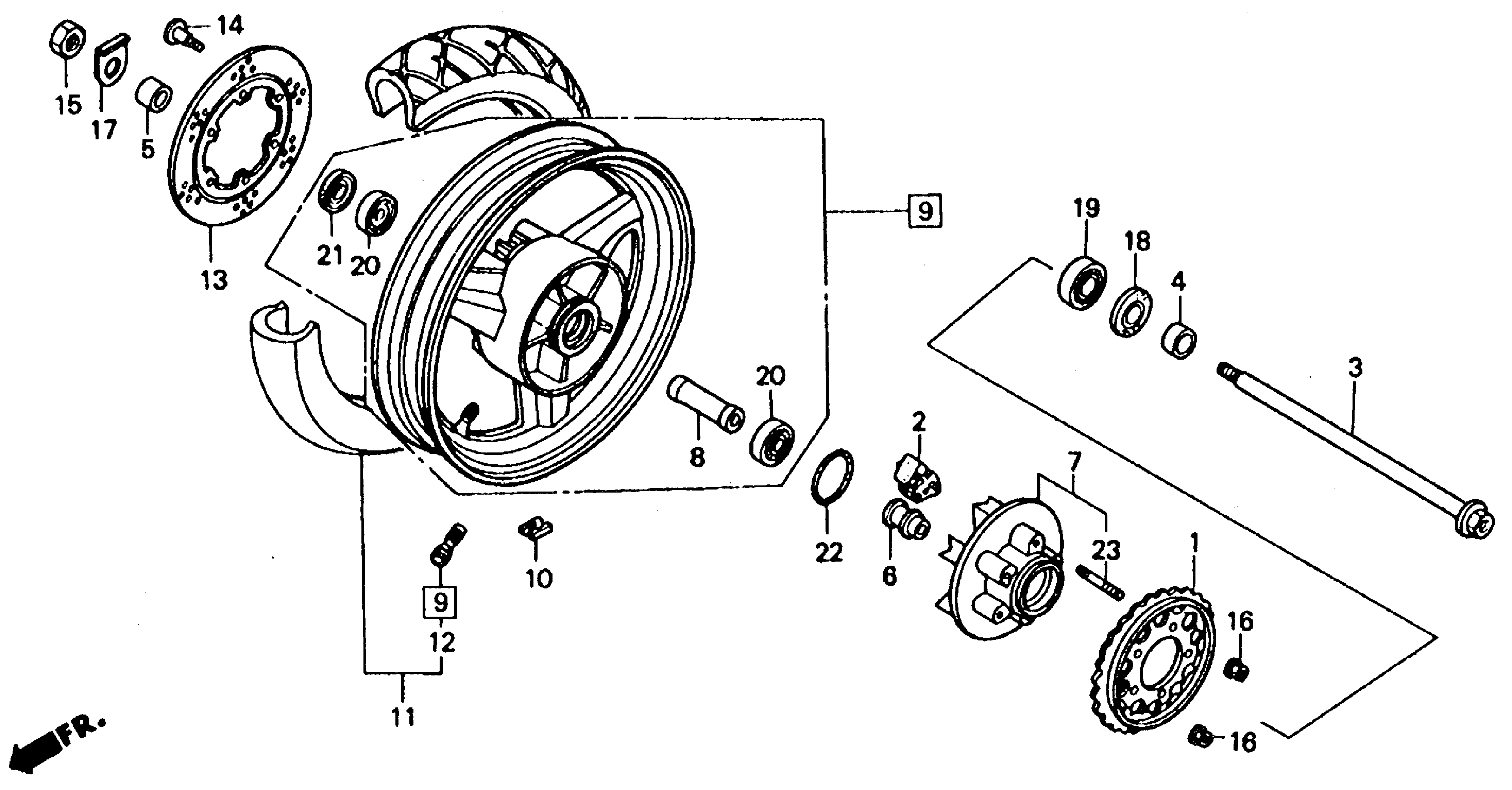

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (42T) This part replaces 41200-MG5-670.

41200-MZ2-890

Unavailable

1

SPROCKET, FINAL DRIVEN (42T) This part replaces 41200-MS2-000.

41200-MZ2-890

Unavailable

1

SPROCKET, FINAL DRIVEN (42T)

41200-MZ2-890

Unavailable

2

DAMPER, RR. WHEEL

41241-MM5-000

$13.84

3

AXLE, RR. WHEEL

42301-MM5-000

$100.43

4

COLLAR, RR. WHEEL SIDE

42311-MG5-670

$16.43

5

COLLAR, RR. BRAKE SIDE (SOURCE: VINTAGE PARTS INC.) This part replaces 42313-MS2-670.

42313-MZ1-610

Unavailable

5

COLLAR, RR. BRAKE SIDE

42313-MZ1-610

Unavailable

6

SLEEVE, RR. AXLE

42606-MS2-000

Unavailable

7

FLANGE, FINAL DRIVEN

42610-MS2-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MM5-000.

42620-MZ1-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE

42620-MZ1-000

Unavailable

9

WHEEL SET, RR. *NH196* (ROSS WHITE)

42650-MS2-305ZA

Unavailable

10

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

11

TIRE (170/60-17) This part replaces 42710-MS2-871.

42711-MS2-872

Unavailable

11

TIRE (170/60-17) This part replaces 42710-MS2-872.

42711-MS2-872

Unavailable

12

VALVE, RIM (BS)

42753-ML7-003

$12.74

12

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

13

DISK, RR. BRAKE This part replaces 43351-MS2-000.

43251-MBR-J11

$373.92

14

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

15

NUT, AXLE (18MM)

90305-KA4-003

Unavailable

16

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

17

WASHER, RR. AXLE

90559-MJ0-630

Unavailable

18

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

19

BEARING, RADIAL BALL (6305) (UU) This part replaces 91051-MAT-003.

91051-MBT-611

$34.28

19

BEARING, RADIAL BALL (6305) (UU)

91051-MBT-611

$34.28

19

BEARING, RADIAL BALL (6305) (UU) This part replaces 91051-MM5-003.

91051-MBT-611

$34.28

20

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

21

DUST SEAL (30X52X7)

91253-442-003

$13.96

22

O-RING (69X2)

91302-MS2-003

$4.13

23

BOLT, STUD (12X28)

92918-12028-0E

Unavailable
