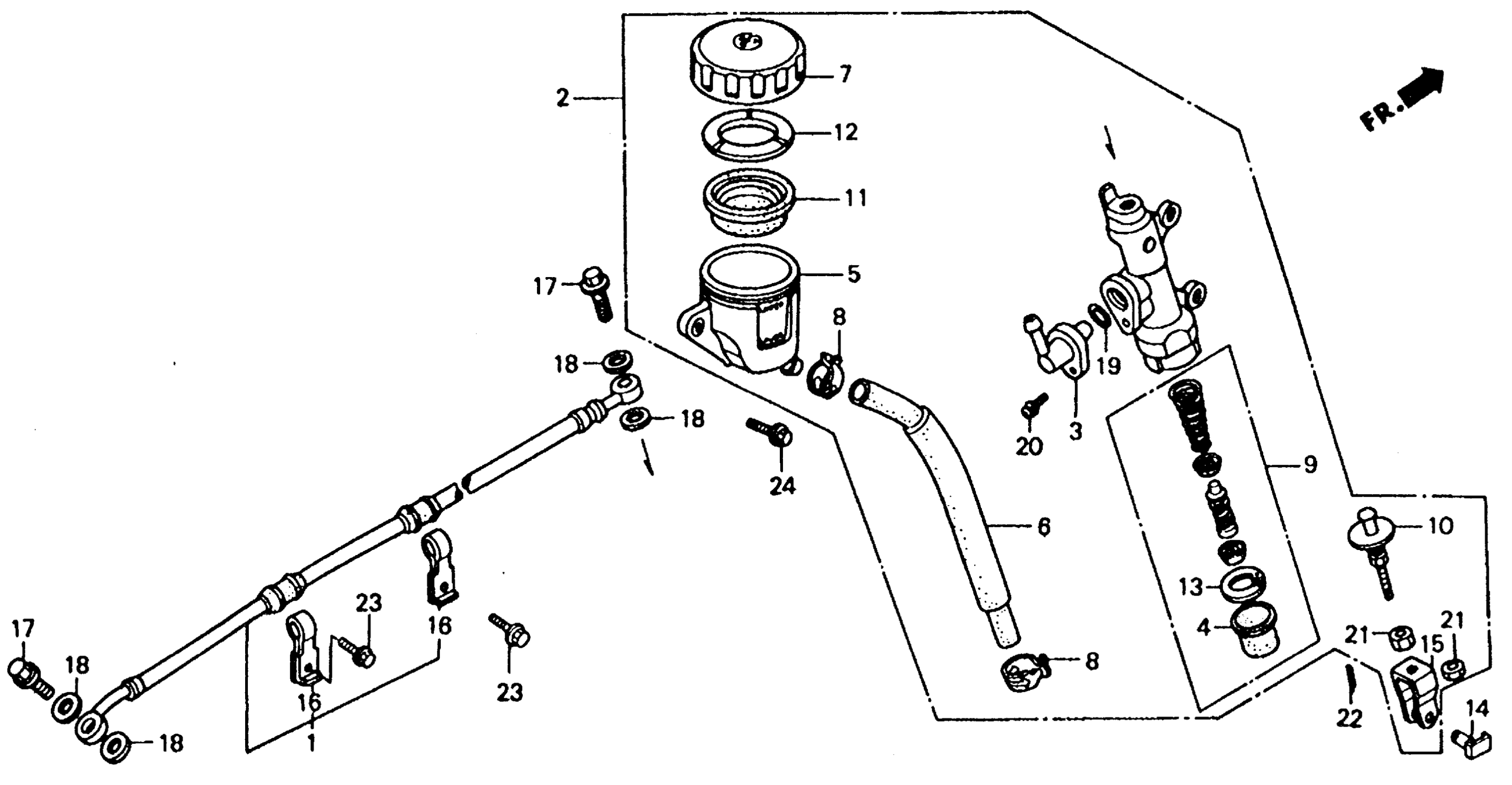

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MS2-871

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE

43500-MS2-006

Unavailable

3

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

4

BOOT

43504-MB2-006

$10.04

5

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

6

HOSE, MASTER CYLINDER

43512-MS2-006

Unavailable

7

CAP, OIL CUP

43513-MB4-672

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

9

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

9

PISTON SET, MASTER CYLINDER

43520-MJ6-315

$46.73

10

ROD, PUSH

43530-MM5-006

$27.69

11

DIAPHRAGM

45520-300-000

$9.05

12

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

13

CIRCLIP

46182-500-013

$4.90

14

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$4.24

14

PIN D, JOINT

95015-54000

$4.24

15

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

16

CLAMP, RR. BRAKE HOSE

52116-KV3-020

$4.02

17

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

17

BOLT, OIL (10X22)

90145-MS9-612

$7.54

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

O-RING (14.8X2.4)

91212-422-006

$2.56

20

SCREW-WASHER (4X12)

93893-04012-08

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

PIN, SPLIT (2.0X12)

94201-20120

$1.49

23

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

24

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
