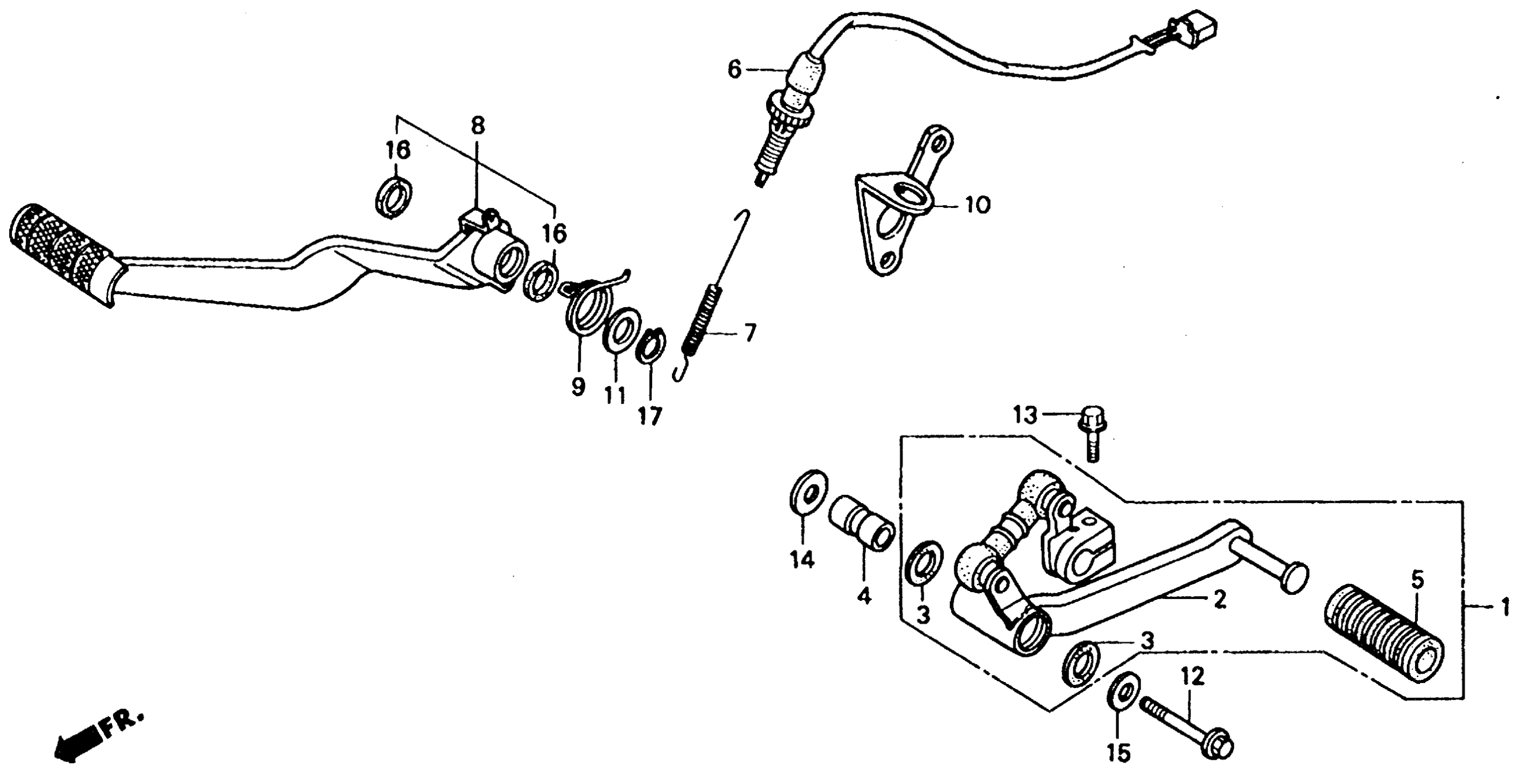

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 PEDAL Diagram

PEDAL ASSY., CHANGE (NOT AVAILABLE)

24700-MS2-000

Unavailable

PEDAL, GEARSHIFT

24705-MS2-000

Unavailable

RUBBER, DUST SEAL

24706-MK3-770

$4.48

COLLAR, CHANGE PIVOT

24725-MS2-000

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP This part replaces 35350-MM5-010.

35350-GBG-505

Unavailable

SPRING, STOP SWITCH

35357-MM5-000

Unavailable

PEDAL, BRAKE

46500-MS2-000

Unavailable

SPRING, BRAKE PEDAL

46514-MS2-000

Unavailable

STAY, STOP SWITCH

50205-MS2-000

Unavailable

WASHER, BUSH

53312-657-000

$6.70

BOLT, FLANGE (8X43) This part replaces 90108-KY1-000.

90104-KS5-000

Unavailable

BOLT, FLANGE (6X20)

90118-KY1-000

$3.16

WASHER (24X8.5)

90502-MS2-000

$3.66

WASHER (8MM)

90514-921-000

$1.49

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49
