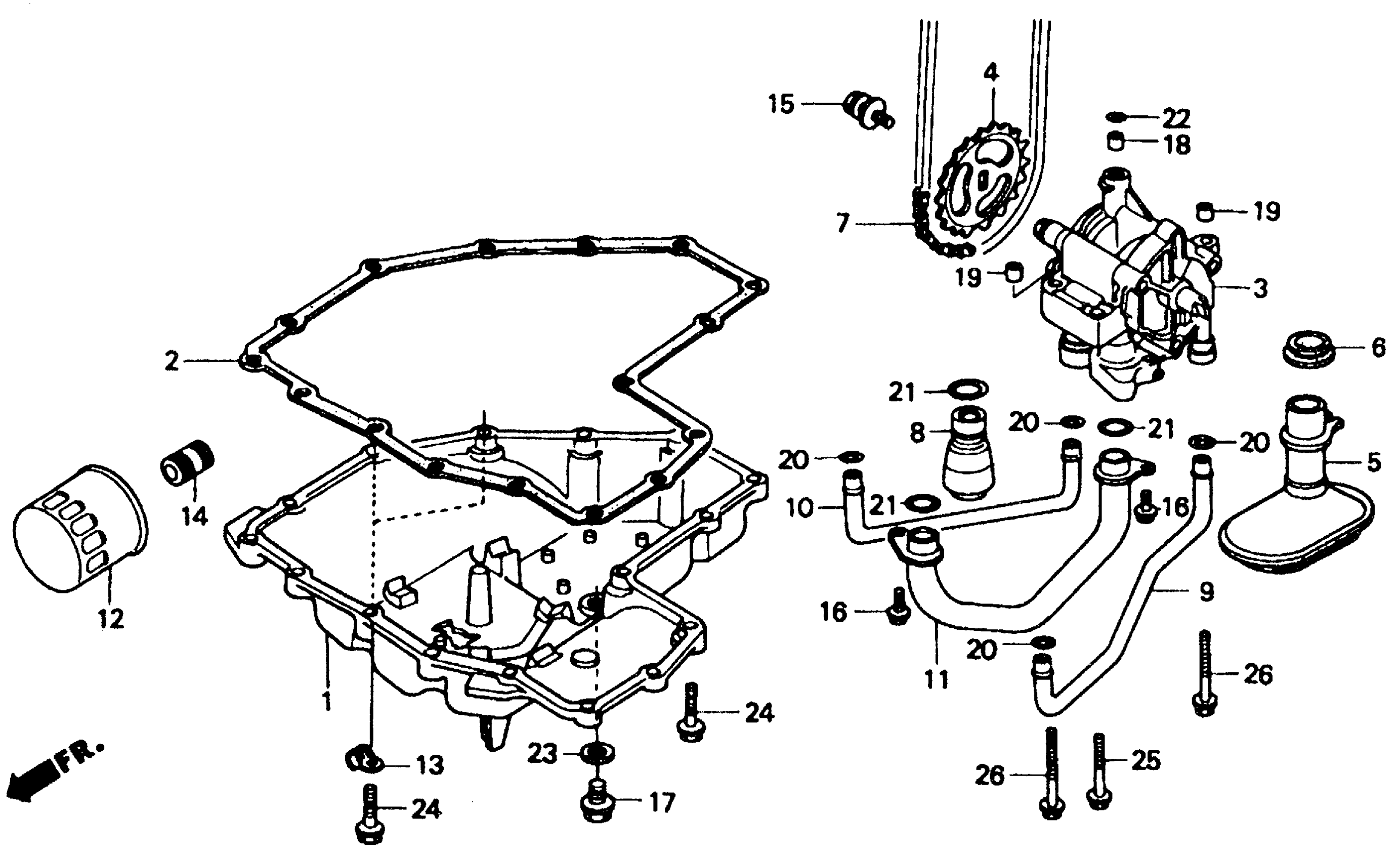

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MS2-305

Unavailable

1

PAN, OIL This part replaces 11210-MS2-610.

11210-MS2-305

Unavailable

2

GASKET, OIL PAN This part replaces 11398-MM5-000.

11398-MW7-790

Unavailable

2

GASKET, OIL PAN

11398-MW7-790

Unavailable

3

PUMP ASSY., OIL

15100-MS2-610

Unavailable

4

SPROCKET, OIL PUMP DRIVEN (37T)

15134-MM5-640

Unavailable

5

STRAINER, OIL

15153-MS2-610

Unavailable

6

GASKET, OIL STRAINER

15154-MM5-000

$6.60

7

CHAIN, OIL PUMP (62LE)

15161-MM5-003

Unavailable

8

VALVE ASSY., RELIEF

15220-MM5-000

Unavailable

9

PIPE A, OIL PASSAGE

15311-MS2-610

Unavailable

10

PIPE B, OIL PASSAGE

15312-MS2-610

Unavailable

11

PIPE C, OIL

15313-MM5-000

Unavailable

12

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

12

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-003.

15410-MFJ-D02

$15.84

12

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

13

CLAMP, WIRE

32922-MB2-000

Unavailable

14

BOSS, OIL FILTER

90019-MB0-000

$8.61

15

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

16

BOLT, SPECIAL (6MM)

90030-PG2-000

$4.43

17

BOLT, PLUG (14MM)

90081-MC7-000

$10.96

18

PIN, DOWEL (10X10)

90702-MJ4-000

$3.26

19

PIN, DOWEL (8X10)

91103-429-000

$2.56

20

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

21

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

21

O-RING (14.8X2.2)

91313-MG7-004

$3.67

22

O-RING (9X2.3) (NOK)

91313-PC9-003

$3.43

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

25

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

26

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
