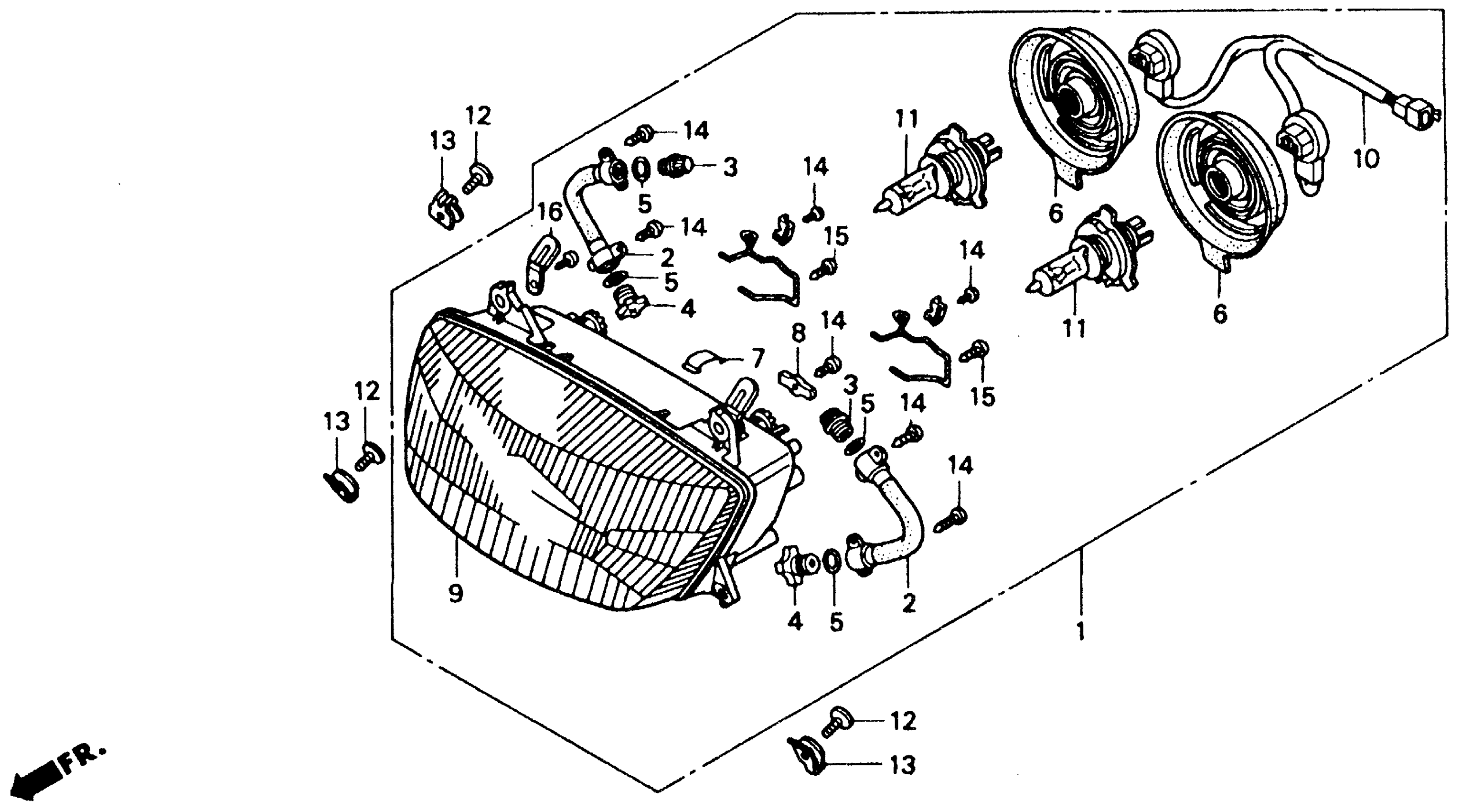

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 HEADLIGHT Diagram

HEADLIGHT ASSY. (12V 45/45W) (NOT AVAILABLE)

33100-MS2-671

Unavailable

CABLE, BEAM ADJ.

33108-MS2-611

Unavailable

GEAR, BEAM ADJUSTING

33109-MS2-611

Unavailable

CAP, BEAM ADJUSTING CABLE

33110-MS2-611

Unavailable

GASKET, SEAL

33111-MS2-611

Unavailable

COVER, RUBBER

33112-MM5-601

$16.53

CLIP, LENS HOLDER

33113-ML7-601

Unavailable

PLATE, BEAM ADJ.

33119-MS2-611

Unavailable

HEADLIGHT UNIT (NOT AVAILABLE)

33120-MS2-671

Unavailable

WIRE

33130-MS2-670

Unavailable

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-MS2-671.

34901-MS2-672

$37.46

BULB, HEADLIGHT (12V 45/45W) (STANLEY)

34901-MS2-672

$37.46

BOLT A, BUMPER This part replaces 90103-SE0-000.

90103-SE3-003

$5.84

BOLT A, BUMPER

90103-SE3-003

$5.84

WASHER, HEADLIGHT MOUNTING

90503-MS2-000

$4.96

SCREW, TAPPING (4X12)

93901-34320

$1.49

SCREW, TAPPING (4X10)

93903-34210

$1.49

CLIP, WIRE (4X50)

94591-45000

$2.92
