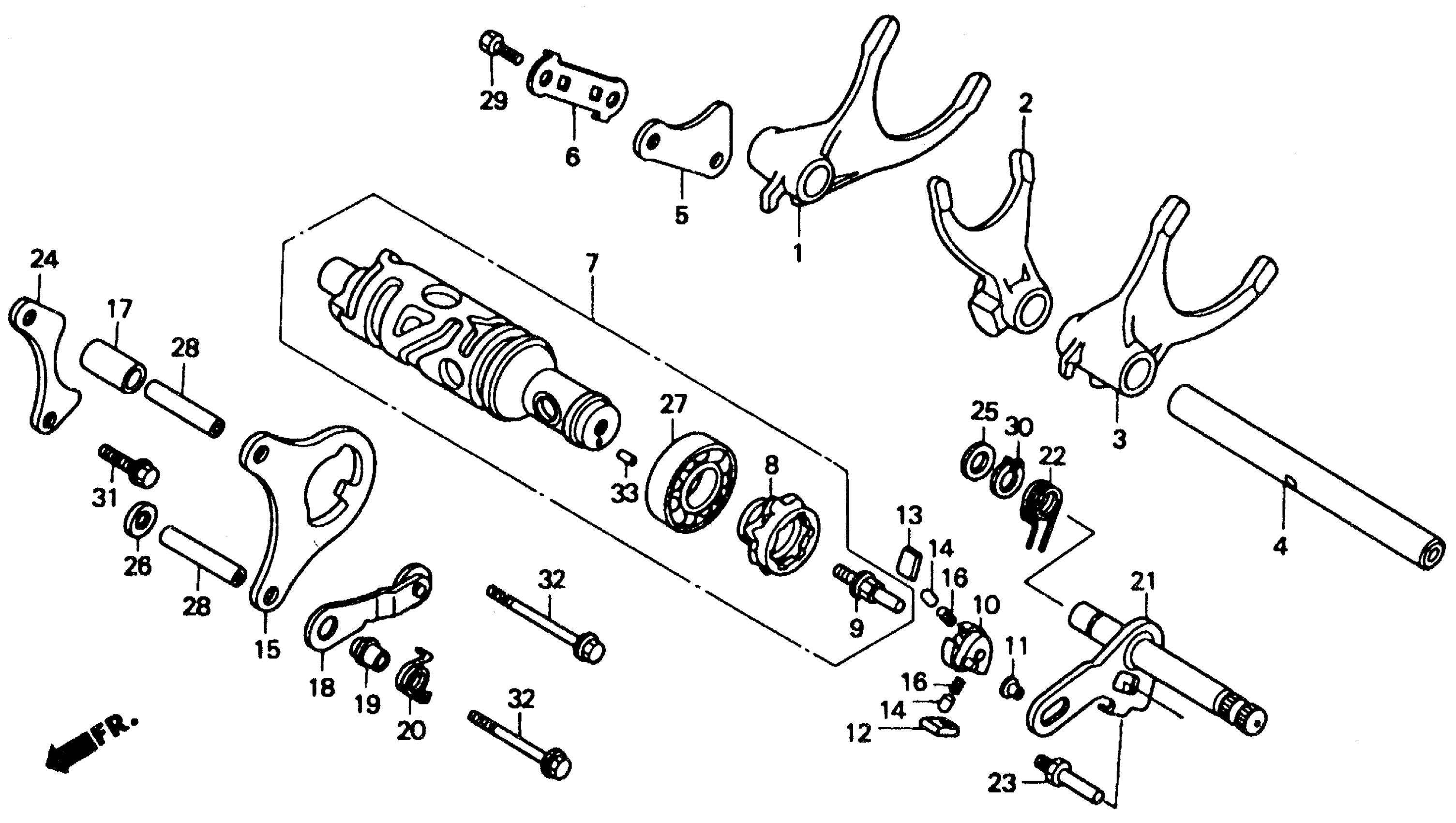

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MS2-610

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MS2-610

Unavailable

3

FORK, L. GEARSHIFT

24213-MS2-610

Unavailable

4

SHAFT, GEARSHIFT FORK

24231-MS2-610

$21.29

5

STOPPER, GEARSHIFT FORK SHAFT

24235-MS2-610

Unavailable

6

PLATE, LOCK

24236-MS2-610

Unavailable

7

DRUM, GEARSHIFT This part replaces 24310-MS2-610.

24310-MZ2-610

Unavailable

7

DRUM, GEARSHIFT

24310-MZ2-610

Unavailable

8

CENTER, GEARSHIFT DRUM This part replaces 24312-KY2-300.

24312-KY2-310

$34.28

8

CENTER, GEARSHIFT DRUM

24312-KY2-310

$34.28

9

PIN, SHIFTER

24315-HA0-000

$11.31

10

SHIFTER, DRUM This part replaces 24321-KT8-010.

24321-KT8-030

$50.12

10

SHIFTER, DRUM This part replaces 24321-KT8-020.

24321-KT8-030

$50.12

10

SHIFTER, DRUM

24321-KT8-030

$50.12

11

COLLAR, SHIFTER

24322-MM4-000

$4.76

12

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$11.88

12

PAWL A, RATCHET

24324-KA3-711

$11.88

13

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$11.88

13

PAWL B, RATCHET

24325-KA3-711

$11.88

14

PLUNGER, PAWL

24326-KBH-901

$5.42

14

PLUNGER, PAWL This part replaces 24326-KT7-000.

24326-KBH-901

$5.42

15

PLATE, GUIDE

24328-MM5-000

Unavailable

16

SPRING, PAWL PLUNGER

24329-KA3-740

$2.67

17

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.43

18

STOPPER, DRUM

24430-MM5-000

Unavailable

19

COLLAR, DRUM STOPPER

24434-KT7-000

$8.32

20

SPRING, DRUM STOPPER

24435-MM5-000

Unavailable

21

SPINDLE, GEARSHIFT

24610-MS2-610

Unavailable

22

SPRING, SHIFT RETURN

24651-KT7-000

Unavailable

23

PIN, SHIFT RETURN SPRING

24652-035-000

$3.73

24

PLATE, SHIFT DRUM BEARING SETTING

24655-MM5-000

$10.41

25

WASHER (14MM)

90451-155-000

$3.52

26

WASHER (8MM)

90485-040-000

$1.61

27

BEARING, BALL (16005) (NTN)

91008-374-003

$13.49

28

PIN, DOWEL (8X31.5)

91104-KT7-000

$4.65

29

BOLT, HEX. (6X14)

92101-06014-0A

$1.32

30

CIRCLIP, OUTER (14MM)

94510-14000

$0.93

31

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

32

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

32

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

33

ROLLER (4X8)

96220-40080

$0.46
