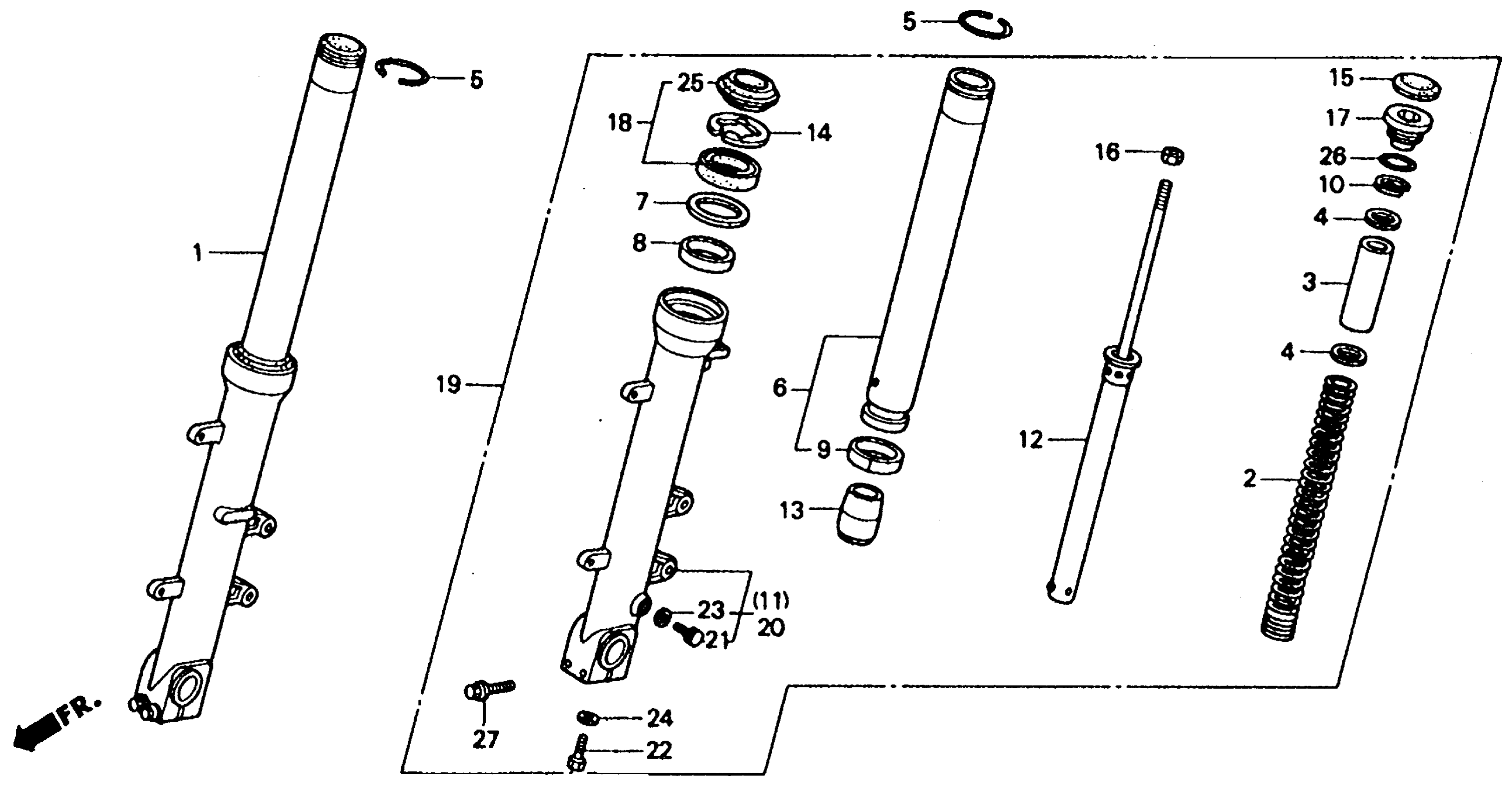

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MS2-003

Unavailable

2

SPRING, FR. FORK (SHOWA)

51401-MS2-003

Unavailable

3

COLLAR, SPRING (SHOWA)

51402-MS2-003

$16.46

4

SEAT, SPRING

51403-KF0-003

$4.58

5

RING, STOPPER

51405-MB4-003

$5.80

6

PIPE, FR. FORK (SHOWA)

51410-MS2-003

Unavailable

7

RING, BACK-UP

51412-MB4-003

$8.88

8

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.86

8

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$12.86

9

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.27

9

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$11.27

10

SEAT, SPRING (SHOWA)

51415-MS2-003

$12.07

11

CASE, R. (LOWER)

51421-MS2-003

Unavailable

12

DAMPER, FR. (SHOWA)

51430-MS2-003

Unavailable

13

PIECE, OIL LOCK

51432-MS2-003

$29.47

14

RING, OIL SEAL STOPPER

51447-KA4-711

$4.31

15

CAP, FR. FORK (SHOWA)

51449-MS2-003

Unavailable

16

NUT, LOCK (SHOWA)

51451-KS7-003

Unavailable

17

BOLT, FR. FORK (SHOWA)

51455-MS2-003

Unavailable

18

SEAL SET, FR. FORK

51490-MN8-305

$32.33

19

FORK ASSY., L. FR. (SHOWA)

51500-MS2-003

Unavailable

20

CASE, L. (LOWER)

51521-MS2-003

Unavailable

21

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

22

BOLT, SOCKET (8X27)

90116-383-721

Unavailable

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.28

24

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

25

DUST SEAL

91254-MM8-003

$16.42

26

O-RING (33.2X2.4)

91356-KF0-003

$3.59

27

BOLT, FLANGE (8X45)

96300-08045-07

Unavailable

27

BOLT, FLANGE (8X45) (SOURCE: VINTAGE PARTS INC.) This part replaces 96500-08045-07.

96300-08045-07

Unavailable
