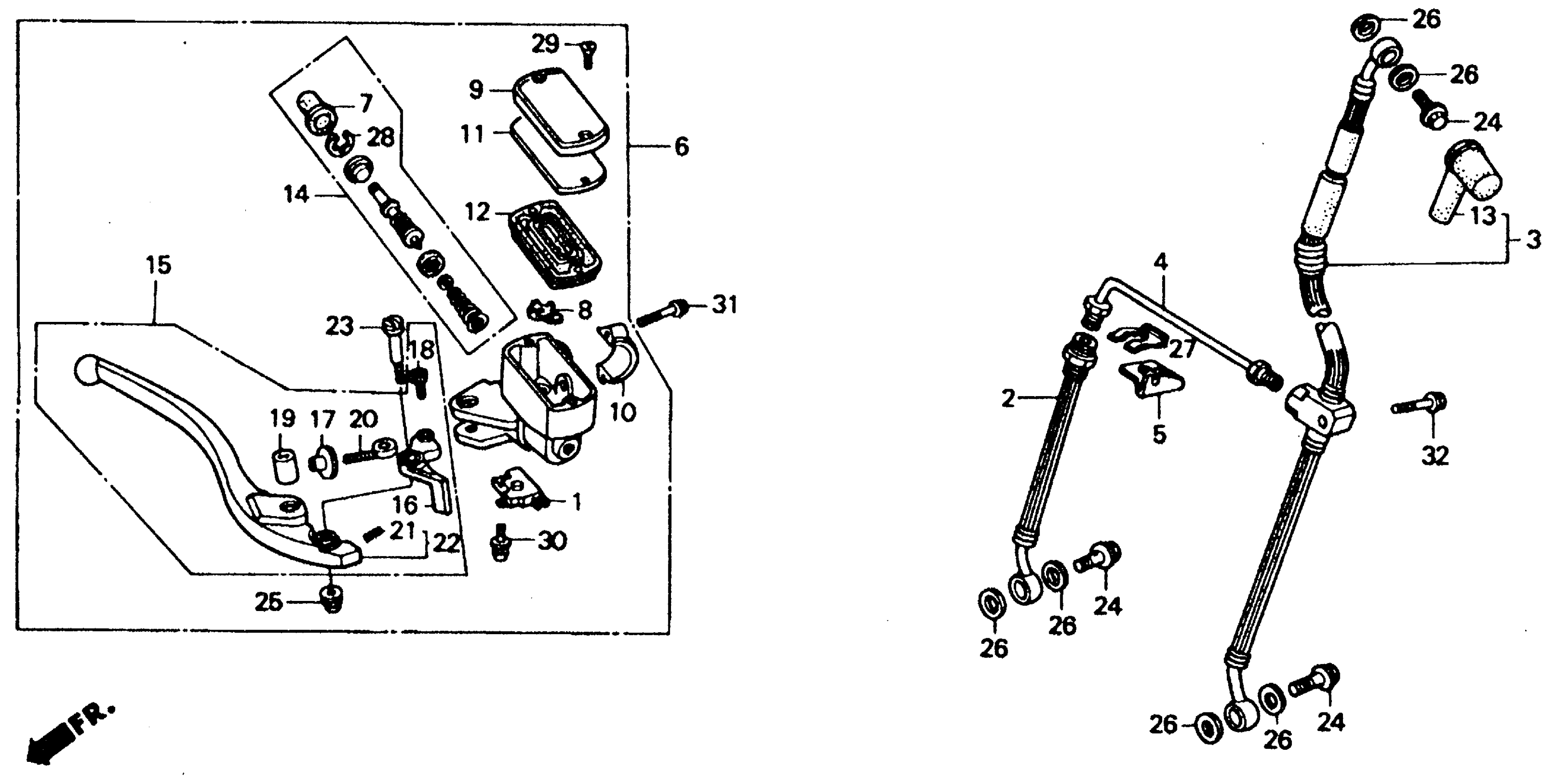

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

HOSE, R. FR. BRAKE

45124-MS2-871

Unavailable

HOSE, FR. BRAKE

45125-MS2-871

Unavailable

PIPE, FR. BRAKE (LOWER)

45127-MM5-000

Unavailable

STAY B, BRAKE HOSE

45157-MM5-000

Unavailable

MASTER CYLINDER ASSY., FR. (NISSIN) (NOT AVAILABLE)

45500-MS2-671

Unavailable

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$22.41

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER ASSY., R. HANDLE This part replaces 53170-KV0-006.

53170-MW0-006

$42.40

LEVER ASSY., R. HANDLE

53170-MW0-006

$42.40

KNOCKER, MASTER CYLINDER

53171-MJ4-701

$22.38

ADJUSTER, R. HANDLEBAR

53172-KV0-006

Unavailable

BOLT, LEVER SOCKET (5X5)

53177-KV0-006

Unavailable

JOINT, LEVER

53179-KV0-006

Unavailable

BOLT, ADJUSTING

53180-KV0-006

Unavailable

SPRING, HANDLEBAR

53181-KV0-006

$4.00

LEVER SET, R. HANDLE

53185-KV0-006

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CLIP, BRAKE HOSE

90651-KV3-000

$2.46

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
