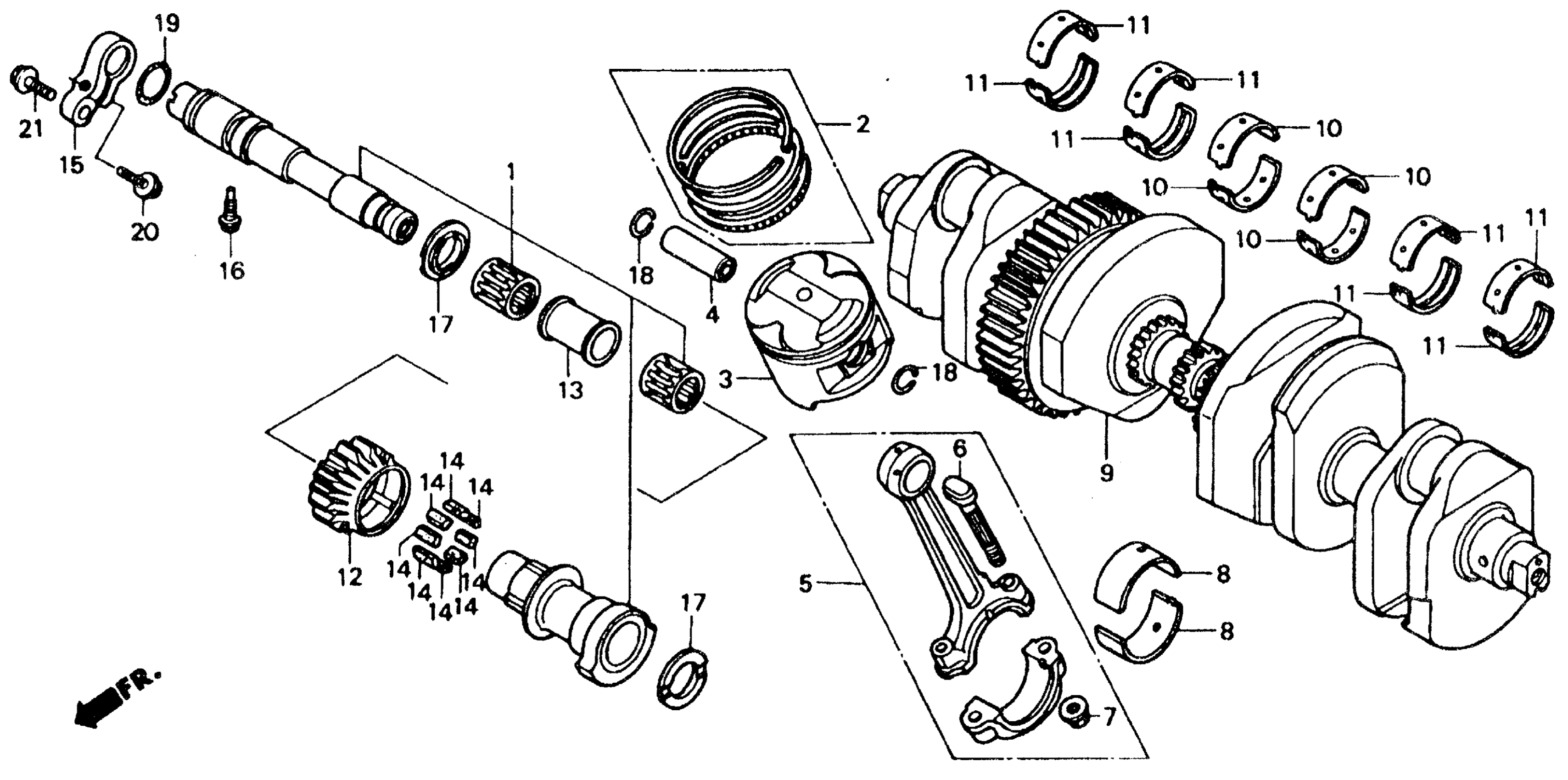

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 CRANKSHAFT Diagram

#

Description
Price

1

BALANCER SET

06130-MS2-305

Unavailable

2

RING SET, PISTON (STD)

13011-MM5-640

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13012-MM5-640

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13013-MM5-640

Unavailable

3

PISTON (STD)

13101-MS2-610

Unavailable

3

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MS2-305

Unavailable

3

PISTON (OVER SIZE) (0.50) | (Optional).

13103-MS2-305

Unavailable

4

PIN, PISTON

13111-MS2-610

Unavailable

5

ROD ASSY., CONNECTING This part replaces 13201-MS2-610.

13210-MZ1-000

Unavailable

5

ROD ASSY., CONNECTING This part replaces 13202-MS2-610.

13210-MZ1-000

Unavailable

5

ROD ASSY., CONNECTING This part replaces 13203-MS2-610.

13210-MZ1-000

Unavailable

5

ROD ASSY. D, CONNECTING

13204-MS2-610

Unavailable

5

ROD ASSY. D, CONNECTING This part replaces 13205-MS2-610.

13204-MS2-610

Unavailable

5

ROD ASSY., CONNECTING

13210-MZ1-000

Unavailable

6

BOLT, CONNECTING ROD

13213-MS2-610

$8.40

7

NUT, CONNECTING ROD

13215-ML7-000

$3.90

8

BEARING A, CONNECTING ROD (BROWN)

13224-MS2-611

$12.86

8

BEARING B, CONNECTING ROD (GREEN)

13225-MS2-611

$12.86

8

BEARING C, CONNECTING ROD (YELLOW)

13226-MS2-611

$12.86

9

CRANKSHAFT This part replaces 13300-MS2-870.

13300-MS2-871

Unavailable

9

CRANKSHAFT

13300-MS2-871

Unavailable

10

BEARING A, MAIN (14MM BROWN)

13311-MM5-003

$13.41

10

BEARING B, MAIN (14MM GREEN)

13312-MM5-003

$13.41

10

BEARING C, MAIN (14MM YELLOW)

13313-MM5-003

$13.41

10

BEARING D, MAIN (14MM PINK)

13314-MM5-003

$13.41

11

BEARING A, MAIN (17MM GREEN)

13315-MJ0-010

$9.03

11

BEARING B, MAIN (17MM YELLOW)

13316-MJ0-010

$9.71

11

BEARING C, MAIN (17MM PINK)

13317-MJ0-010

$9.71

11

BEARING D, MAIN (17MM) (BROWN) (DAIDO)

13318-MM5-004

$13.41

12

GEAR, BALANCER

13421-MM5-641

Unavailable

13

COLLAR, DISTANCE

13433-MM5-000

$13.74

14

RUBBER, DAMPER

13435-MM5-000

$2.17

15

HOLDER, BALANCER SHAFT

13436-MM5-000

$50.49

16

BOLT, SPECIAL (6X18)

90004-MM5-000

$2.03

17

WASHER, BALANCER SIDE (A)

90457-MM5-000

$4.90

18

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.28

19

O-RING (16X1.9)

91306-329-000

$2.78

20

BOLT, FLANGE (6X18)

95701-06018-00

$1.48

21

BOLT, FLANGE (8X25)

95701-08025-00

$1.62
