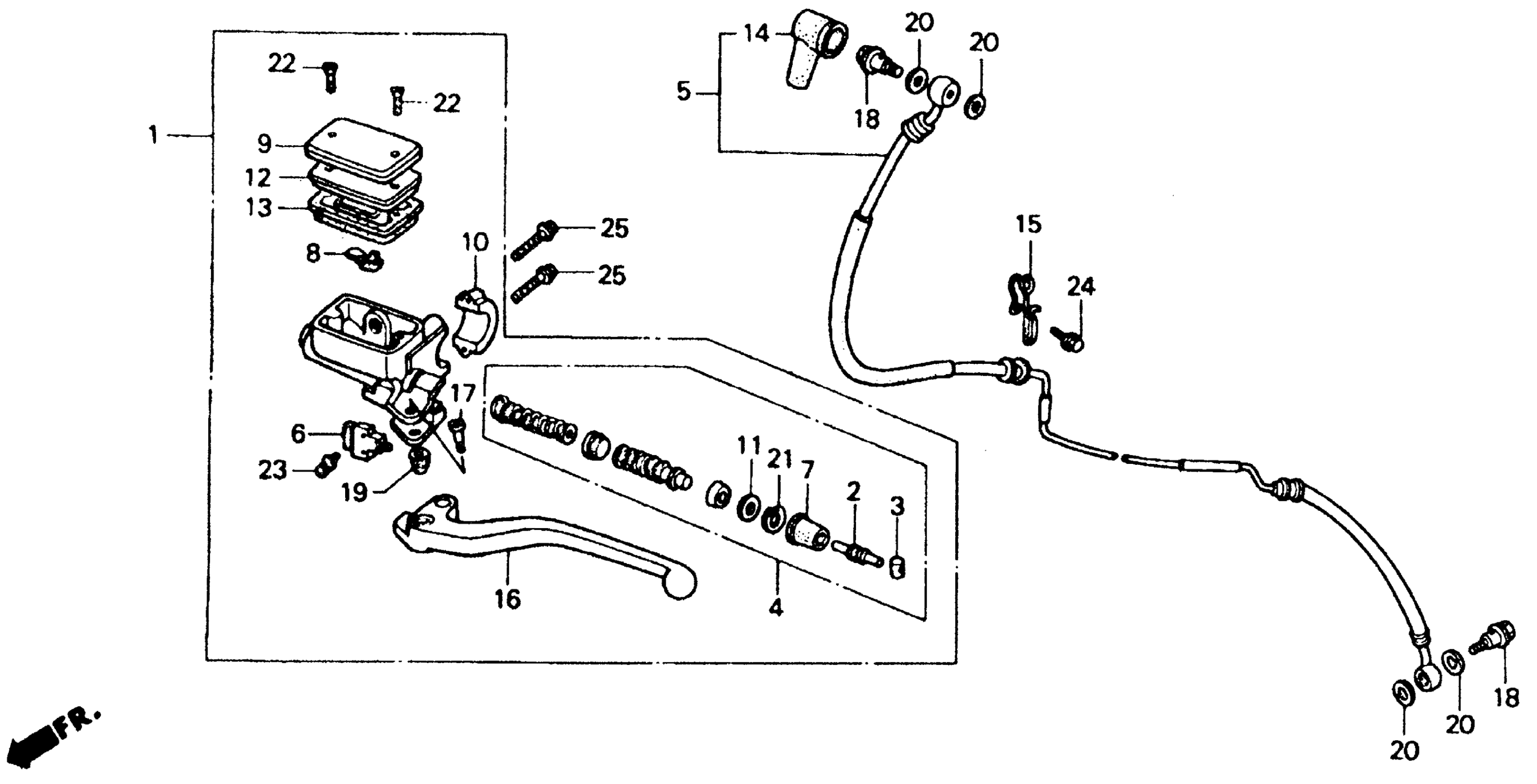

Honda CBR1000FA (91) MOTORCYCLE, JPN, VIN# JH2SC240-MM100001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH

22880-MM5-016

Unavailable

2

ROD, PUSH

22884-MB0-006

$20.66

3

BUSH

22885-MB0-006

$12.95

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

5

PIPE, CLUTCH

22900-MS2-000

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

7

BOOT

45504-410-003

$12.16

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$22.41

9

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

10

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

11

PLATE, STOPPER

45518-MB0-006

$1.84

12

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

13

DIAPHRAGM

45520-MM5-006

$15.12

14

BOOT, MASTER CYLINDER

45522-422-000

$8.68

15

CLAMP, CLUTCH HOSE

50401-MM5-000

Unavailable

16

LEVER, L. HANDLE

53178-MM5-006

$21.90

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

NUT, CAP (6MM)

90201-415-000

$2.05

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

22

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

23

SCREW-WASHER (4X12)

93893-04012-07

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

24

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
