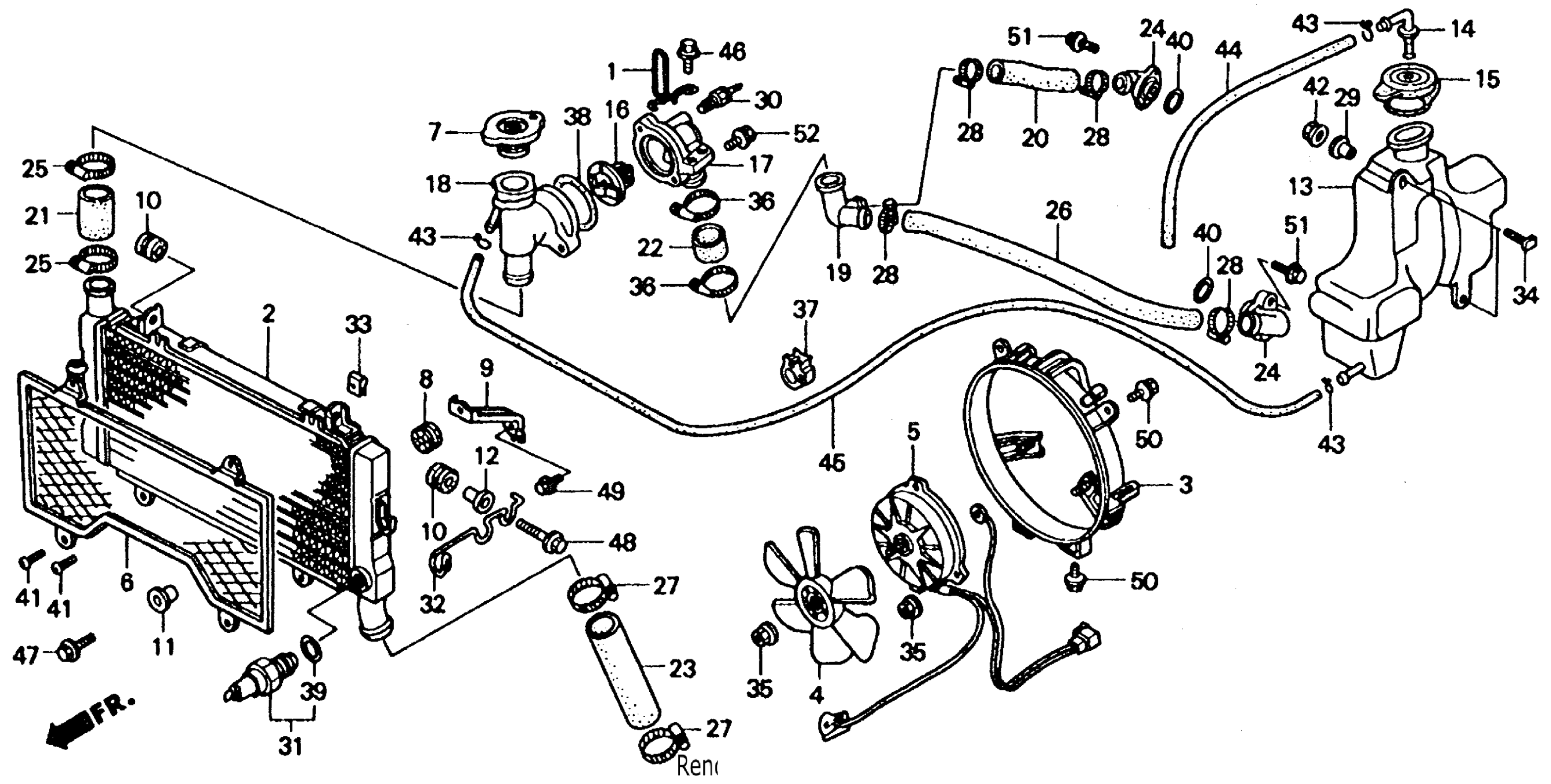

Honda CBR1000FA (90) MOTORCYCLE, JPN, VIN# JH2SC240-LM000008 TO JH2SC240-LM002425 RADIATOR Diagram

#

Description
Price

2

RADIATOR

19010-MS2-003

Unavailable

3

SHROUD

19015-MS2-671

Unavailable

4

FAN, COOLING (TOYO)

19020-MM5-003

Unavailable

5

MOTOR, FAN This part replaces 19030-MM5-901.

19030-MM5-902

Unavailable

5

MOTOR, FAN

19030-MM5-902

Unavailable

6

GRILLE, RADIATOR

19032-MS2-000

Unavailable

7

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$46.15

8

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

9

STAY, RADIATOR

19051-MS2-000

Unavailable

10

RUBBER, RADIATOR SETTING (B)

19052-HA2-000

Unavailable

11

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.29

12

COLLAR, RADIATOR SETTING (B)

19056-HA2-000

$6.52

13

TANK, RADIATOR RESERVE This part replaces 19101-MM5-000.

19101-MM5-010

Unavailable

13

TANK, RADIATOR RESERVE

19101-MM5-010

Unavailable

14

ADAPTER, RESERVE CAP

19106-GE2-000

$10.85

15

CAP, RESERVE TANK

19108-KK4-000

Unavailable

16

THERMOSTAT

19300-MG9-000

$49.71

17

CASE, THERMOSTAT

19311-MS2-000

Unavailable

18

FILLER, NECK

19312-MS2-000

Unavailable

19

JOINT, WATER HOSE

19501-MS2-000

$31.47

20

HOSE B, RADIATOR

19502-MS2-000

Unavailable

21

HOSE, RADIATOR (UPPER)

19503-MS2-000

Unavailable

22

HOSE C, RADIATOR

19504-MS2-000

Unavailable

23

HOSE, RADIATOR (LOWER)

19505-MS2-670

Unavailable

24

JOINT, WATER HOSE

19508-MS2-000

Unavailable

25

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.46

26

HOSE A, RADIATOR

19509-MS2-000

Unavailable

27

CLAMP B, RADIATOR HOSE

19515-MS2-670

Unavailable

28

CLAMP, HOSE (24-32MM) This part replaces 19516-ML7-690.

19516-ML7-691

$13.22

28

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

29

COLLAR, TURN SIGNAL SETTING

33613-KG1-610

Unavailable

30

THERMO UNIT (DENSO)

37750-PC1-004

$74.92

31

SWITCH ASSY., THERMO

37760-MR1-003

$66.01

32

GUIDE, SPEEDOMETER CABLE

44835-MS2-000

Unavailable

33

NUT, CLIP (4MM)

64527-KE8-700

Unavailable

34

BOLT, RESERVE TANK

90118-MM5-000

Unavailable

35

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

36

CLAMP, HOSE

90653-GHB-660

$10.12

37

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

38

O-RING (54X2)

91307-MB0-003

$3.08

39

O-RING (13.5X1.4)

91307-PH7-660

$2.80

39

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.80

40

O-RING (24X3) (ARAI)

91315-KE8-003

$3.40

41

SCREW, PAN (4X14)

93500-04014-0B

$0.90

42

NUT, FLANGE (5MM)

94050-05000

$1.21

43

CLIP, TUBE (C11)

95002-70000

$1.51

44

BULK HOSE, VACUUM (7X3000) (7X535)

95005-70003-30M

$29.04

45

BULK HOSE, VACUUM (7X3000) (7X910)

95005-70003-30M

$29.04

46

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

47

BOLT, FLANGE (6X25)

95701-06025-07

$1.66

48

BOLT, FLANGE (6X28)

95701-06028-00

$1.68

49

BOLT, FLANGE (8X20)

95701-08020-00

$1.72

50

BOLT, FLANGE (6X10)

96001-06010-00

$1.50

51

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

52

BOLT, FLANGE (6X25)

96001-06025-00

$2.49
