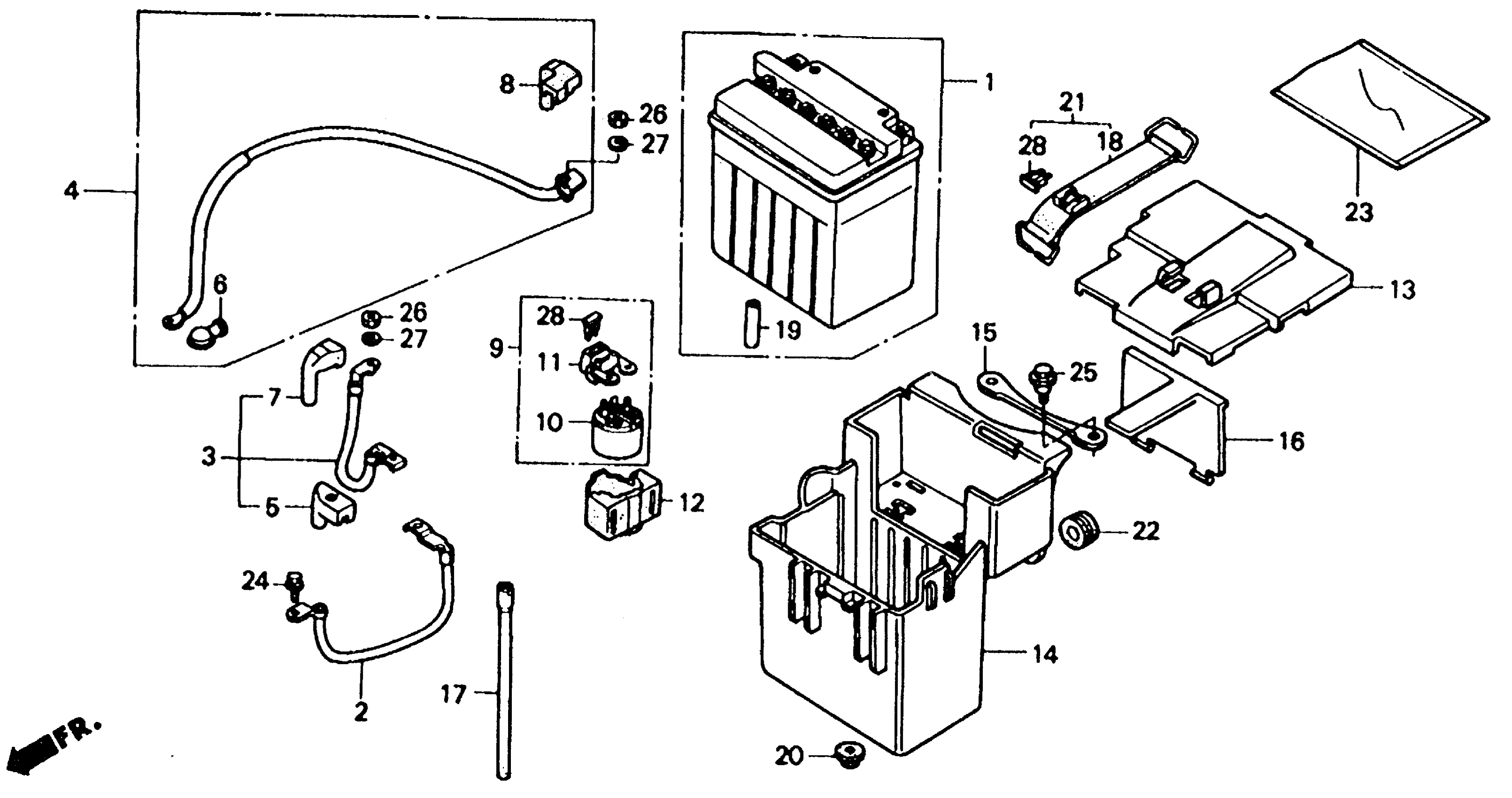

Honda CBR1000FA (90) MOTORCYCLE, JPN, VIN# JH2SC240-LM000008 TO JH2SC240-LM002425 BATTERY Diagram

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-672.

31500-MM5-675AH

Unavailable

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-674.

31500-MM5-675AH

Unavailable

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-675.

31500-MM5-675AH

Unavailable

BATTERY (YB14L-B2) (YUASA)

31500-MM5-675AH

Unavailable

CABLE ASSY., GROUND

32350-MM5-000

Unavailable

CABLE, STARTER MAGNETIC BATTERY This part replaces 32401-MM5-000.

32401-MW7-600

Unavailable

CABLE, STARTER MAGNETIC BATTERY

32401-MW7-600

Unavailable

CABLE, STARTER MOTOR

32410-MM5-000

Unavailable

COVER, BATTERY

32411-MM5-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER B, MAGNETIC SWITCH

32416-MF5-000

$5.21

COVER, MAGNETIC SWITCH

32416-MM5-300

Unavailable

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$127.45

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

HOLDER ASSY., FUSE

35855-MG7-751

$37.26

RUBBER, SHOCK

35856-MF5-751

$10.03

LID A, BATTERY BOX

50324-MS2-000

Unavailable

BOX, BATTERY

50325-MS2-000

Unavailable

PLATE, BATTERY BOX SETTING

50327-MS2-000

Unavailable

LID B, BATTERY BOX

50328-MS2-000

Unavailable

TUBE, BATTERY

50329-MM5-000

Unavailable

BAND, BATTERY

50330-MM5-000

Unavailable

TUBE A, BATTERY This part replaces 50331-MM5-000.

50331-MW7-000

Unavailable

TUBE A, BATTERY

50331-MW7-000

Unavailable

GROMMET, BATTERY BOX

50332-MM5-000

Unavailable

BAND ASSY., BATTERY

50335-MM5-000

Unavailable

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

BOLT, FLANGE (6X8) (NOT AVAILABLE)

90014-460-000

Unavailable

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

NUT, HEX. (6MM)

94002-06080-0S

$1.49

WASHER, SPRING (6MM)

94111-06800

$1.49

FUSE, BLADE (30A)

98200-33000

$1.49
