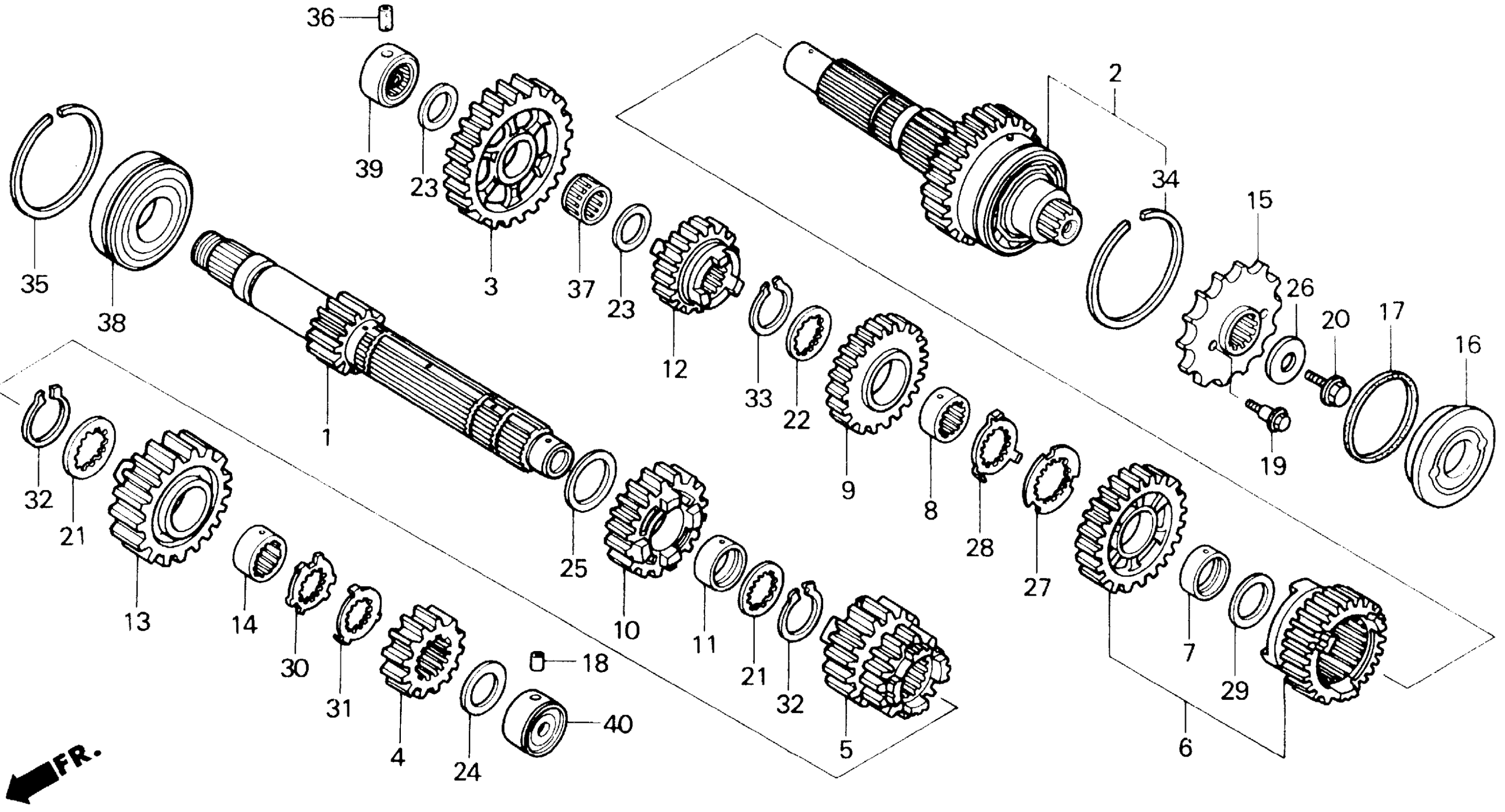

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T)

23211-MM5-000

Unavailable

2

COUNTERSHAFT (NOT AVAILABLE)

23220-MM5-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T)

23421-MM5-000

Unavailable

4

GEAR, MAINSHAFT SECOND (15T) This part replaces 23431-MM5-000.

23431-MZ2-610

Unavailable

4

GEAR, MAINSHAFT SECOND (15T)

23431-MZ2-610

Unavailable

5

GEAR, MAINSHAFT THIRD & FOURTH (17T/19T) This part replaces 23451-MM5-000.

23451-MM5-640

Unavailable

5

GEAR, MAINSHAFT THIRD & FOURTH (17T/19T)

23451-MM5-640

Unavailable

6

GEAR SET, COUNTERSHAFT THIRD & SIXTH (28T/23T)

23460-MM5-305

Unavailable

7

COLLAR (30X12.7)

23462-MM5-000

Unavailable

8

COLLAR, SPLINE (30X12.7)

23463-MM5-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)

23481-MM5-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (23T) This part replaces 23491-MM5-000.

23491-MM5-640

Unavailable

10

GEAR, MAINSHAFT FIFTH (23T)

23491-MM5-640

Unavailable

11

COLLAR (28X13)

23495-MM5-000

$23.00

12

GEAR, COUNTERSHAFT FIFTH (27T) (NOT AVAILABLE)

23501-MM5-000

Unavailable

13

GEAR, MAINSHAFT SIXTH (22T) This part replaces 23511-MM5-000.

23511-MM5-640

Unavailable

13

GEAR, MAINSHAFT SIXTH (22T)

23511-MM5-640

Unavailable

14

COLLAR, SPLINE (28X15.9)

23512-MM5-000

Unavailable

15

SPROCKET, DRIVE (17T)

23801-438-000

Unavailable

16

GUIDE, RING

23820-MM5-000

Unavailable

17

RING, DAMPER

23821-MB6-000

Unavailable

18

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

19

BOLT, FLANGE (6X20)

90020-438-000

$3.35

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, SPLINE (28X34X1.5)

90451-MM5-000

$5.62

22

WASHER, THRUST SPLINE (30MM)

90452-MM5-000

Unavailable

23

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

23

WASHER A, THRUST (22MM)

90456-ML7-000

$5.62

23

WASHER C, THRUST (22MM)

90457-ML7-000

$5.62

24

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

25

WASHER, THRUST (28MM)

90458-729-920

$5.34

26

WASHER (10.2MM)

90459-438-000

$5.83

27

WASHER, THRUST (30MM)

90461-MM5-000

Unavailable

28

WASHER, LOCK (30MM)

90462-MM5-000

Unavailable

29

WASHER, THRUST (30X36X1)

90463-MM5-000

Unavailable

30

WASHER, SPLINE (28X1.6)

90464-MM5-000

Unavailable

31

WASHER, LOCK (28MM) This part replaces 90465-MM5-000.

90465-MM5-010

Unavailable

31

WASHER, LOCK (28MM)

90465-MM5-010

Unavailable

32

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

33

CIRCLIP (30MM)

90604-MM5-000

$4.48

34

RING, SNAP (72MM)

90605-MM5-000

$9.05

35

RING, SNAP (62MM)

90606-MM5-000

$8.66

36

PIN, BEARING SETTING

90705-MM5-000

Unavailable

37

BEARING, NEEDLE (22X26X13)

91001-MB6-680

$34.56

38

BEARING, RADIAL BALL (28X62X16) This part replaces 91004-MM5-000.

91004-MM5-003

Unavailable

39

BEARING, NEEDLE (22MM) (TOYO)

91022-MM5-003

$59.07

40

BEARING, NEEDLE (22MM) This part replaces 91023-MM5-003.

91023-MM5-641

$27.05

40

BEARING, NEEDLE (22MM)

91023-MM5-641

$27.05
