Partiron

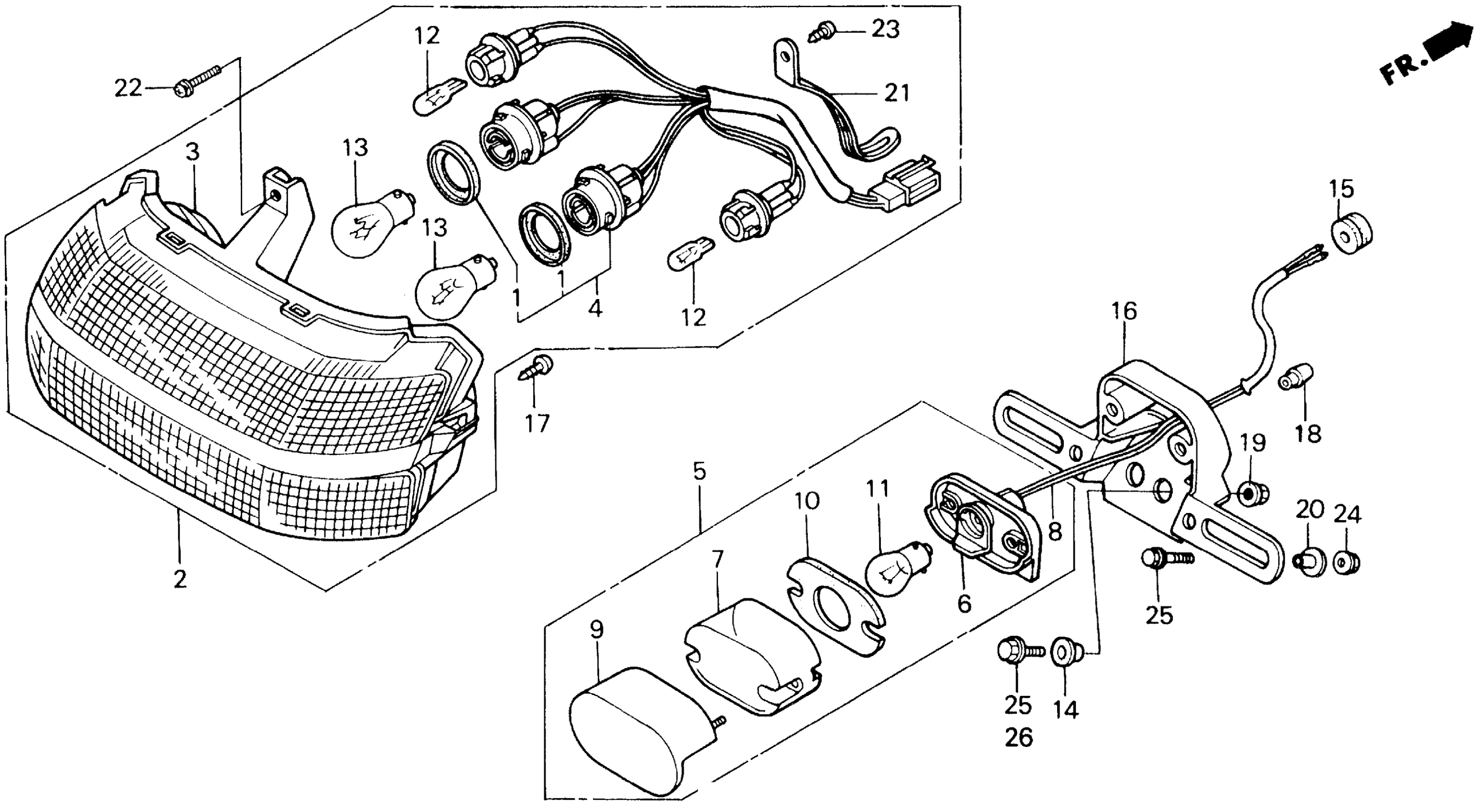

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 TAILLIGHT Diagram

#

Description
Price

1

GASKET, SEAL

33518-SA2-003

$4.38

2

TAILLIGHT UNIT *PB184MU* (GRANITE BLUE METALLIC-U)

33701-MM5-671ZD

Unavailable

2

TAILLIGHT *NH131M* This part replaces 33701-MM5-671ZF.

33701-MM5-671ZC

Unavailable

2

TAILLIGHT UNIT *PB184MU* (GRANITE BLUE METALLIC-U) This part replaces 33701-MM5-671ZG.

33701-MM5-671ZD

Unavailable

3

TAILLIGHT *NH131M* (STARLIGHT SILVER METALLIC) This part replaces 33703-MM5-671ZA.

33703-MM5-671ZC

Unavailable

3

TAILLIGHT *NH131M* (STARLIGHT SILVER METALLIC)

33703-MM5-671ZC

Unavailable

3

TAILLIGHT *PB184MU* (GRANITE BLUE METALLIC-U)

33703-MM5-671ZD

Unavailable

3

TAILLIGHT *NH131M* (STARLIGHT SILVER METALLIC) This part replaces 33703-MM5-671ZF.

33703-MM5-671ZC

Unavailable

3

TAILLIGHT *PB184MU* (GRANITE BLUE METALLIC-U) This part replaces 33703-MM5-671ZG.

33703-MM5-671ZD

Unavailable

4

SOCKET, TAILLIGHT

33705-MM5-671

Unavailable

5

LIGHT ASSY., LICENSE (12V 8W)

33720-ML7-670

Unavailable

6

BASE

33721-MB2-003

Unavailable

7

LENS, LICENSE

33722-MB1-013

$19.68

8

WIRE, LICENSE

33725-ML7-670

Unavailable

9

COVER, LICENSE LIGHT

33727-ME4-671

$27.26

10

GASKET, LENS

33729-MB1-003

$6.30

11

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

11

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

12

BULB, WEDGE BASE (12V5W2CP) (194) (STANLEY)

34901-671-671

$3.11

13

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

14

COLLAR, SEAT SETTING

77103-GC4-000

$3.95

15

GROMMET, CABLE

80102-323-000

Unavailable

16

BRACKET, NUMBER PLATE

84701-ML7-670

$41.31

17

SCREW, TAPPING (4X16) (PO) This part replaces 90102-SA4-000.

93913-14480

$1.49

17

SCREW, TAPPING (4X16)

93913-14480

$1.49

18

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

19

NUT, FLANGE (6MM)

90302-187-000

$2.39

20

WASHER (6X20)

90502-VA4-640

$3.23

21

CLIP, WIRE HARNESS (4X100)

91416-PA1-000

$5.56

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

23

SCREW, TAPPING (5X8)

93901-35020

Unavailable

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

26

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
