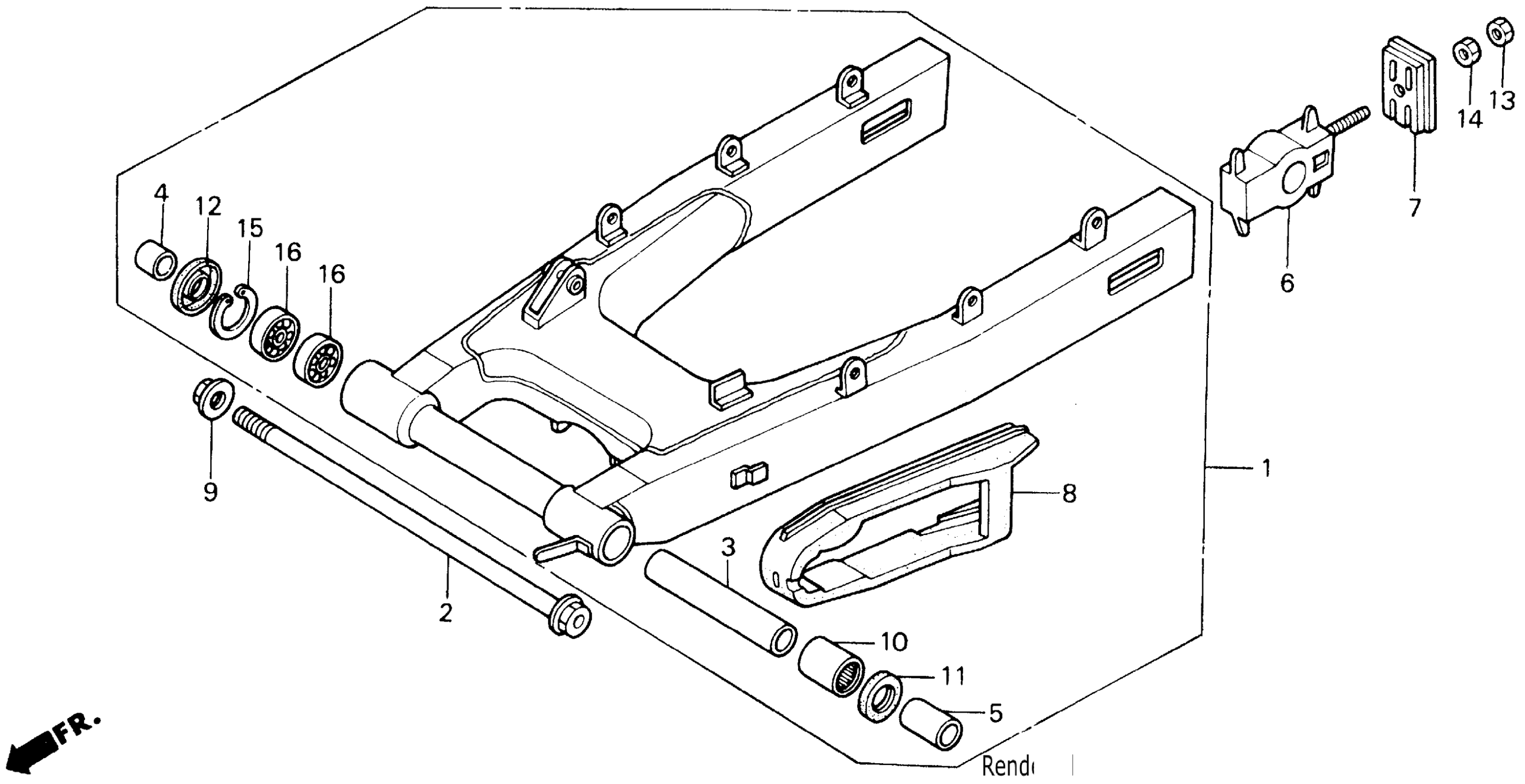

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 SWINGARM Diagram

SWINGARM ASSY., RR.

52100-MM5-000

Unavailable

BOLT, RR. SWINGARM PIVOT

52101-MM5-000

Unavailable

COLLAR, PIVOT DISTANCE

52102-MM5-000

Unavailable

COLLAR B, SWINGARM PIVOT

52105-MM2-670

Unavailable

COLLAR B, PIVOT

52106-ML4-000

Unavailable

COLLAR, CHAIN TENSIONER This part replaces 52120-MJ0-000.

52120-MJ0-010

Unavailable

COLLAR, CHAIN TENSIONER

52120-MJ0-010

Unavailable

PLATE, CHAIN TENSIONER

52121-MJ0-000

$22.28

SLIDER, CHAIN

52170-MM5-000

Unavailable

NUT, U (14MM)

90305-GE8-003

$3.86

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

BEARING, NEEDLE

91071-MJ0-004

$36.85

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-003.

91205-965-003

$5.80

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
