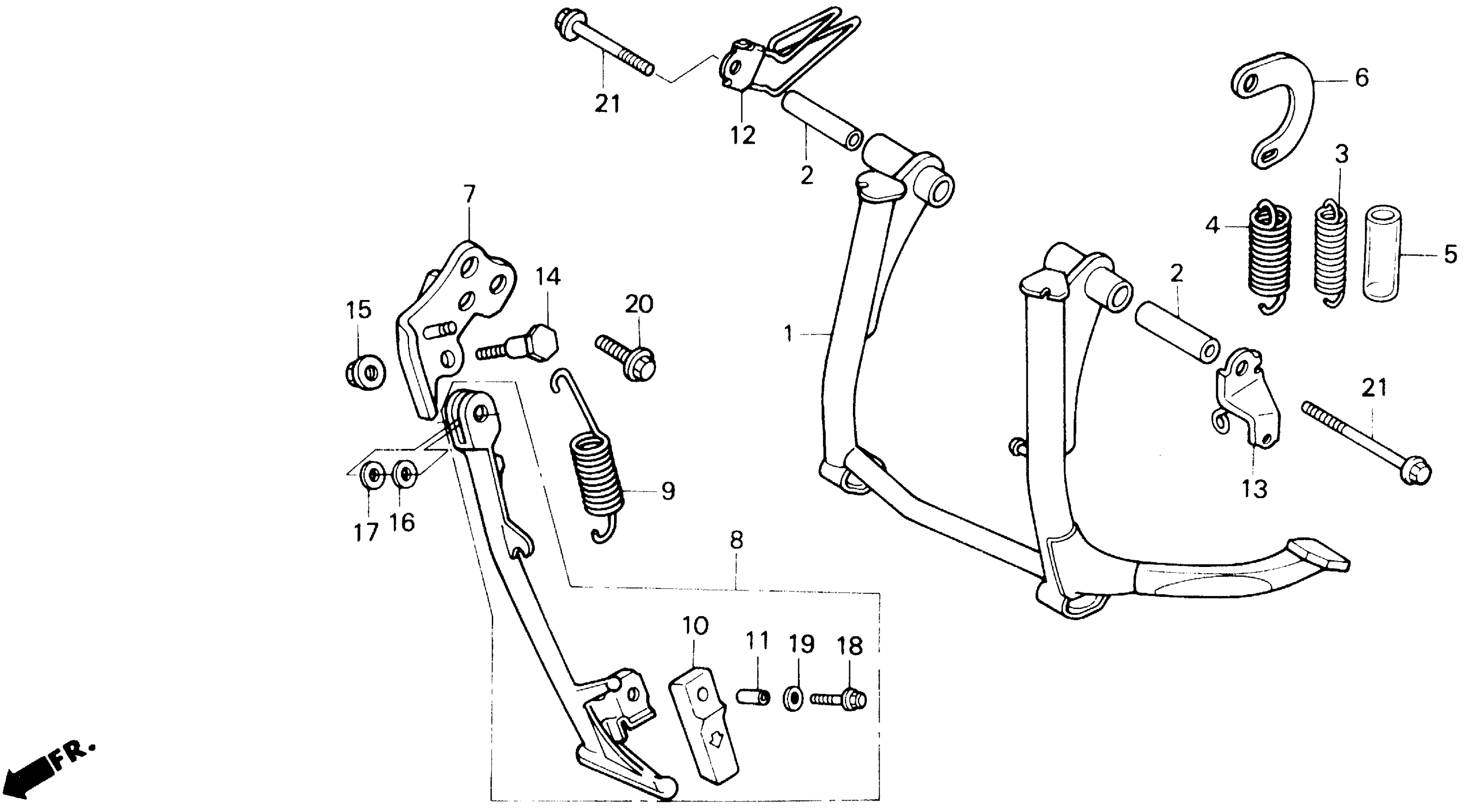

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 STAND Diagram

#

Description
Price

1

STAND, MAIN This part replaces 50500-MM5-000.

50500-MM5-640

Unavailable

1

STAND, MAIN

50500-MM5-640

Unavailable

2

COLLAR, MAIN STAND This part replaces 50503-MM5-000.

50503-MS2-000

Unavailable

2

COLLAR, MAIN STAND

50503-MS2-000

Unavailable

4

SPRING ASSY., MAIN STAND This part replaces 50522-MM5-000.

50525-MM4-000

Unavailable

4

SPRING ASSY., MAIN STAND

50525-MM4-000

Unavailable

5

TUBE (19X23)

50523-MM4-000

$8.41

6

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

7

BRACKET, SIDE STAND

50535-MM5-000

Unavailable

8

BAR ASSY., SIDE STAND

50540-MM5-010

Unavailable

9

SPRING ASSY., SIDE STAND This part replaces 50541-MM4-000.

50542-MZ2-000

$16.18

9

SPRING ASSY., SIDE STAND This part replaces 50541-MM5-010.

50542-MZ2-000

$16.18

10

RUBBER, STAND

50548-356-700

$10.50

11

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

12

GUIDE, DRAIN TUBE

64381-MM5-000

Unavailable

13

STAY, L. PIVOT COVER (LOWER)

64391-MM5-000

Unavailable

14

BOLT, SIDE STAND PIVOT

90108-ML7-610

Unavailable

15

NUT, SIDE STAND

90203-MF9-710

$3.67

16

WASHER, THRUST (24X13)

90501-MF9-710

Unavailable

17

WASHER, THRUST (24X10)

90502-MF9-710

Unavailable

18

BOLT, CAP (6X25)

92501-06025-0G

$2.92

19

WASHER, PLAIN (6MM)

94101-06700

$1.49

20

BOLT, FLANGE (10X20)

95701-10020-07

$2.14

20

BOLT, FLANGE (10X20) This part replaces 95801-10020-07.

95701-10020-07

$2.14

21

BOLT, FLANGE (10X75)

95801-10075-08

$2.28
