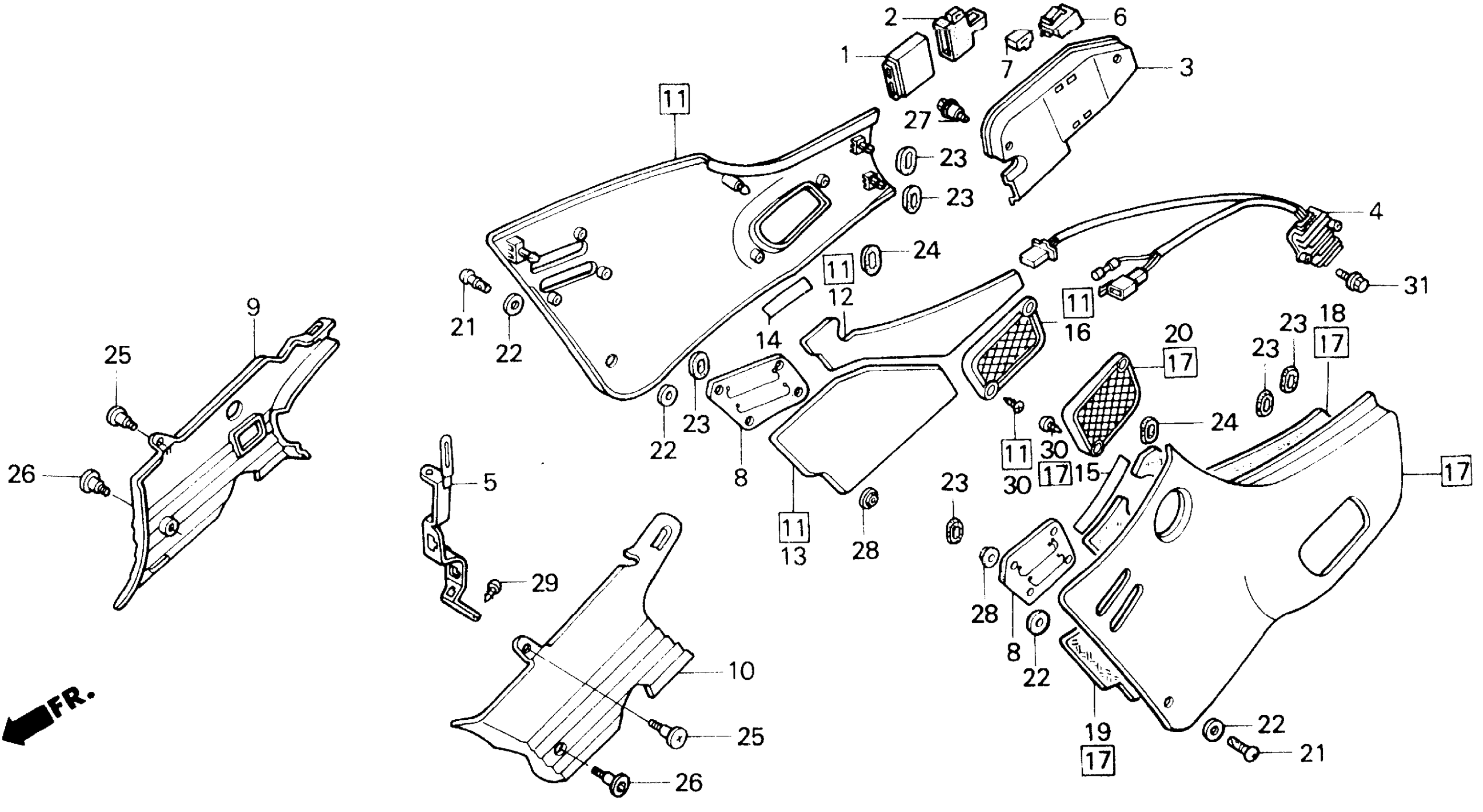

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 SIDE COVER Diagram

#

Description
Price

1

UNIT, SPARK (OKI)

30400-MM5-006

Unavailable

2

SUSPENSION, SPARK UNIT

30405-MM5-000

Unavailable

3

COVER, ELECTRIC

30406-MM5-000

Unavailable

4

RECTIFIER ASSY., REGULATE (SHINDENGEN)

31600-MM5-000

Unavailable

5

HOLDER B, CONNECTOR

32501-MM5-770

Unavailable

6

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

7

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

8

GUARD, SIDE COWL HEAT

64113-MM5-000

Unavailable

9

COVER, R. PIVOT (NOT AVAILABLE)

64280-MM5-000

Unavailable

10

COVER, L. PIVOT

64290-MM5-000

Unavailable

11

COWL, R. SIDE *NH233M* (NEW YORKER SILVER) (NOT AVAILABLE)

64300-MM5-000ZK

Unavailable

11

COWL, R. SIDE *PB205MU* (SHADOW BLUE)

64300-MM5-000ZL

Unavailable

12

MAT, R. HEAT GUARD

64301-MM5-320

Unavailable

13

MAT B, R. HEAT GUARD This part replaces 64302-MM5-300.

64302-MM5-310

Unavailable

13

MAT B, R. HEAT GUARD

64302-MM5-310

Unavailable

14

SHEET, R. HEAT GUARD

64305-MM5-300

Unavailable

15

SHEET, L. HEAT GUARD

64306-MM5-300

Unavailable

16

MESH, R. SIDE COWL *NH233M* (NEW YORKER SILVER)

64325-MM5-000ZK

Unavailable

16

MESH, R. SIDE COWL *PB205MU* (SHADOW BLUE)

64325-MM5-000ZL

Unavailable

17

COWL, L. SIDE *NH233M* (WOL) (NEW YORKER SILVER) (NOT AVAILABLE)

64350-MM5-000ZK

Unavailable

17

COWL, L. SIDE *PB205MU* (WOL) (SHADOW BLUE) (NOT AVAILABLE)

64350-MM5-000ZL

Unavailable

18

MAT, L. HEAT GUARD This part replaces 64351-MM5-320.

64351-MM5-330

Unavailable

18

MAT, L. HEAT GUARD

64351-MM5-330

Unavailable

19

MAT B, L. HEAT GUARD This part replaces 64352-MM5-300.

64352-MM5-310

Unavailable

19

MAT B, L. HEAT GUARD

64352-MM5-310

Unavailable

20

MESH, L. SIDE COWL *NH233M* (NEW YORKER SILVER)

64355-MM5-000ZK

Unavailable

20

MESH, L. SIDE COWL *PB205MU* (SHADOW BLUE)

64355-MM5-000ZL

Unavailable

21

STUD (6X14)

64508-ML7-000

Unavailable

22

RETAINER (6MM) This part replaces 64509-KE8-700.

64509-KE8-701

$2.46

23

GROMMET, SIDE COVER

83551-MA6-000

$3.35

24

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

25

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.78

26

SCREW, PAN (6X14)

90107-MM5-000

$5.04

27

BOLT, FLANGE (6MM)

90111-187-000

$5.59

28

WASHER, SPECIAL (6MM)

90407-952-300

$2.95

29

SCREW, TAPPING (5X8)

93901-25010

$1.49

30

SCREW, TAPPING (4X12)

93903-34310

$1.49

31

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
