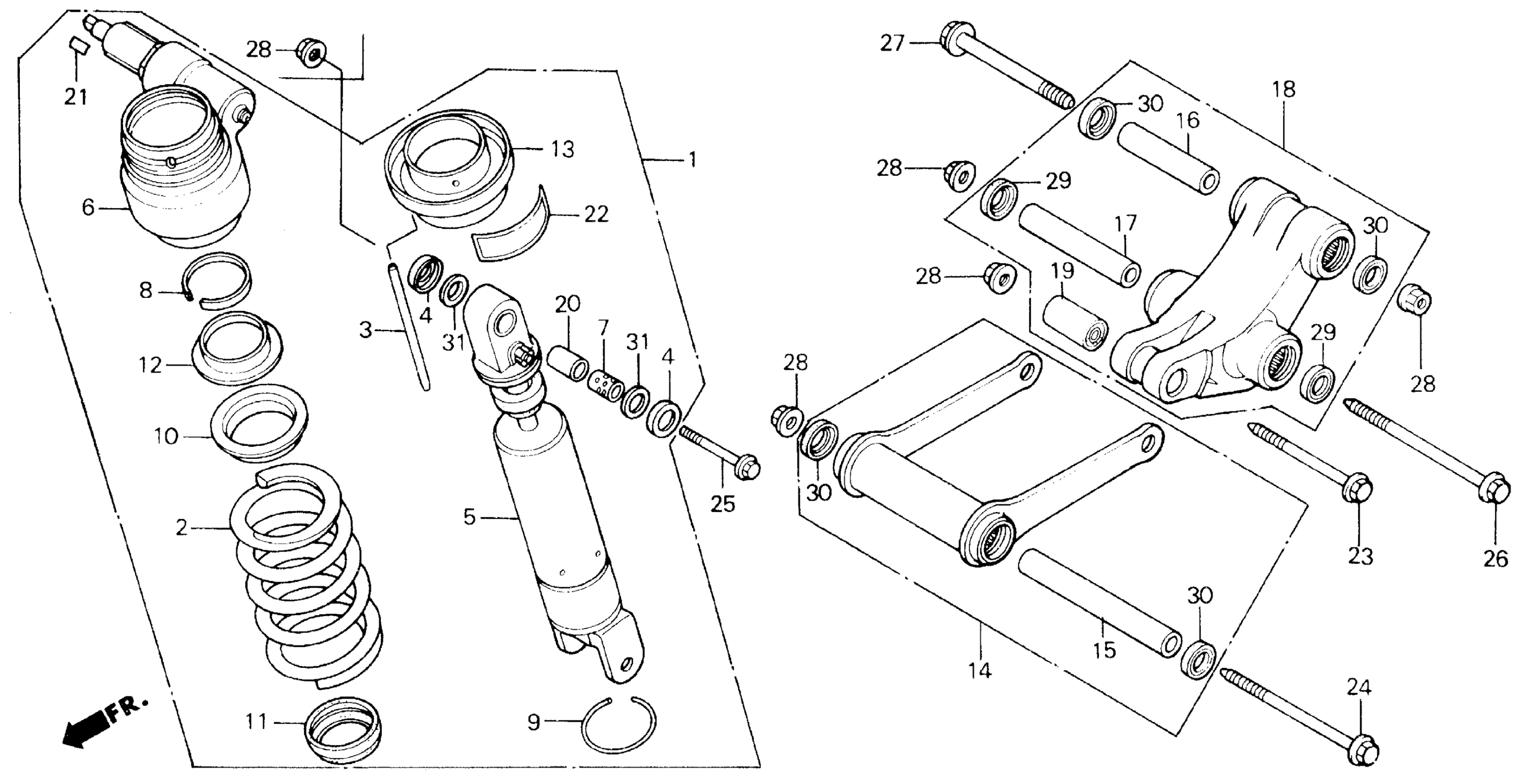

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA)

52400-MM5-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER (SHOWA)

52401-MM5-003

Unavailable

3

PIPE, DRAIN (NOT AVAILABLE)

52405-KB7-003

Unavailable

4

CAP, DUST SEAL

52406-KB7-003

$6.48

5

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-MM5-003

Unavailable

6

ADJUSTER, SPRING (SHOWA)

52420-MM5-003

Unavailable

7

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

8

GROMMET (SHOWA)

52454-MM5-003

Unavailable

9

RING, STOPPER (SHOWA)

52455-MM5-003

Unavailable

10

SEAT B, SPRING (SHOWA)

52456-MM5-003

Unavailable

11

DUST SEAL (SHOWA)

52457-MM5-003

Unavailable

12

SEAT, SPRING (SHOWA)

52458-MM5-003

Unavailable

13

SEAT C, SPRING (SHOWA)

52459-MM5-003

Unavailable

14

ROD ASSY., SHOCK CONNECTING

52460-MM5-000

Unavailable

15

COLLAR, CONNECTING ROD PIVOT

52462-MM5-000

Unavailable

16

COLLAR, CUSHION ARM PIVOT

52463-KM3-000

Unavailable

17

COLLAR, CONNECTING ROD (LOWER)

52463-MB2-700

Unavailable

18

ARM ASSY., SHOCK ABSORBER

52470-MM5-000

Unavailable

19

BUSH, SHOCK ABSORBER

52485-KE8-003

Unavailable

20

COLLAR, BUSH

52486-ML7-003

Unavailable

21

LABEL (SHOWA)

87503-MM5-003

Unavailable

22

LABEL, RR. DAMPER This part replaces 87516-KY7-911.

87516-MBL-610

$4.31

22

LABEL, RR. DAMPER This part replaces 87516-ML6-771.

87516-MBL-610

$4.31

23

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

23

BOLT, FLANGE (10X62) This part replaces 90109-KE8-003.

90101-MBB-000

$4.04

24

BOLT, UBS (10X141)

90154-KE7-000

$5.43

25

BOLT, FLANGE (10X47)

90153-KV0-000

Unavailable

26

BOLT, FLANGE (10X113)

90181-KE7-000

$13.77

27

BOLT, FLANGE (10X95)

90154-KW7-870

Unavailable

27

BOLT, FLANGE (10X95) This part replaces 90187-MG7-003.

90154-KW7-870

Unavailable

28

NUT, AXLE (10MM)

90304-GA6-003

$2.89

29

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

30

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

30

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56

31

DUST SEAL B

91351-KB7-003

$3.49
